WST002
SAINTBOND
Specifications:
Size | Length of module | QTY of bearing frame | Actual length(m) |
3X8 | 4+4 | 3 | 8 |
3X10 | 5+5 | 3 | 10 |
3X12 | 5.8+5.8 | 3 | 11.6 |
3X15 | 5+5+5 | 4 | 15 |
3X16 | 5.8+5+5 | 4 | 15.8 |
3X18 | 5.8+5.8+5.8 | 4 | 17.4 |
3X20 | 5+5+5+5 | 5 | 20 |
3X21 | 5.8+5+5+5 | 5 | 20.8 |
3X22 | 5.8+5+5+5.8 | 5 | 21.6 |
3X24 | 5.8+5.8+5.8+5.8 | 5 | 23.2 |
1.According to customer's requirements, the length & width of the platform can be customized, but the transport method should be changed accordingly.
2.Based on the different country’s truck limits, we can also customize the specific truck scale by the defined axle load.
Description:

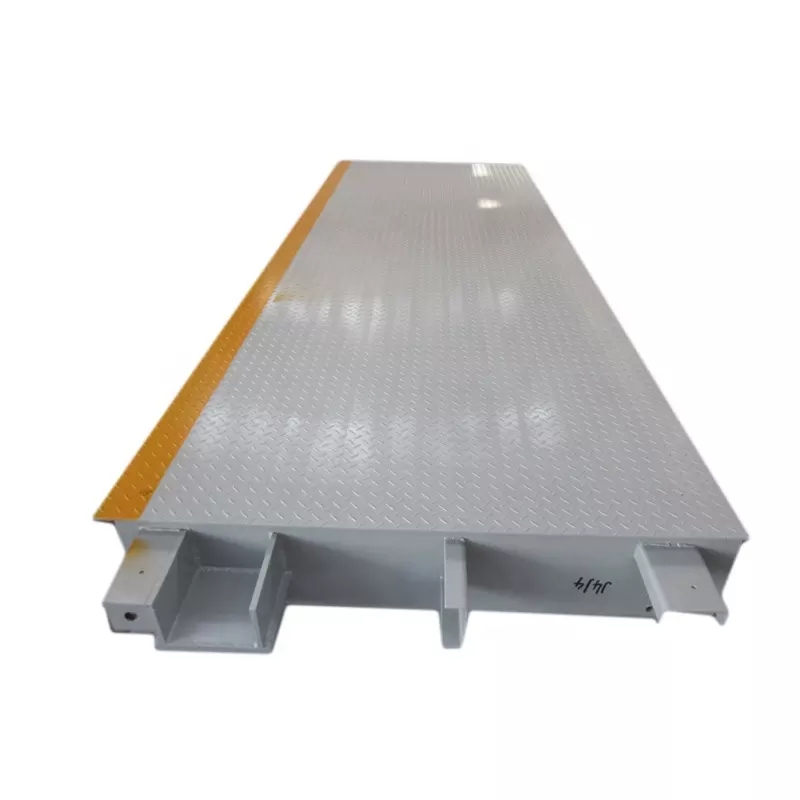

1:TS-T series truck scale are the newest products which is suitable for container shipment. The scale is robotically welded, machine-fixtured and has the highest quality paint finish available in the industry. Orthotropic ribs add torsional rigidity for off-center loading.it is capable of handling high volumes of traffic over a long service life. with the features of easy mounting and economical transportation cost and so on.
2:Lower shipping cost
The U rib is low but very thick, so we can get power module with low structure, you can put 2 pcs 3x12m TS-T into a 20 feet container. The freight charge TS-T saved for you will allow you to buy another truck scale from China again.
3.Easy to install or move
The TS-T is designed by module, it is easy to install or move and can saving a lot of Euros on labor cost.
You only need to assembly the module and bearing frame, then put the platform into the foundation pit.
1:A ramp as a option, you can install you truck scale with pitless, the ramp is easy to move and reuse. That can reduce you foundation cost.
2:Hand rails to assure your equipment's safety and keep your truck scale in a good status.
There are always some people who do not obey the rules, turn on the shallowpit platform, this will damage the bumper and affact the accuracy, maybe some heavy truck is huge, the driver couldn’t see the marge of the weighbridge clearly,often drive out of the platform, Caused the accident. We can provide a hand rails to avoid these happen.
Applications:
1.Weighing
2.Net weight/tare
3.Weight accumulation
Competitive Advantage:
1.We develop this export style structure, suitable for container transportation, and becomes the most popular export style structures in China market.
2.Our engineer has the unique designing ideas for this structure that the other imitators cannot imitate, which makes our truck scales with the best ratio between the quality and price.
3.Easy installation, robust structure.
