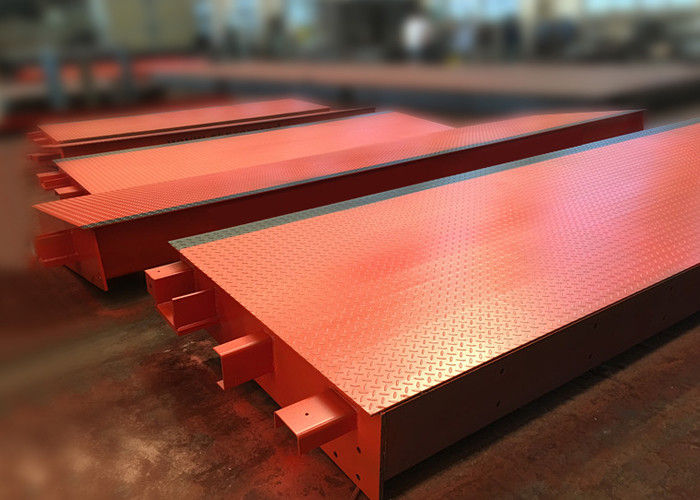

WST001 Truck Scales Weighing Systems Vehicle Truck Scale

Specifications:

Size	Length of module	QTY of Module	Load cell Qty.
3X6	1.5x6m	2	4
3X8	1.5x4m	4	6
3X9	1.5x4.5m	4	6
3X10	1.5x5m	4	6
3X12	1.5x6m	4	6
3X15	1.5x5m	6	8
3X16	1.5x5.33m	6	8
3X18	1.5x6m	6	8



1. Weighing Capacity: 10T-200T

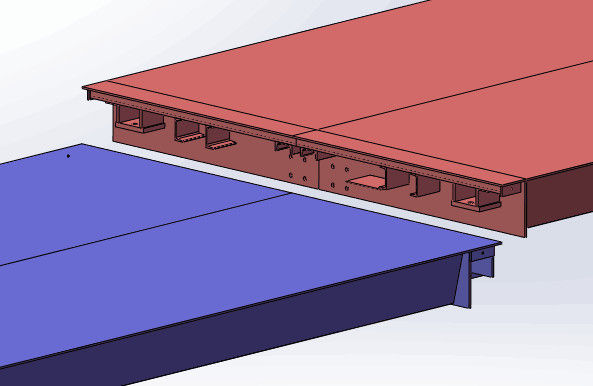

2. Structure: U-shape beams

3. Thickness of smooth plate (8-12mm)



Chequer plate optional

4. Painting: Anti rust and anti corrosion painting

5. Accuracy class: OIML(III)

6. Safe Overload: 150%

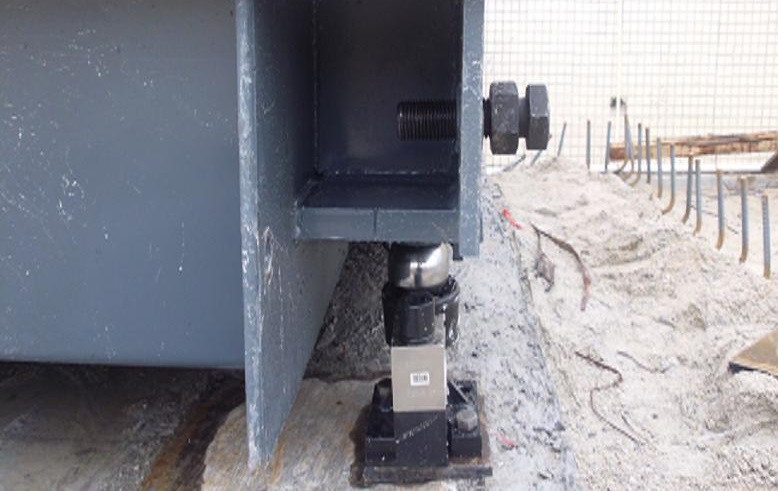

7. Load cells: Keli, Zemic or Saintbond Load Cell;

8. With indicator: Yaohua A9P

9. All the screws and tools used for installation has been included in the price

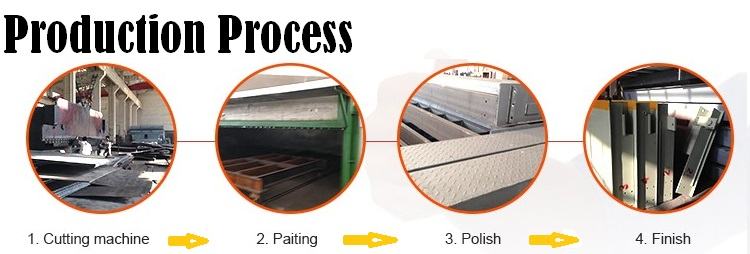

Description:

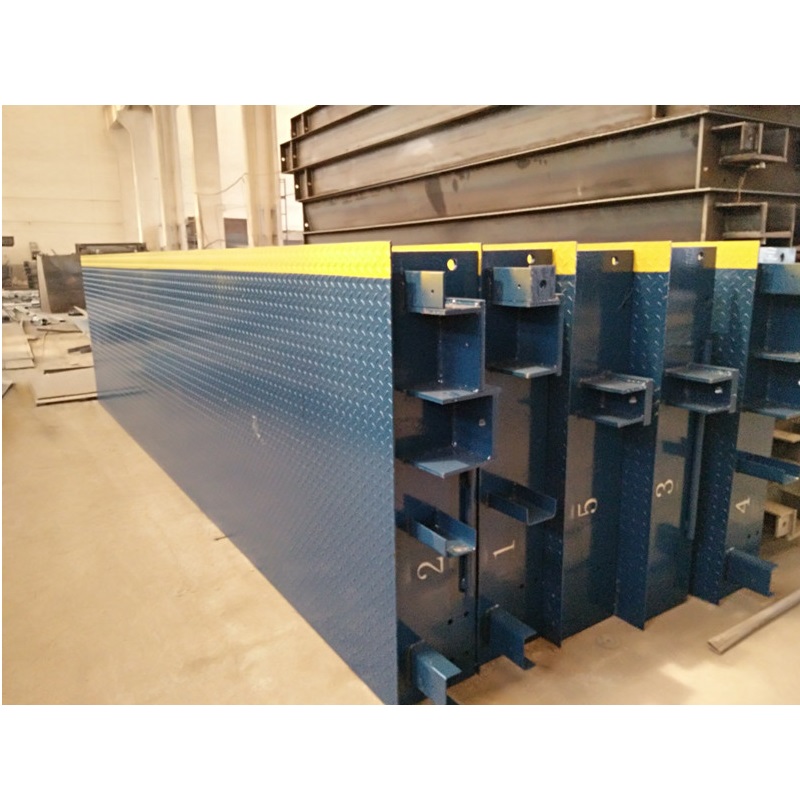

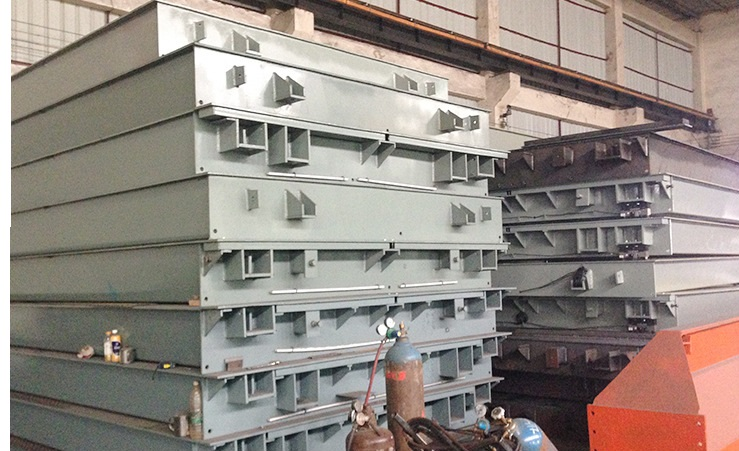

1.Design 6 pieces U beam design;

2.U beam thickness design with 6mm;

3.Pre camber machine to making platform have a high curves in Middle of platform;

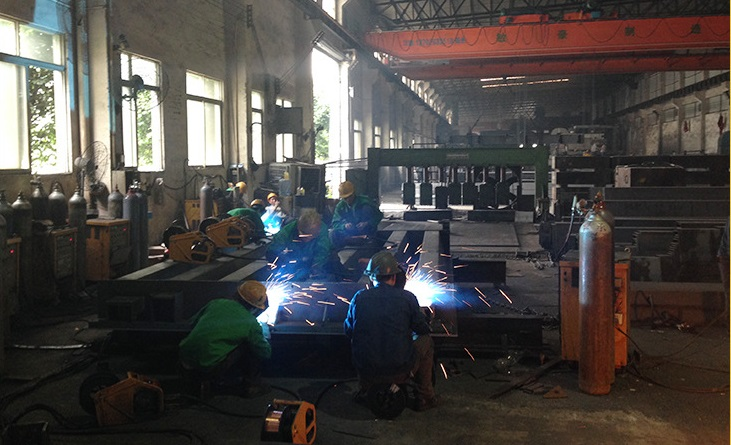

4.Auto welding machine to ensure welding is smooth and good strength;

5.Shot blasting clean all dirty before painting;



Applications:

1).Weighing

2).Net weight/tare

3).Weight accumulation



Competitive Advantage:

1.We support small orders,fast delivery for customers to save even more valuable time.

2.We have abundant production and export experience ,best price and good quality.

3.We have global market,has been exported to UK, Czech, Latvia,Thailand, ViteNam, Chile,Canada,Philippines,Span etc. various countries around the world.
