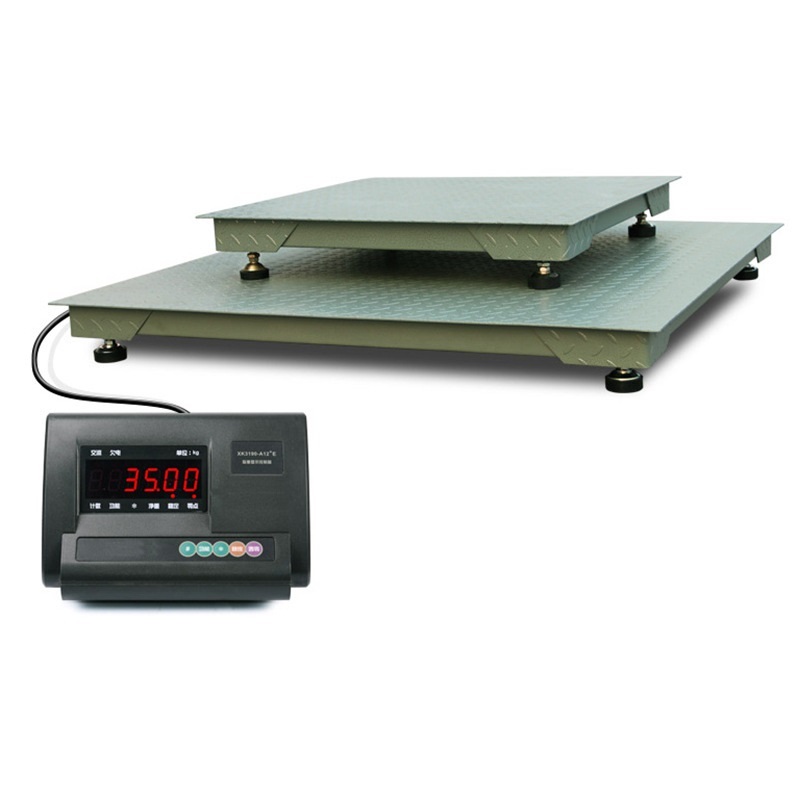

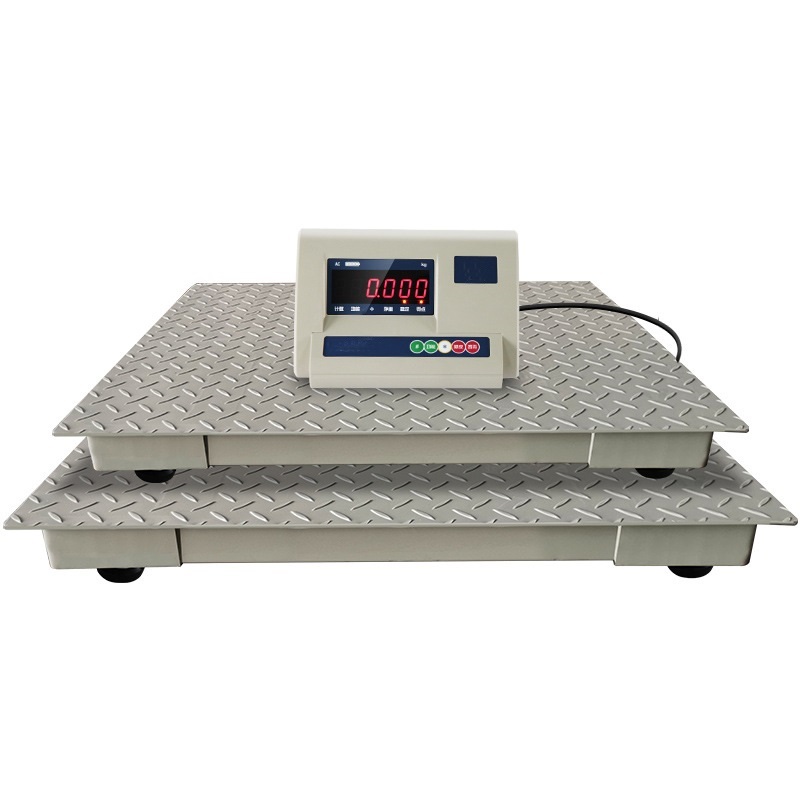

WSF001 Digital Floor Scales Low Profile Platform Scale

Description:

●Rugged NTEP approved industrial construction for heavy duty weighing;

●Safety chequered plate to protect from slipping on the scales;

●Powder coated finish;

●4 load cells are installed and calibrated before shipment;

●Adjustable swivel leveling legs;

●Overload protection;



Options:

Ramp; Moveable Pole; customs size and design.

ITEM	Dimension	Max. Cap.	Division	Platform height(mm)	N.W
	(m×m)	(Tonne)	(kg)		(kg)
WSF0011-1/2/3-1010	1×1m	1/2/3t	0.2/0.5/1	110	80
WSF001-5-1010	1×1m	5t	1	110	90
WSF001-1/2/3-1212	1.2×1.2m	1/2/3t	0.2/0.5/1	110	105
WSF001-5-1212	1.2×1.2m	5t	1	110	115
WSF001-1/2/3-1215	1.2×1.5m	1/2/3t	0.2/0.5/1	110	125
WSF001-5-1215	1.2×1.5m	5t	1	110	140
WSF001-1/2/3-1515	1.5×1.5m	1/2/3t	0.2/0.5/1	110	150
WSF001-5-1515	1.5×1.5m	5t	1	110	170

Products Detail:

The Ramp(Optional):



One corner of the production workshop:

Extensive inventories,preclude shortages:
