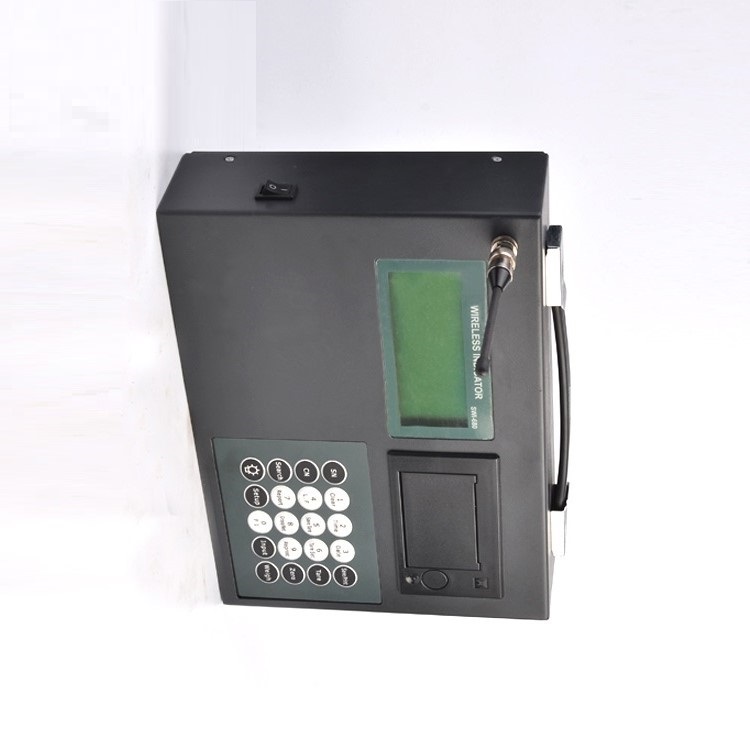

WI680
SAINTBOND
Special Features:
● Adopts ∑-Δ A/D conversion technology.
● Keyboard calibration, easy to operate.
● Able to setup zero(auto/manual) range.
● Weighing data save protection in case of power off.
● Battery charger with several protection modes to extend life of rechargeable battery.
● Standard RS232 communication interface(optional).
● Portable design, packed in portable box, easy to operate outdoor.
● Adopt SMT technology, reliable and high quality.
● LCD display with dot character with backlight, readable in aphotic areas.
● Gathering up to data records of 2000 weighing, records can be sorted, searched and printed.
● Standard parallel print interface(EPSON printer)
● With rechargeable 7.2V/2.8AH battery for indicator, no memory. Scale body with power supply of DC 6V/4AH battery.
● Power saving mode, indicator will turn off automatically after 30minutes with no operation.
Technical Data:
A/D Conversion Method: | Σ-Δ |
Input Signal Range: | －3mV～15mV |
Load Cell Excitation: | DC 5V |
Max. Connection Number Of Load Cell: | 4 at 350 ohm |
Load Cell Connection Mode: | 4 wire |
Verified Counts: | 3000 |
Max. External Counts: | 15000 |
Division: | 1/2/5/10/20/50 optional |
Display: | LCD display with backlight |
Clock: | real clock without effect on power off |
Wireless Transmission Frequency: | 450MHz |
Wireless Transmission Distance: | 100~500 meters (in wide place) |
Option: | RS232 communication interface |
| Product name | WI680 Wireless Wheel Weighing Scale Indicator Wireless Handheld Scale Indicator |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
Special Features:
● Adopts ∑-Δ A/D conversion technology.
● Keyboard calibration, easy to operate.
● Able to setup zero(auto/manual) range.
● Weighing data save protection in case of power off.
● Battery charger with several protection modes to extend life of rechargeable battery.
● Standard RS232 communication interface(optional).
● Portable design, packed in portable box, easy to operate outdoor.
● Adopt SMT technology, reliable and high quality.
● LCD display with dot character with backlight, readable in aphotic areas.
● Gathering up to data records of 2000 weighing, records can be sorted, searched and printed.
● Standard parallel print interface(EPSON printer)
● With rechargeable 7.2V/2.8AH battery for indicator, no memory. Scale body with power supply of DC 6V/4AH battery.
● Power saving mode, indicator will turn off automatically after 30minutes with no operation.
Technical Data:
A/D Conversion Method: | Σ-Δ |
Input Signal Range: | －3mV～15mV |
Load Cell Excitation: | DC 5V |
Max. Connection Number Of Load Cell: | 4 at 350 ohm |
Load Cell Connection Mode: | 4 wire |
Verified Counts: | 3000 |
Max. External Counts: | 15000 |
Division: | 1/2/5/10/20/50 optional |
Display: | LCD display with backlight |
Clock: | real clock without effect on power off |
Wireless Transmission Frequency: | 450MHz |
Wireless Transmission Distance: | 100~500 meters (in wide place) |
Option: | RS232 communication interface |
| Product name | WI680 Wireless Wheel Weighing Scale Indicator Wireless Handheld Scale Indicator |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
