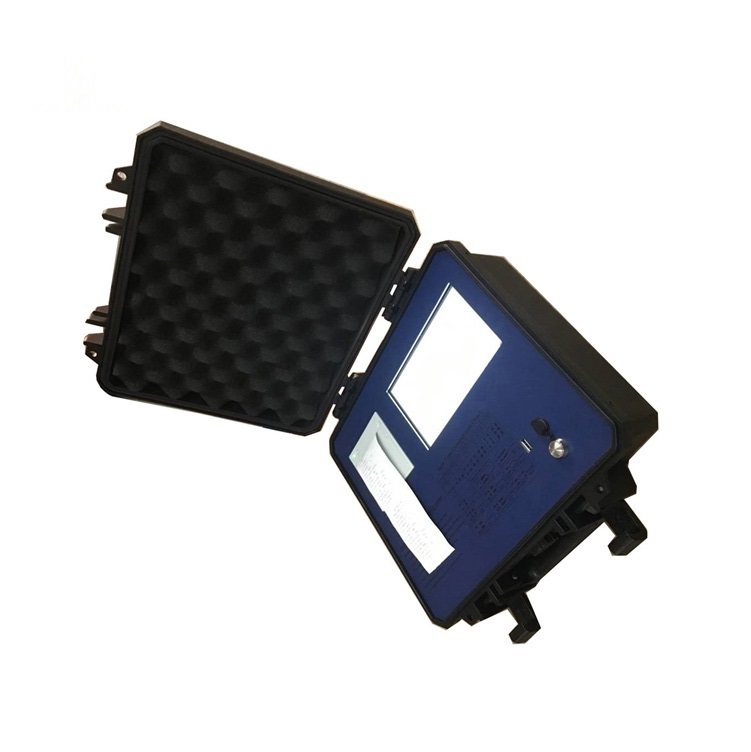

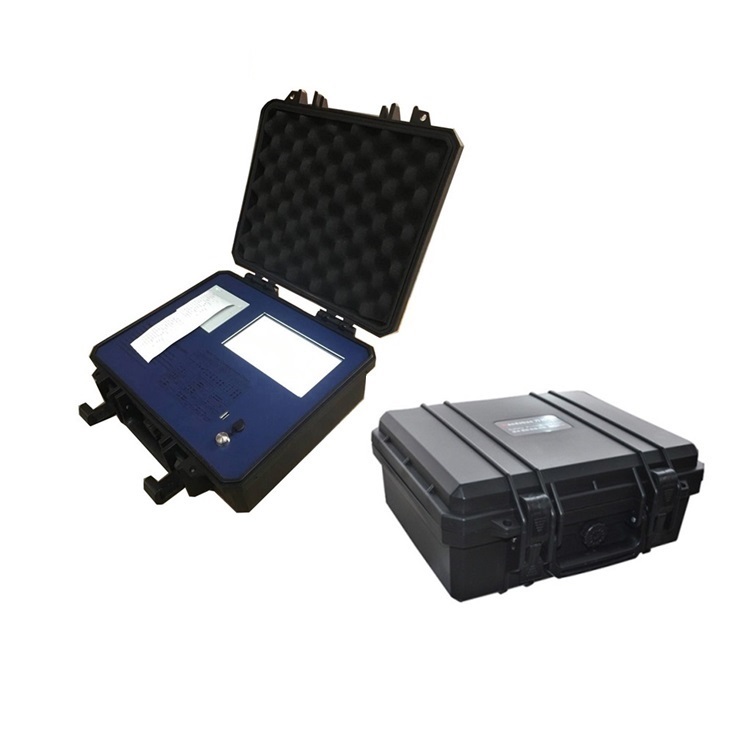

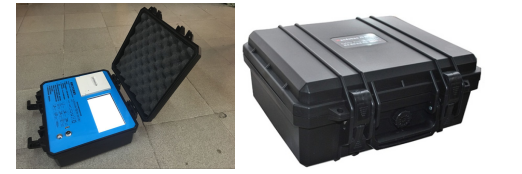

WI380 Radio Wireless Professional Weight Indicator Wireless Weighing Indicator Factory

Availability:
Quantity:
  • WI380
  • SAINTBOND

圣邦网站2详情页-1000_01 - 副本


Features:

Excellent weighing function and high precision;

Touch screen LCD Monitor;

Backlight lattice LCD, Clear both in daytime and nighttime;

Double LCDs are used;

Measure and display vehicle velocity(km/h);

Floating technology is adopted to remove zero drift;

Numbered options;

Vehicle axle weight is measured axle by axle, and the max number is unlimited;

USB port is used to communicate with PC;

Can conveniently input full vehicle license number with letters;

Can put in the name of the testing organization and operators;

Can store as many as 10000 vehicle testing records;

Mature inquiry and statistic function;

AC/DC, real time battery capacity indicating. The battery can be used for 40 hours on end. Automatic shut off;

The auto power supply system can be used for providing electricity and charging;

The instrument can work independently. And it also can upload testing data to computers.;

Main Technical Index

Full-scale temperature coefficient: 5ppm/;

Inner resolution: 24 bits;

Sampling speed: 200 times/second;

The speed of display renewal:12.5times/sec;

◎System non-linearity0.01%;

◎Impulse source of sensor: DC 5V±2%;

Operating temperature range: 0--40;

Power supply sink (without the sensor):70mA(no printing and no back lighting), 1000mA(printing);

Power supply: built-in 8.4V/10AH leading acid accumulator, and can connect with DC source (8.4V/2A);

圣邦网站1详情页_05

Product name WI380 Radio Wireless Professional Weight Indicator Wireless Weighing Indicator Factory
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
