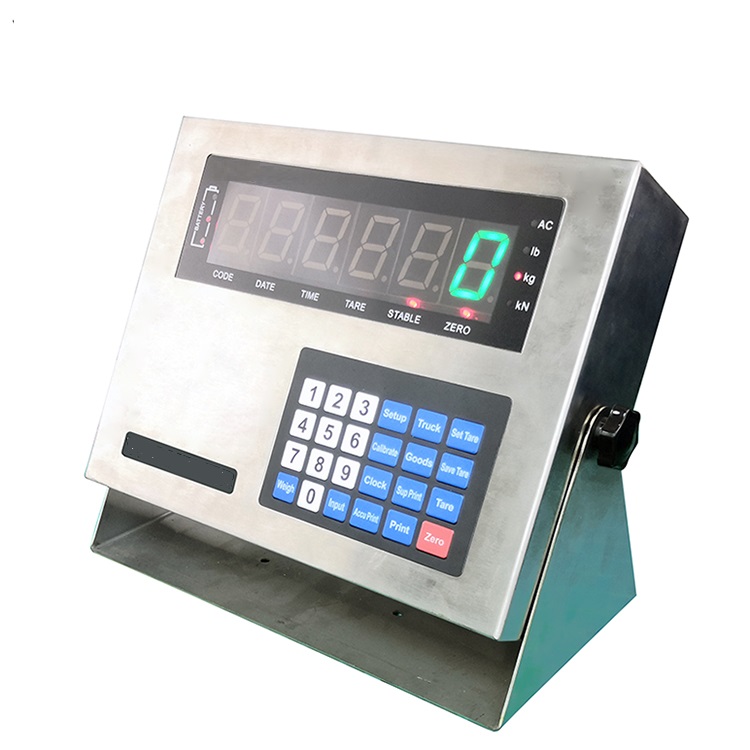

WI0550W
SAINTBOND
Technical Parameter:
lModel : WI0550W
lAnalog signal input range: -20mV ~ +20mV
lAD internal conversion accuracy: 1/1000,000
lSampling rate: 80 times /s
lA/D nonlinearity: <0.01%FS
lExcitation voltage of load cell: DC5V
lMax. connection number of load cell: 8 at 350 ohm or 16 at 700 ohm

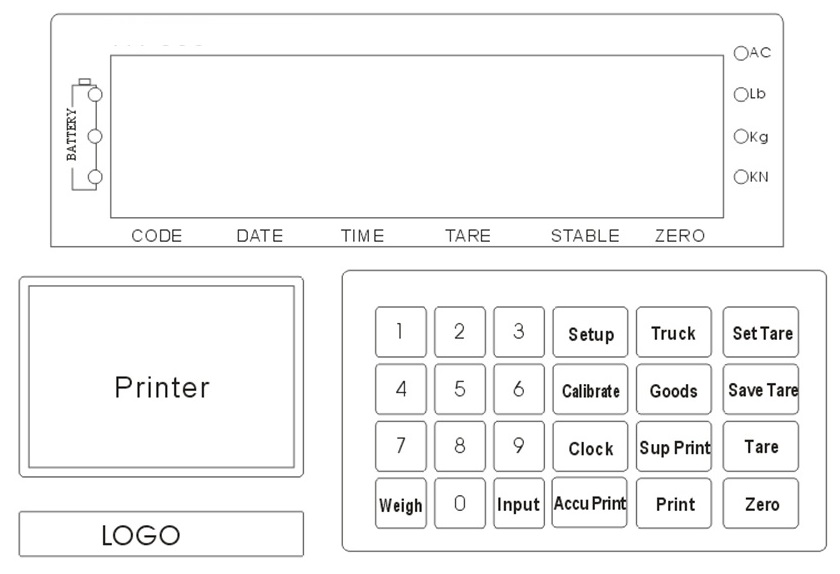

lDisplay: 6 pcs 1.2 "LED , 12 pcs status indicators
lKeyboard: 0~9 numeric keys, 14 function keys
lClock: display year, month, day, hour, minute, second, automatic leap year, leap month

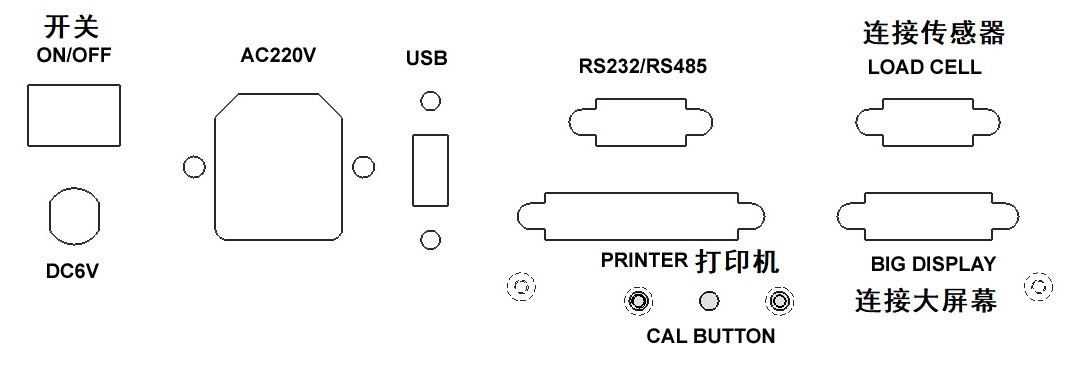

lInterface for big display: current ring and RS232 (600bps)
lCommunication interface: RS232 and RS485, wireless communication mode optional; 1200/2400/4800/9600/19200 is optional
lUsb interface: USB2.0/3.0
lPrint interface: standard parallel print interface configuration, ESPON LQ-300k + Ⅱ, ESPON LQ-300 k, ESPON LQ-680 k, ESPON LQ-730 k, ESPON LQ - 1600 k (+), KX - P1131, KX - P1121, DS-300 line printer;
-P with thermal printer;
lData storage 1000 sets of tare weight, 1000 sets of one-time weighing records, 500,000 sets of secondary weighing records (can be exported to the computer through U disk or serial port)
lPower voltage: AC220V, DC6V/10A rechargeable battery
lOperating temperature and humidity: -10 ~ 50℃;90% RH or less
lSize: 270mm x 210mm x 75mm
lSelf-weight: about 3.5kg
Dimension:
The New Feature:
●Weighing display controller fro truck scale;
●It can store 500,000 weighing records;
●All the data can be uploaded to the computer;
●Insert the U disk into the indicator, It will automatically exported to excel file;
●We provide free weighing software for you;
●Stainless steel
●Green or red led
●Max. connection number of load cell: 8 at 350 ohm or 16 at 700 ohm
Wireless Technical Data:
A/D Conversion Method: | Σ-Δ |
Input Signal Range: | －3mV～15mV |
Load Cell Excitation: | DC 5V |
Max. Connection Number Of Load Cell: | 4 at 350 ohm |
Load Cell Connection Mode: | 4 wire |
Verified Counts: | 3000 |
Max. External Counts: | 15000 |
Division: | 1/2/5/10/20/50 optional |
Display: | LCD display with backlight |
Clock: | real clock without effect on power off |
Wireless Transmission Frequency: | 450MHz |
Wireless Transmission Distance: | 100~500 meters (in wide place) |
Option: | RS232 communication interface |
| Product name | WI0550W Industrial Wireless Weight Indicators Factory Wireless Digital Weighing Indicator |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
