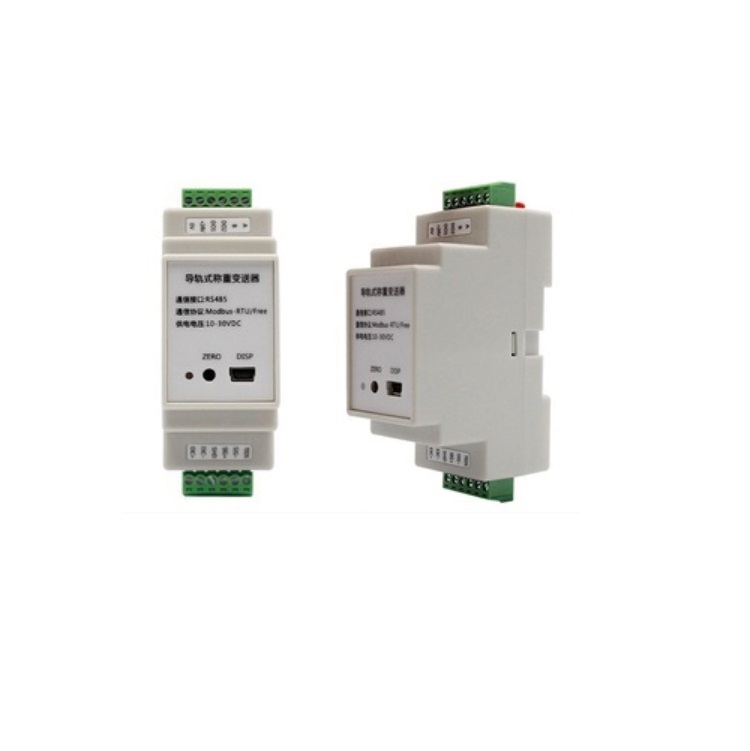

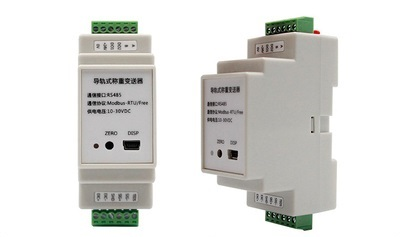

Multichannel Weight Digital Transmitter
Product information parameters:
lComprehensive accuracy: 1/1000;
lSensitivity: 0.4mV/V-6mV/V;
lExcitation voltage: 5VDC;
lCommunication interface: TDA-04D1 RS485;
lTDA-04D2/3/4/6 RS232/RS485 (optional);
lTDA-04D8 RS232 and RS485 (available at the same time);
lAD conversion rate: 10/40/640/1280/Hz;
lBaud rate: 1200/2400/4800/9600/19200/38400/57600/115200;
lCommunication protocol: Modbus RTU/Free;
Installation Dimensions:TDA-04D1
Installation Dimensions:TDA-04D2

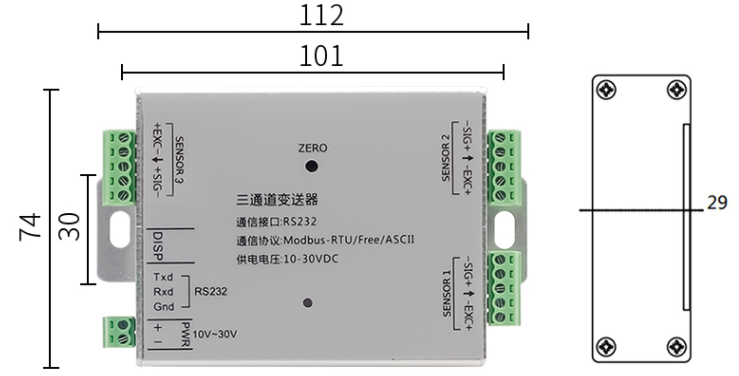

Installation Dimensions:TDA-04D3
Installation Dimensions:TDA-04D4
Installation Dimensions:TDA-04D6

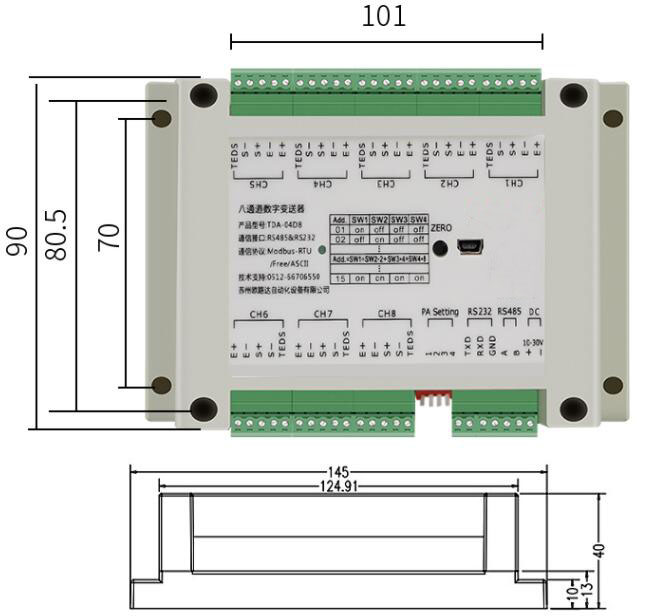

Installation Dimensions:TDA-04D8
Parameter: | Technical Indicators: | Load Cell Excitation Vol.: | 5VDC±2%100mA |
Supply voltage DC: | 12V--30V | Working Temp.: | -30~60℃ |
Input sensitivity: | 0.4mV/V~6mV/V | Protection: | IP65 |
A/D resolution: | 24 bit, Delta Sigma method | ||
Display accuracy: | 1/10000 | ||
Withstand voltage: | 1 minute at 2000V AC50/60Hz | ||
AD conversion rate: | 10/40/640/1280Hz | ||
Baud rate: | 1200/2400/4800/9600/19200/38400/57600/115200 | ||
surrounding environment: | Temperature: - 10~55℃; Storage - 25~65℃; 35-85%RH; Storage 35~85% RH; | ||
TDA-04D8Description of terminal composition:
+ | Supply Voltage+ | GND | Connected to upper computer GND |
- | Supply Voltage- | EXC+ | Load Cell excitation voltage+ |
A | Connected to upper computer A | EXC- | Load Cell excitation voltage- |
B | Connected to upper computer B | SIG+ | Load Cell signal+ |
TXD | Connected to upper computer RXD | SIG- | Load Cell signal- |
RXD | Connected to upper computer TXD | TEDS | Connected to TEDS |
Instructions:
lZERO: Press and hold for more than 1s to reset (8 channels are reset at the same time)
lUSB port: take over the meter
lPA SETTING: The transmitter address can be changed by software or set through the dial switch. lThe dial is ON=1 and the dial is OFF=0.
lAddress formula ADD.=SW1+SW2 * 2+SW3 * 4+SW4 * 8.
lExample 2 and 3 When unplugged, SW1=0/SW4=0/SW2=1/SW3
lADD.=0+1*2+14+0*8=6;
Note: When using a six wire sensor, the EX+and SN+of the sensor should be shorted and then connected to the EXC+port of the transmitter: EX and SN - should be shorted to the EXC port of the load cell.
Case Demonstration:

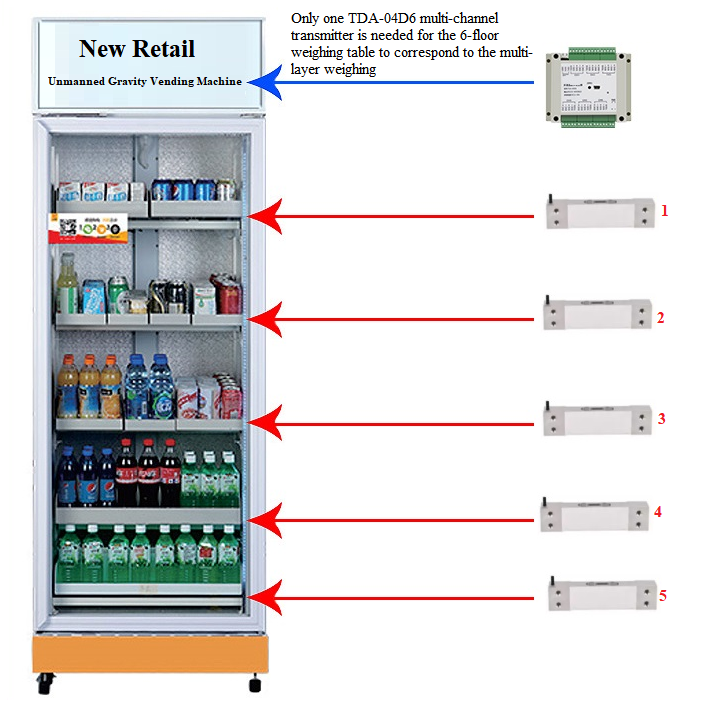

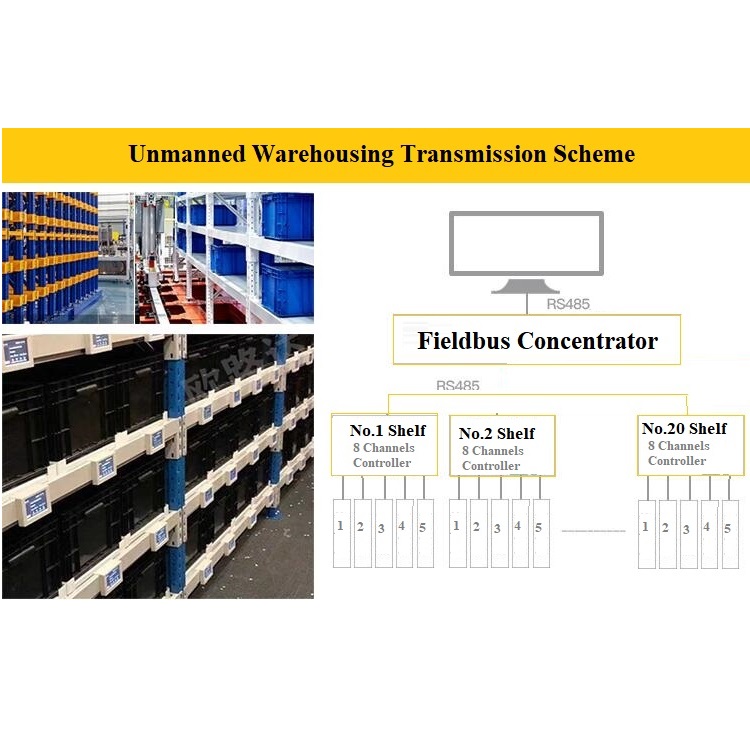

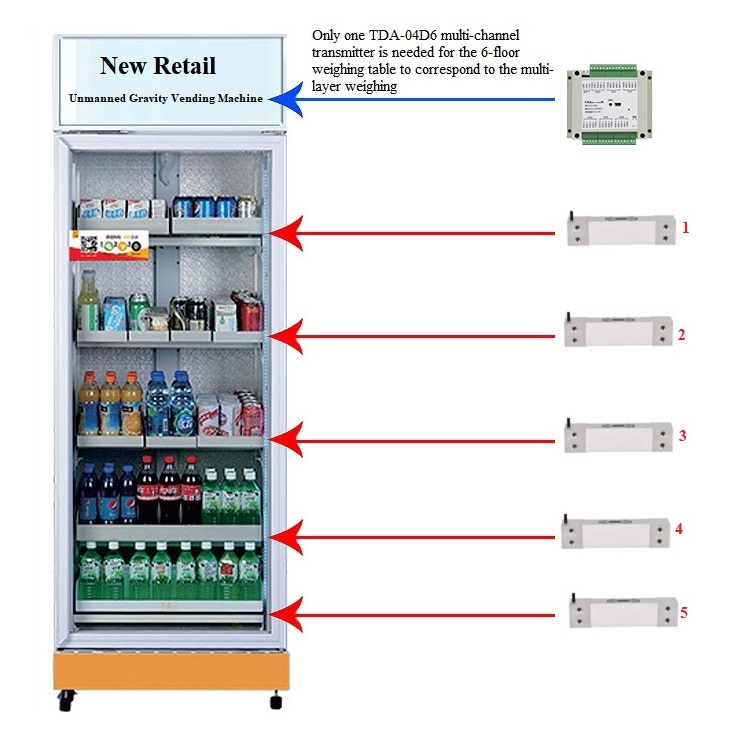

TDA-04D2/D4/D6/D8 case presentation
TDA-04D2/D4/D6/D8 case presentation:
Wide range of Applications:
Weighing and force measuring sensors play an important role in many fields, including automobile press, automatic assembly, 3C product testing, new energy product assembly, medical detection, robot control, Internet of Things/new retail weighing, mold and control system, and other application fields have different demands for sensors. Our company has several professional technical solution selection engineers, which are sufficient to solve sensor applications under various working conditions.
Please contact our customer service or technical personnel if you need to order in batches, technical connection, special customization, etc.
