LC348D
SAINTBOND
Dimensions Unit:mm:
Cap. | A | B | C | D | E | d | d1 | H | H1 | H2 | M |
(kg) | (mm) | ||||||||||
500 | 130 | 53.7 | 15.8 | 25.4 | 76.2 | 13.5 | 13.5 | 31.8 | 26 | 15.8 | M12x1.75 |
1000~2000 | 130 | 53.7 | 15.8 | 25.4 | 76.2 | 13.5 | 13.5 | 31.8 | 28 | 15.8 | M12x1.75 |
2500~5000 | 171 | 77.2 | 19 | 38.1 | 95.4 | 20.5 | 20.5 | 38.1 | 32.1 | 15.8 | M20x2.5 |
Products Specification:

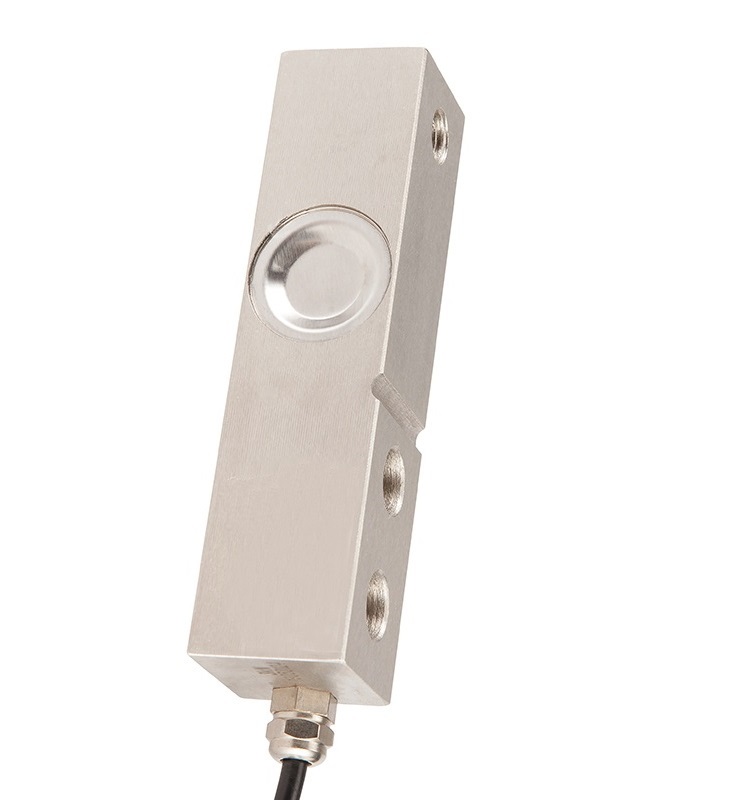

◎LC348D load cells are available in the capacities 500kg to 5000kg.
◎Alloy steel, sealed by adhesive inside, oil-proof, waterproof and anti-corrosion, suitable for all kinds of environment.
◎Single shear beam, easy for installation, suitable for electronic platform scales, hopper scales and other electronic weighing devices.
◎Safe and anti-explosive product, can be used in atrocious environment and hazardous areas.
Technical Parameter:
Rated Load: | 500kg~5000kg | ||
Sensitivity: | (2.0±0.1%) m V/V, (3.0±0.1%) mV/V | Operating Temp. Range: | -30~+70℃ |
Combined Error: | ±0.02% F.S | Max. Safe Over Load: | 150%F.S |
Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
Input Resistance: | 350±5Ω | Element Material: | A,SS: Alloy /Stainless Steel |
Output Resistance: | 350±3Ω | Cable: | Length=L:3m |
Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
| Product name | Saintbond LC348D Animal Scale Weighing Scale Sensor Shear Beam Load Cell 3Ton Manufatory Supplier |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
