| Quantity: | |
|---|---|
WS2798
SAINTBOND
Features:

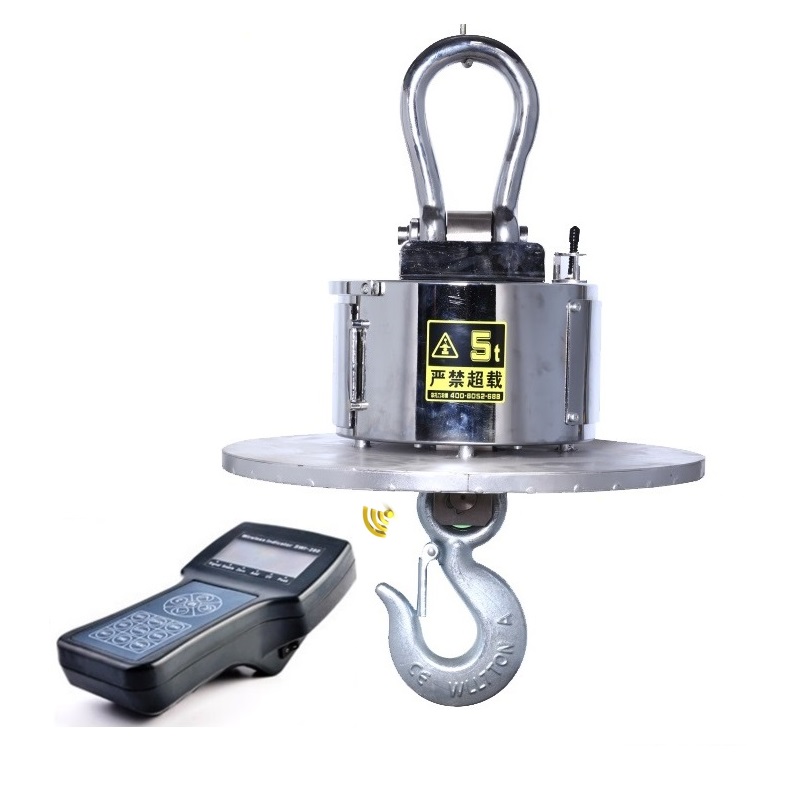

The high temperature crane scale body with Hook & Shackle with Heat Shield plate suitable for up to 1600 deg℃ with NiCd /NiMH 12V battery for 40 hours backup, wireless transmitter for distance up to 200m, Battery charger unit with Spare battery
The high temperature crane scale WS2798 Special design:Used under high temperature environment. Especially in casting industry. Multi-function:Gross/Net, zero, date/time display, data memory and print, statistic, search, overload warning, lifter, low battery warning and power-saving function. User-friendly design:The high temperature crane scale LCD with backlight, easy to operate with micro-printer. Steel housing scale body, high-tension hook and shackle, Ni-H battery to protect environment.
Minimum Safety Distance From High Temperature:
1000℃ | 1200℃ | 1400℃ | 1600℃ |
1.6m | 1.8m | 2m | 2.2 |
Technical specification:
Accuracy Degree: | According to international OIML Ⅲ degree |
A/D Conversion Speed: | ≥50 times/second |
Maximum Inner Code Conversion Rate: | 1million code/time |
Load Cell Bridge Power Supply: | DC5V |
Display: | 6 LCD display, 6 status indicating denotation (backlight at night) |
Power Supply: | A/D transmitting end 6V/2.8AH nickel battery group, working 50 hours after one charge, handle indicating end 4.8V/2.8AH nickel battery group, working 40hours after one charge |
Temperature Of Operating Environment: | Scale body -10℃-50℃; indicator 0℃-40℃ |
Max. Receiving And Launching Distance: | 500-800m (broad field) |
Frequency: | 450MHz |
Description：
Cap. | Division | Total Length | Rings inside Net High | Ring Inside Net Width | Size if Hook Openings at least | Housing Dia. | N.W |
(Ton) | (kg) | (A) | (B) | (C) | (D) | (F) | (kg) |
2 | 1 | 560 | 55 | 90 | 40 | 275 | 19 |
3 | 1 | 560 | 55 | 90 | 40 | 275 | 19 |
5 | 2 | 718 | 90 | 108 | 50 | 275 | 39 |
10 | 5 | 850 | 90 | 120 | 30 | 275 | 46 |
15 | 5 | 980 | 90 | 120 | 90 | 375 | 63 |
20 | 10 | 1030 | 220 | 230 | 90 | 375 | 80 |
30 | 10 | 1350 | 250 | 280 | 100 | 375 | 114 |
50 | 20 | 1600 | 330 | 350 | 150 | 500 | 332 |
| Product name | SAINTBOND Wireles Crane Scale 15t Wireless Industrial Crane Scale |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
