WS1131
SAINTBOND
Features:
lLight in weight, and convenient transportation.

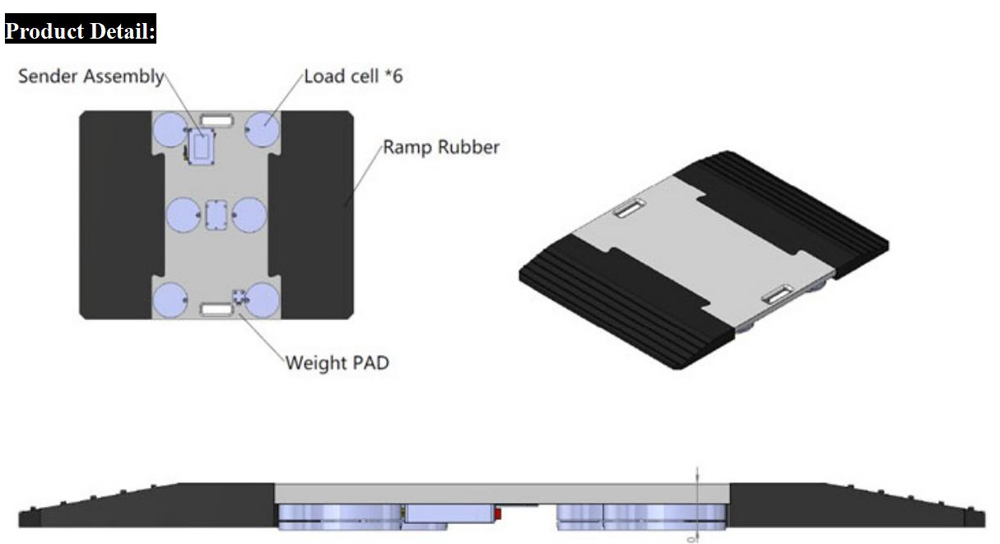

lIntegral flat plate construction, high frequency in dynamic response, and high precision.
lApplied special treatment, offering high protection class that are suitable for all kinds of environments.
lAdopted special material in aero-industry, with good anti-over loading ability.
lAssembled with rubber handles, avoided destroying of the handles.
lProvided with spring tube, protecting the cables from being crushed.
lMounted with connector and protection block, easy for changing of cables.
lCompleted with dovetail approach, offering tight connection of the approach and the scale.
lEasy for loading on/off of the vehicles.
Applications:
lLoad control and weighing for the vehicles;
lMeasuring the weight and barycenter of aeroplane;
lMeasuring weight for special purpose;
Specification:
Output Sensitivity: | 1±0.2m V/V | Temp., Compensated: | -10～+50℃ |
Input Resistance: | 750±10Ω | Temp., Operating: | -30～+70℃ |
Ouput Resistance: | 700±2Ω | Excitation, Recommended (V): | 9～15DC |
Insulation Resistance: | ≥5000(100VDC) | Excitation, Max.(V): | 20DC |
Zero Balance : | 4～10%FS | Safe Overload: | 150%FS |
Tem. Effect On Sensitivity : | 0.1%FS/10℃ | Ultimate Overload: | 300%FS |
Temp. Effect On Zero: | 0.1%FS/10℃ | Protection Class: | IP66 |
Creep(30Min.) | ±0.5%FS | Max. Load(t): | 10/15t |

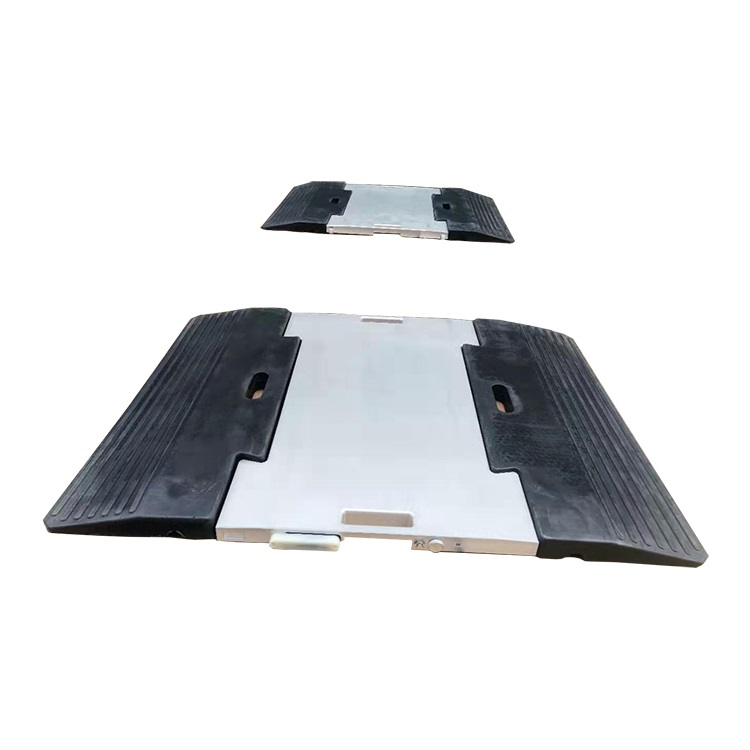

| Product name | SAINTBOND The Portable Weigh Pads Are Used in Either Dynamic Or Static Weighing 10/15t |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
