WS2601-Ex
SAINTBOND
Description：

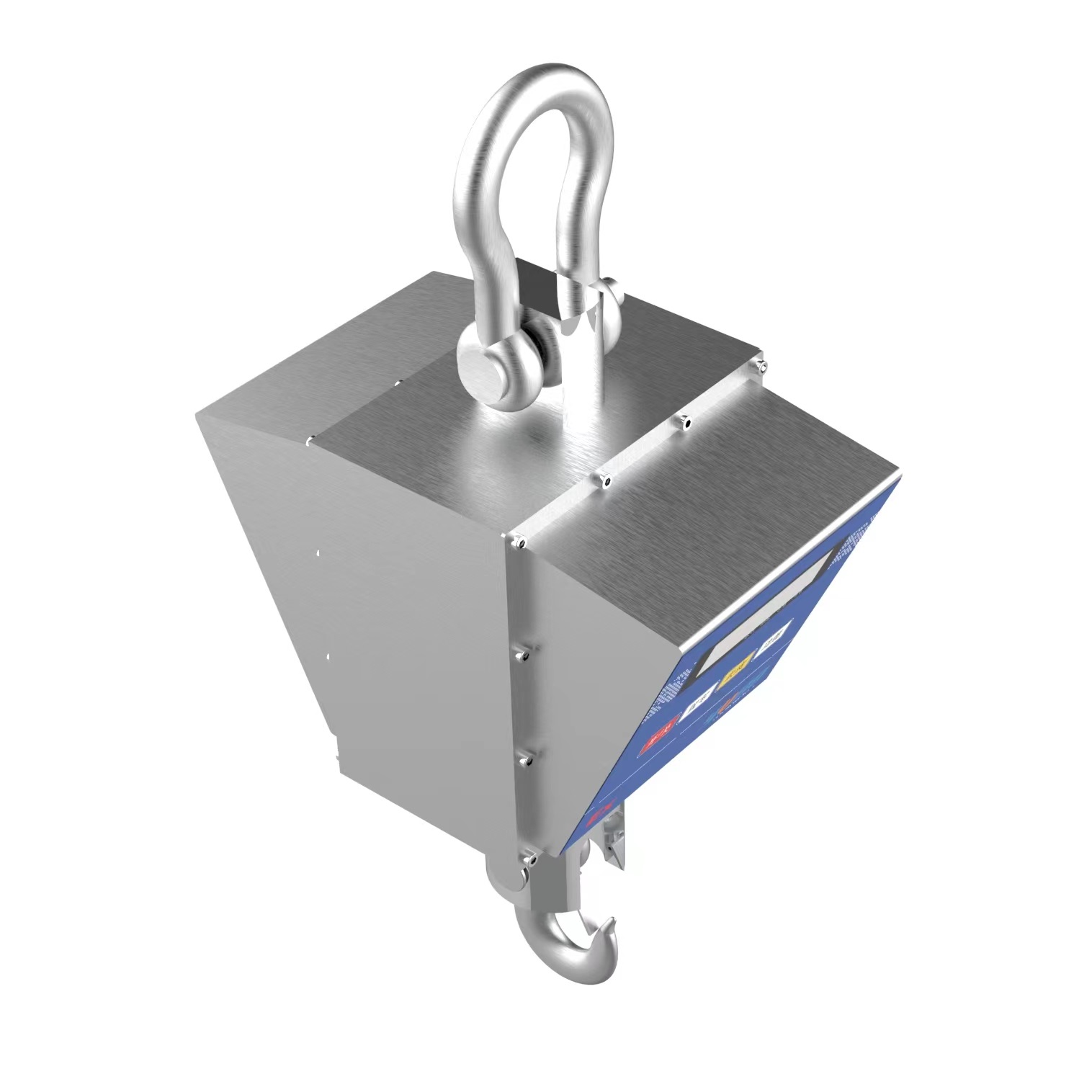

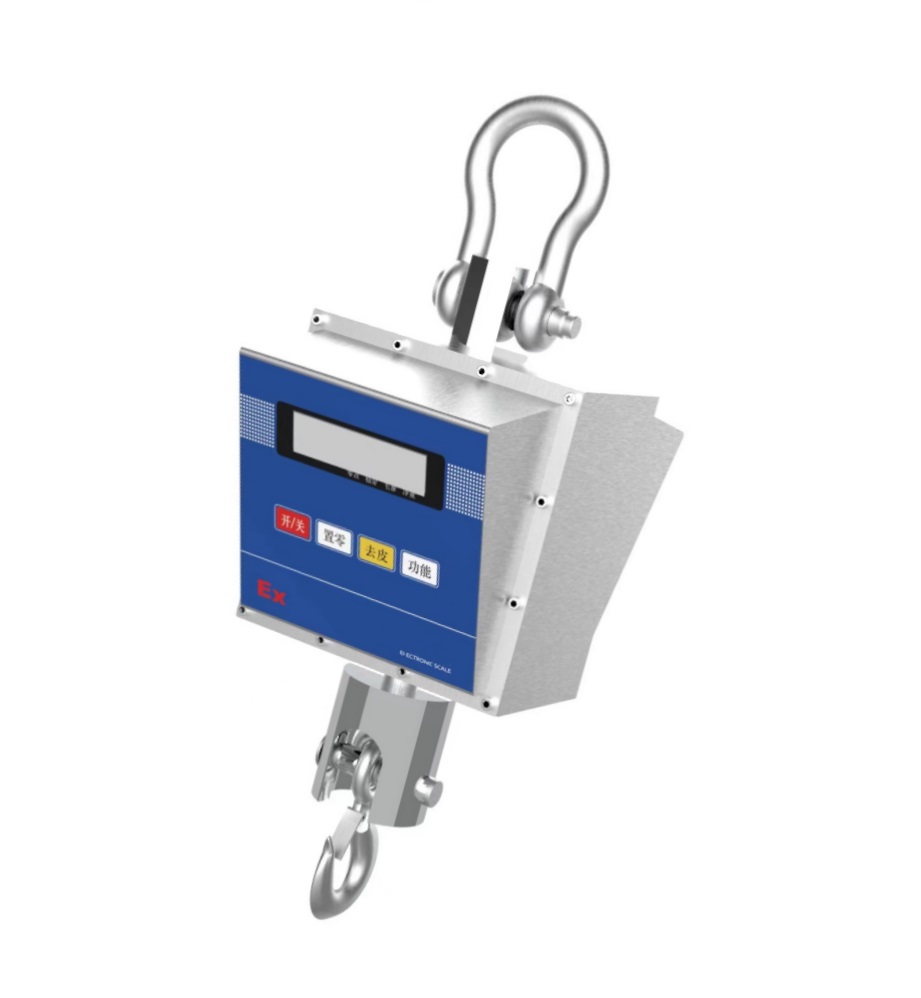

It uses intrinsically safe batteries, sensors and instruments to form a direct view explosion-proof electronic hanging scale with intrinsically safe function, which is very suitable for use in explosive dangerous places.
Technical Parameters:
◎Explosion proof sign: EX IB Ⅱ CT5;
◎Accuracy grade: III;
◎Main components: stainless steel scale body, main board, intrinsically safe sensor (ex Ⅱ CT6), hook, lifting ring, intrinsically safe battery pack (code e0823);
◎Weighing range: 100kg~30t;
◎Display resolution: 1000~30000;
◎Indexing value: 0.001~50;
◎Safety overload: 150% FS;
◎Display mode: 6-bit segment code LCD, word height 30mm;
◎Charging mode: remove the battery pack and charge in the safe area;
◎Standby time: about 70 hours at full charge;
Product Function:
◎Setting zero, peeling, accumulating, weighing, storing and preset tare weight;
◎Maintenance function: peak value maintenance, data maintenance and automatic maintenance;
◎Locking weight function;
◎Store 10 times of weighing data, shut down and save;
◎Power saving function, idle mode and automatic shutdown;
◎It has the function of under voltage indication and under power shutdown;
◎Infrared remote control operation;
◎Communication interface: RS232 / RS485 (optional);
Product No. | Capacity | Division | N.W | Package Size |
(Ton) | (kg) | (kg) | (m) | |
WS2601-Ex(1~3) | 1~3t | 0.2/0.5/1 | 15 | 242×290×458 |
WS2601-Ex-5 | 5t | 2/1 | 20 | 242×290×564 |
WS2601-Ex-10 | 10t | 5/2 | 25 | 242×290×768 |
WS2601-Ex-15 | 15t | 10/5 | 32 | 242×290×768 |
WS2601-Ex-20 | 20t | 10/5 | 38 | 242×290×768 |
Application:
Intrinsically safe hook scale for water treatment, coating, paint, pharmaceutical, ammonia, acetylene, petrochemical, pharmaceutical and other dangerous occasions material suspension weighing door design;
| Product name | SAINTBOND Heat Proof Crane Scale Explosion Proof Hook Scale 1/2/3/5/10/15/20T |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
