| Quantity: | |
|---|---|
WS2001
SAINTBOND
Features:

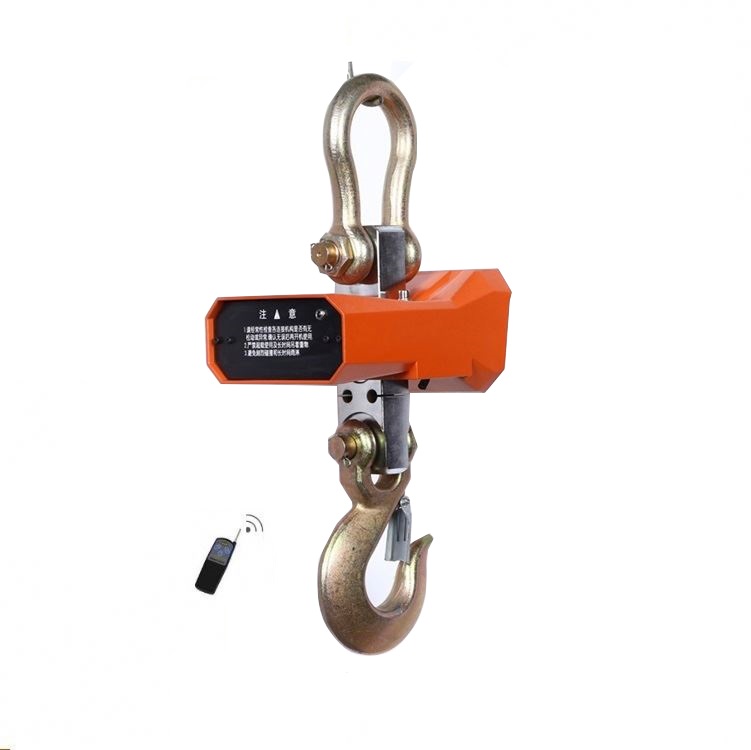

We specialize in producing crane scales. These heavy-duty below crane scales are typically used for accurate weight determination and are a vital part of shipping and production operations. We can match you with the right crane scale to suit your needs. Also available are custom crane scale solutions.
Crane scale WS2001 Multi-weighing units: Kg, lb, N are selectable, generally kg is the default unit.Multi-function operation: Tare;Zero;Auto zero tracking;Total; Hold; Overload warning, Oration through remote controller functions. User-friendly design: Cast aluminum housing and aluminum front panel for maximum protection; Large red 5 digit LED display (digit height:30mm); Battery Operated with low battery indication; Automatic switch-off power-saving function.
Main Technical Data:
Capacity: | 1/2/3/5/10/15/20t | Overload Indication: | 100% F.S.+9e | |
Zero Range: | 4% F.S. | Max. Safety Load: | 125% F.S. | |
Tare Range: | 20% F.S. | Ultimate Load: | 400% F.S. | |
Stable Time: | ≤10 seconds | Battery Life: | ≥70 hours | |
Adapter: | DC9V/1000mA | Operating Humidity: | ≤85% RH under 20℃ | |
Standard: | According to OIML class III | |||
Display: | 30mm (1.2'') 5digits LCD/LED | |||
Battery Type: | Fully sealed Lead-Acid battery, 6V/7Ah | |||
Remote Controller Distance: | Min. 15m | |||
Battery Of Remote Controller: | UM-4 SIZE AAA,1.5Vx2 | |||
Specification:
Model | Max Cap.(Kg) | Min. Weigh (Kg) | Division (Kg) | Total Display Counts (N) |
WS2001-1 | 1000 | 10 | 0.5 | 2000 |
WS2001-2 | 2000 | 20 | 1 | 2000 |
WS2001-3 | 3000 | 20 | 1 | 3000 |
WS2001-5 | 5000 | 40 | 2 | 2500 |
WS2001-10 | 10000 | 100 | 5 | 2000 |
WS2001-15 | 15000 | 100 | 5 | 3000 |
WS2001-20 | 20000 | 200 | 10 | 2000 |
Dimension:
Model | A(mm) | B(mm) | C(mm) | H(mm) | N.W |
WS2001-1 | 80 | 340 | 30 | 420 | 12kg |
WS2001-2 | 80 | 340 | 30 | 420 | 12kg |
WS2001-3 | 100 | 340 | 40 | 600 | 14kg |
WS2001-5 | 130 | 360 | 45 | 720 | 23kg |
WS2001-10 | 145 | 360 | 60 | 850 | 43kg |
WS2001-15 | 170 | 360 | 85 | 900 | 60kg |
WS2001-20 | 170 | 360 | 85 | 900 | 60kg |
| Product name | SAINTBOND Direct-view Crane Scales Digital Crane Scale Manufacturers |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
