Portable Vehicle Axle Weigh Pad 15T From Ningbo Saintbond Is A Heavy Duty Weighing Scale

Availability:
Quantity:
  • WS1191
  • SAINTBOND

Axle Scale详情页首图

WS1191


Features:

High frequency in dynamic response, and high precision;

Offering wide weighing range and good anti-over loading ability;

Realization of both static calibration and weighing;

With protection class of IP68;

Applied special treatment, offering high protection class that are difficulty to be damaged;

Continuously working in -40℃〜+80, difficulty to be effected by the temperature changes;

Patented technology offering double output channels, with higher reliability;

Specially thin structure, convenient for installation;

Suitable for using in parallel, avoiding dead zone in weighing;

Applications:

Axles and/or wheels inspection of vehicles on road orbridges;

Inspecting and controlling vehicles load through the computer system, served as the charging standards for the transportation administration, and also scientific resources for traffic investigation, data collecting and statistics;

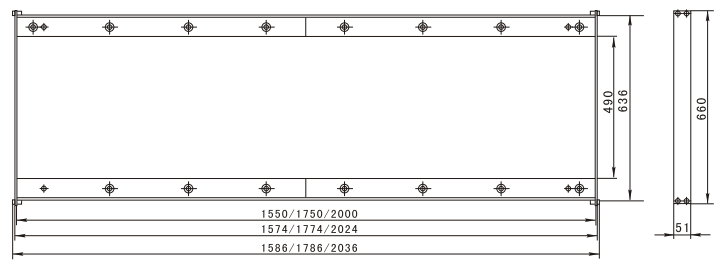

Dimensions(unit:mm):

WS1191-

Technical Parameter:

Output sensitivity:

0.8mV/V

Temperature, compensated:

:-10+55°C

Horizontal consistency error:

2 (4)%ld

Temperature, operating:

:-45+80°C

Non-linearity :

2.5%ld

Excitation, recommended:

915VDC

Repeatability:

0.1%FS

Excitation, Max.:

20VDC

Input resistance:

700 ±

Safe overload:

120%FS

Output resistance:

700 ±7Ω

Ultimate overload:

150%FS

Insulation resistance:

^5000(100VDC)MΩ

Protection class

IP68

Zero balance:

4~10%FS

Cable Spec.:

4-wire cable

Temp. effect on sensitivity:

0.1%FS/10°C

Max. load for single point:

10t

Temp. effect on zero:

0.2%FS/10°C

Rated capacity:

15t
