PBS02W
SAINTBOND
New features for the PBS02W weighing beam and weigh beams:

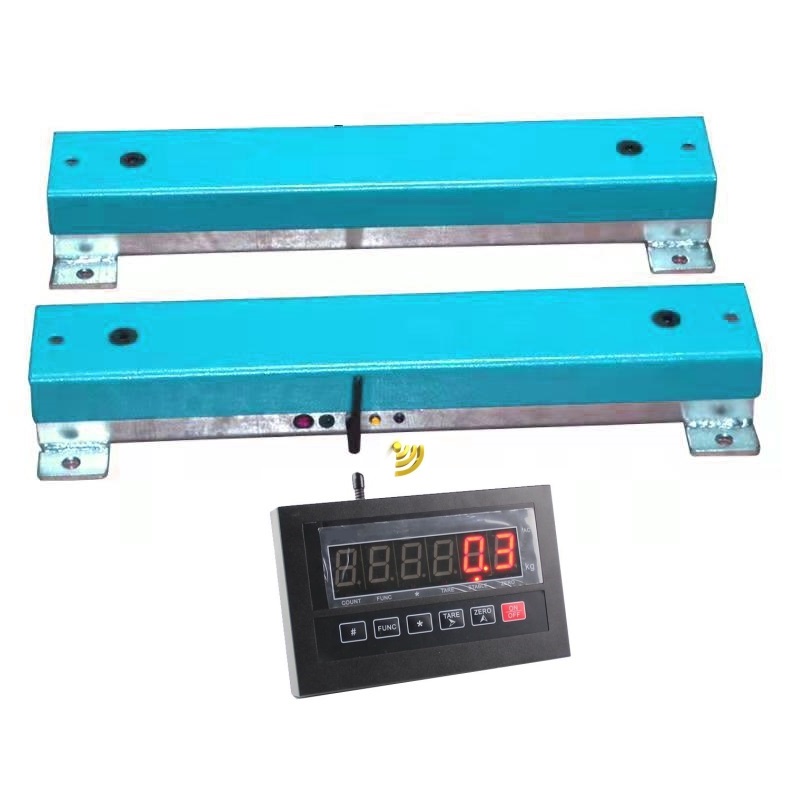

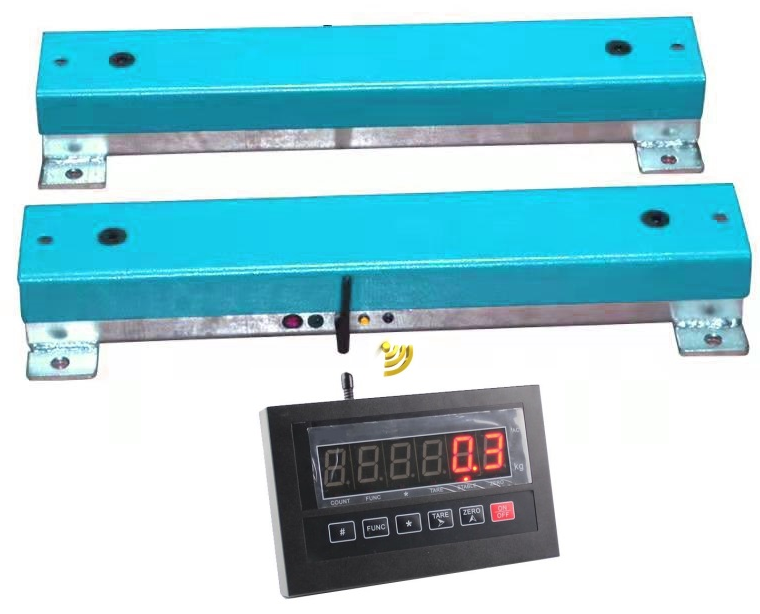

PBS02W Wireless Weigh Beams | Load Bars with new designed wireless module, driven by the Li-ion rechargeable battery, compact with stable transmitting, no worry about broken cables any more! Double deck design,Customized length is available, optional of galvanized process which gives the best quality for long term durability in harsh environment.
Description:

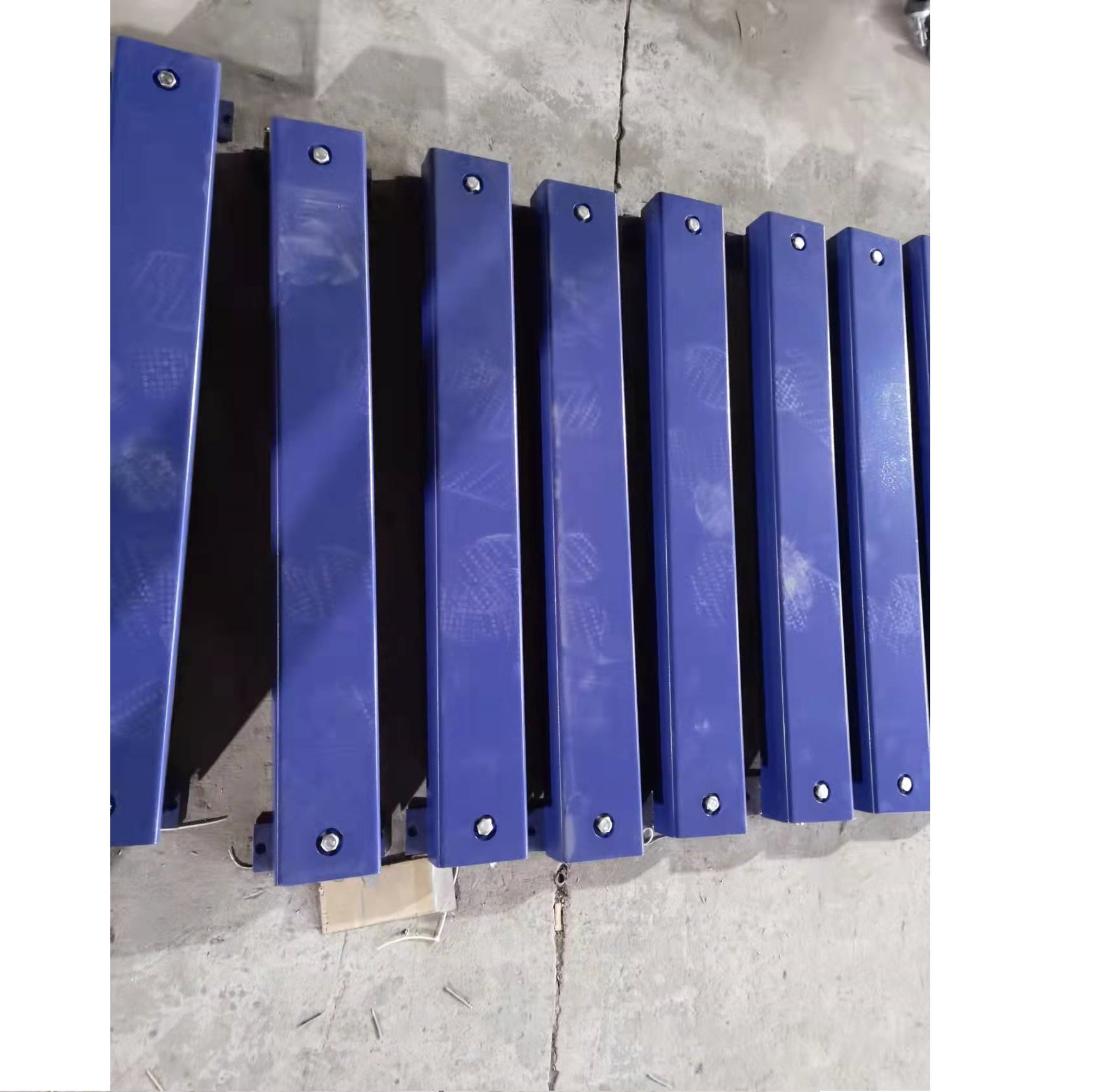

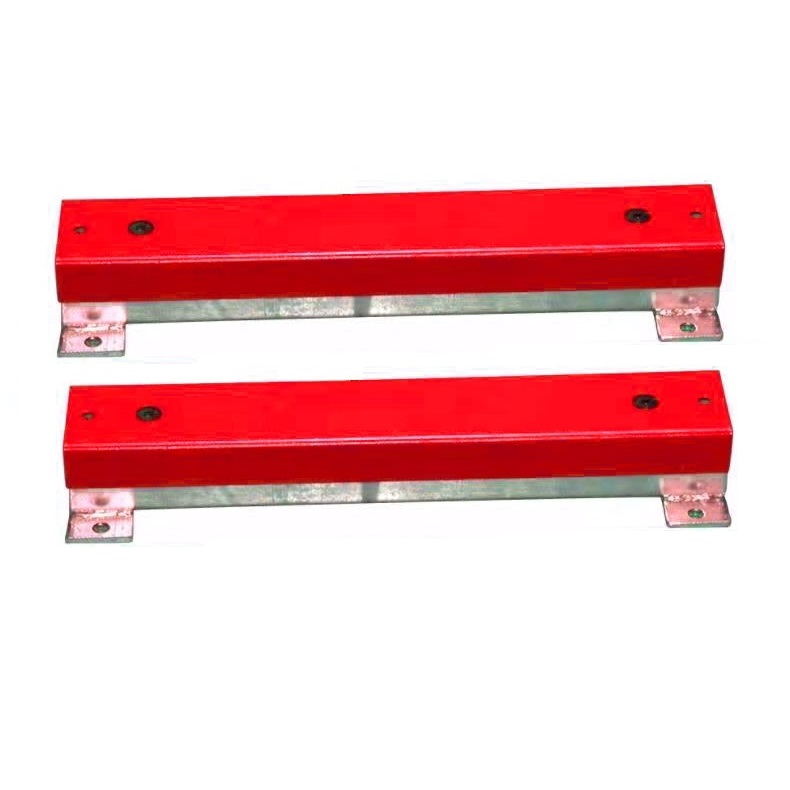

◎Mild steel structure, powder-coated;
◎Double deck, stability, can mounted in the ground;
◎With OIML approved shear beam load cells, indicator is optional;
◎304 stainless steel structure (PBS02W series) is optional;
Model | Size(m) | Capacity(t) |
PBS02W (Model A) | 0.8X0.12 | 0.5~1t |
PBS02W (Model B) | 0.8X0.12 | 2~3t |
PBS02W (Model A) | 1.0X0.12 | 0.5~1t |
PBS02W (Model B) | 1.0X0.12 | 2~3t |
PBS02W (Model A) | 1.2X0.12 | 0.5~1t |
PBS02W (Model B) | 1.2X0.12 | 2~3t |
Please be aware these are very well constructed scales with heavy duty, steel construction, as a result they are heavy.
Product Description:
l6 bit 1.2" LED, large screen display ;
lOptional: kg ,lb
lAutomatically shut down the back light after half an hour while no body operate.
lBidirectional data transfer functions.
lDimension:252×157×100mm
lIron shell

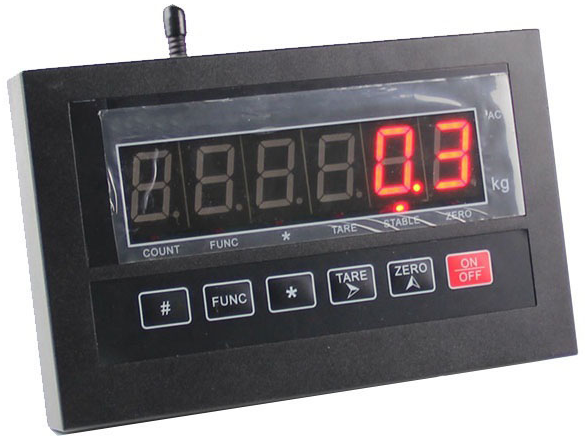

For Indicator:
Display | 6 bit 1.2" LED |
Weighing Units | kg/lb |
Division | 1/2/5/10/20/50/100 optional |
Dimension(mm) | 252×157×100mm |
Power supply | Battery DC6V/4AH |
or AC80V~300V | |
External Interface | RS232 interface ,can connect to PC or big screen display |
Printer | no |
Operating Temp. | -25°C~50°C, RH 10%~85%, Non-condensing |
Storage Temp. | -30°C~55°C, RH 10%~85%,Non-condensing |
Communication | Wireless interface,434M~470MHZ |
For Wireless Sender:
A/D conversion method | Σ-Δ 24bit |
Input signal range | –19.5mV~19.5mV |
Load cell excitation | DC 5V |
Max. connection number of load cell | 1~12 |
Load cell connection mode | 4 wire |
Operating temperature | -10 °C ~40 °C |
Allowable working temp. | -40 ° C ~ 70 ° C |
Wireless transmission frequency | 430MHz to 470MHz |
Wireless transmission distance | 300 meters (in wide place) |
