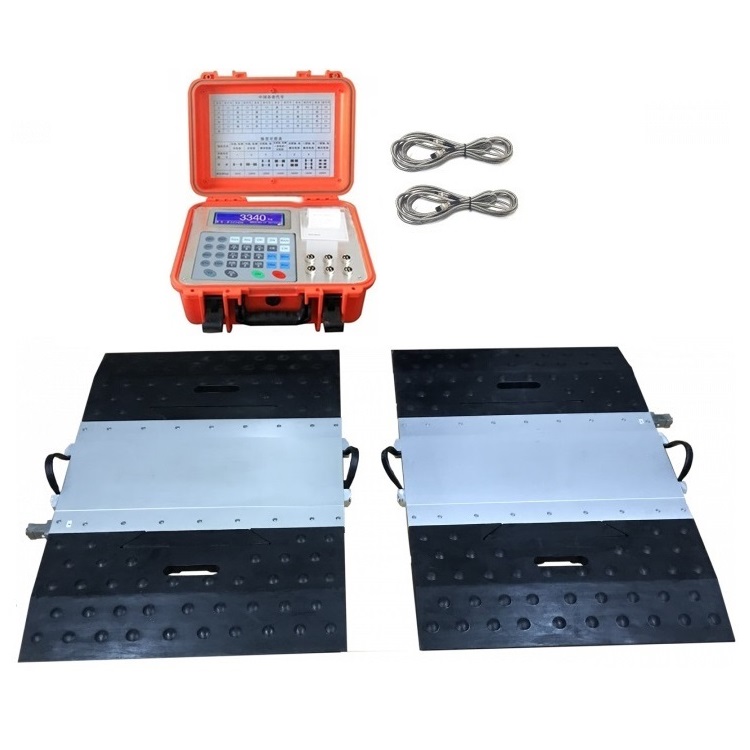

WS1130C
SAINTBOND

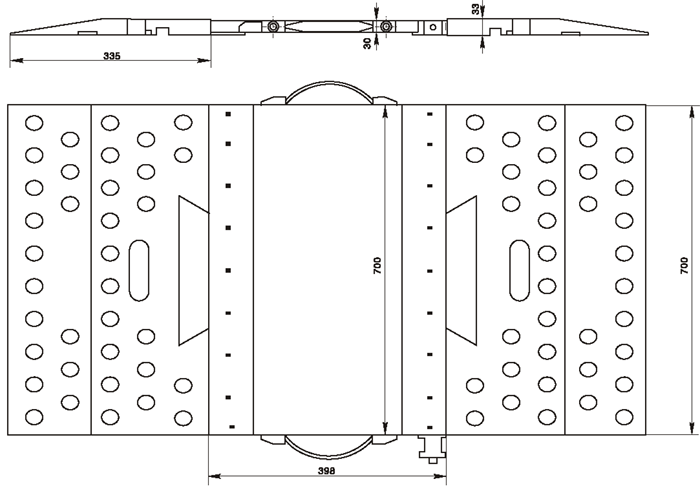

Outline Dimension (mm):
Note: Both cable and spring tube are available on requests.
Features:
◎Light in weight, and convenient transportation.
◎Integral flat plate construction, high frequency in dynamic response, and high precision.
◎Applied special treatment, offering high protection class that are suitable for all kinds of environments.
◎Adopted special material in aero-industry, with good anti-over loading ability.
◎Assembled with rubber handles, avoided destroying of the handles.
◎Provided with spring tube, protecting the cables from being crushed.
◎Mounted with connector and protection block, easy for changing of cables.
◎Completed with dovetail approach, offering tight connection of the approach and the scale.
◎Easy for loading on/off of the vehicles.

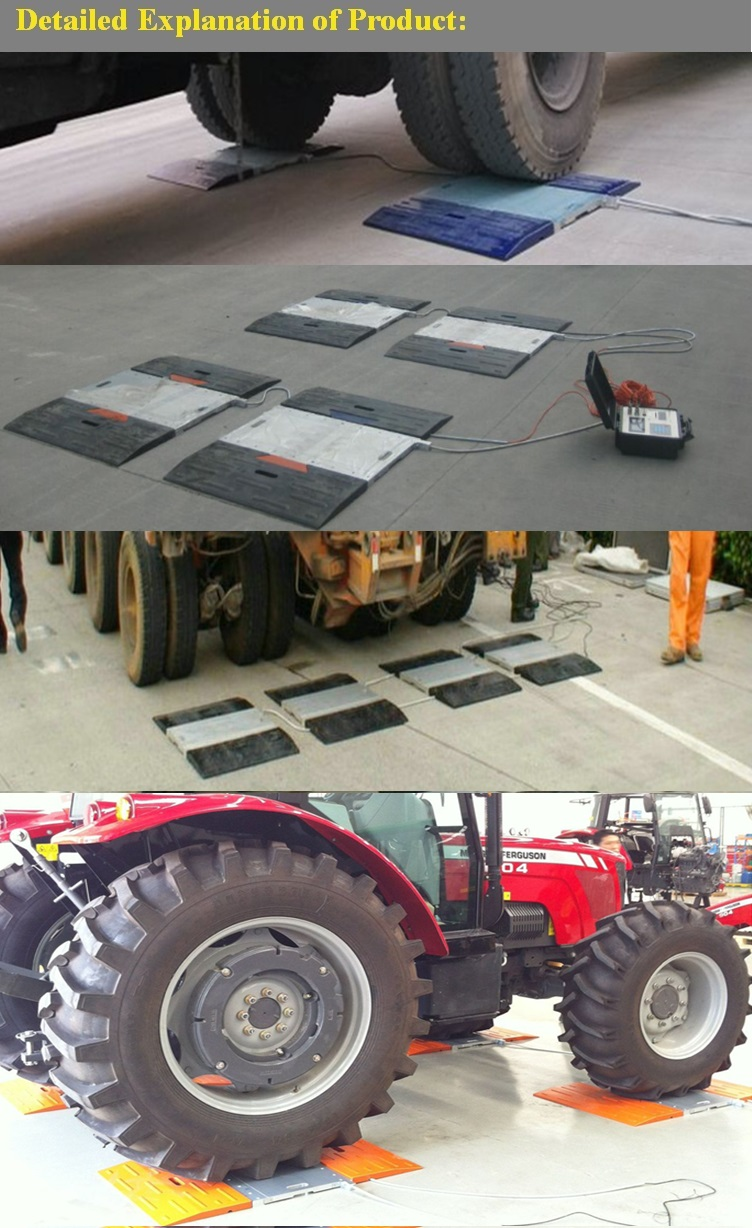

Applications:
◎Load control and weighing for the vehicles.
◎Measuring the weight and barycenter of aeroplane.
◎Measuring weight for special purpose.
Specification:
Output Sensitivity: | 1±0.2m V/V | Temp., Compensated: | -10~+50℃ |
Combined Error : | 0.2(%ld | Temp., Operating: | -40~+80℃ |
Non-Linearity: | 0.2%ld | Excitation, Recommended (V): | 9~15DC |
Repeatability: | 0.1%ld | Excitation, Max.(V): | 20DC |
Input Resistance: | 3120±40Ω | Safe Overload: | 120%FS |
Ouput Resistance: | 2800±10Ω | Ultimate Overload: | 150%FS |
Insulation Resistance: | ≥5000(100VDC) | Protection Class: | IP66 |
Zero Balance : | 4~10%FS | Cable Spec.: | 4-wire shield cable |
Tem. Effect On Sensitivity : | 0.1%FS/10℃ | Max. Load For Single Point (t): | 10t |
Temp. Effect On Zero: | 0.1%FS/10℃ | Rated Capacity (t): | 15t |
