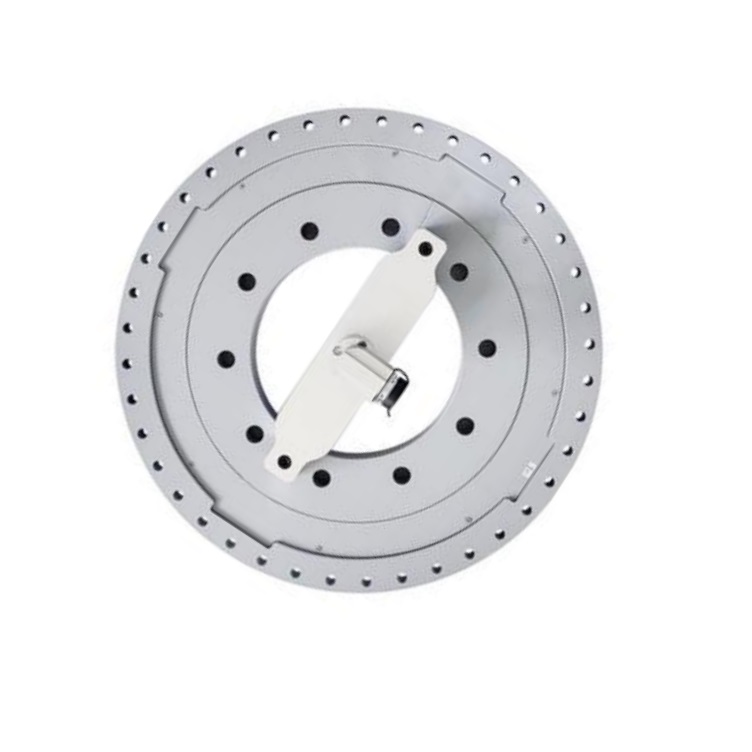

LCX6012
SAINTBOND
Product Introduction:
◎Alloy steel, anodized paint baking;
◎Wireless telemetry system;
◎Force and torque in 3 directions can be measured;
◎Suitable for 8-14 inch tires;
◎Low inter axial sensitivity and low magnetic sensitivity;
◎Not affected by harsh environment;
◎Support 485 / can / USB / Ethernet / EtherCAT;
◎Collect the external load of the vehicle to provide important test and data support for the safe driving performance evaluation of road vehicles. The installation is simple and convenient. It is widely used in the test of racing cars, passenger cars, light, medium and heavy trucks;
Dimension:
Technical Parameter：
Parameter | Reference Value | Parameter | Reference Value |
Capacity Fx=Fy= Fz= Mx=My=Mz | -30000～+30000N 0～60000N -6000～+6000Nm | Insulation Resistance | ＞2000MG/100VDC |
Sensitivity | 0.5～2.0mV/V | Excitation Voltage | 3-15V |
Comprehensive accuracy | 0.1～0.5%F.S | Temp. compensation range | -10～+70℃ |
Nonlinear | 1%F.S | Operating temp. range | -10～+80℃ |
Lagging | 0.5%F.S | Safety load | 150 |
Repeatability | 0.5%F.S | Ultimate Overload | 200%F.S |
Creep (30 Minute) | 0.03%F.S/10℃ | Degree of protection | IP65 |
Temp. Sensitivity Drift | 0.03%F.S/10℃ | Material Science | Alloy steel |
Zero temp. Drift | 0.03%F.S/10℃ | Cable size | Φ6×5000mm |
Input Impedance | 300/750±20Ω | Dimension | Φ620×60mm |
Output Impedance | 300/700±20Ω |
| Product name | LCX6012 Multi Axis Load Cell Manufacturers Suppliers Six Components of Force And Torque Sensor |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
