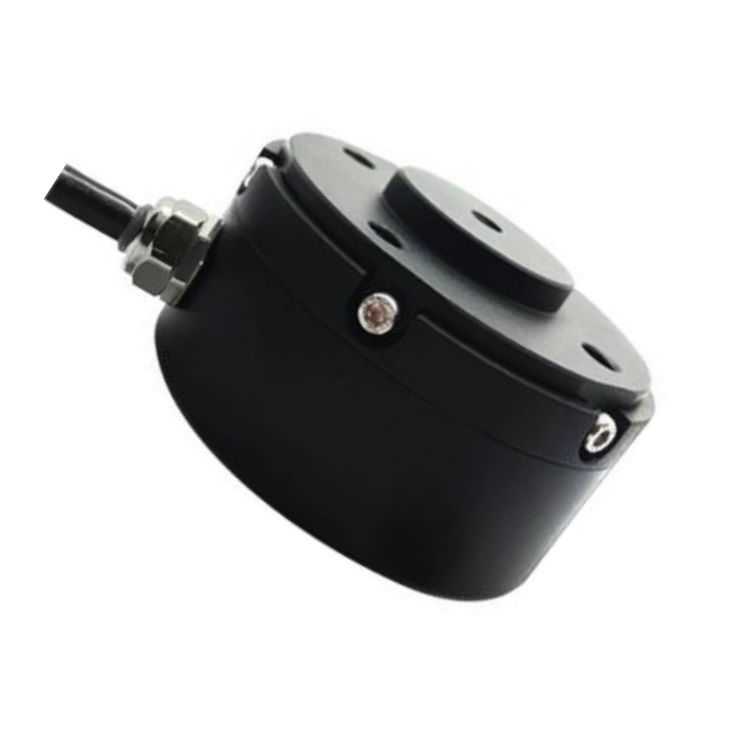

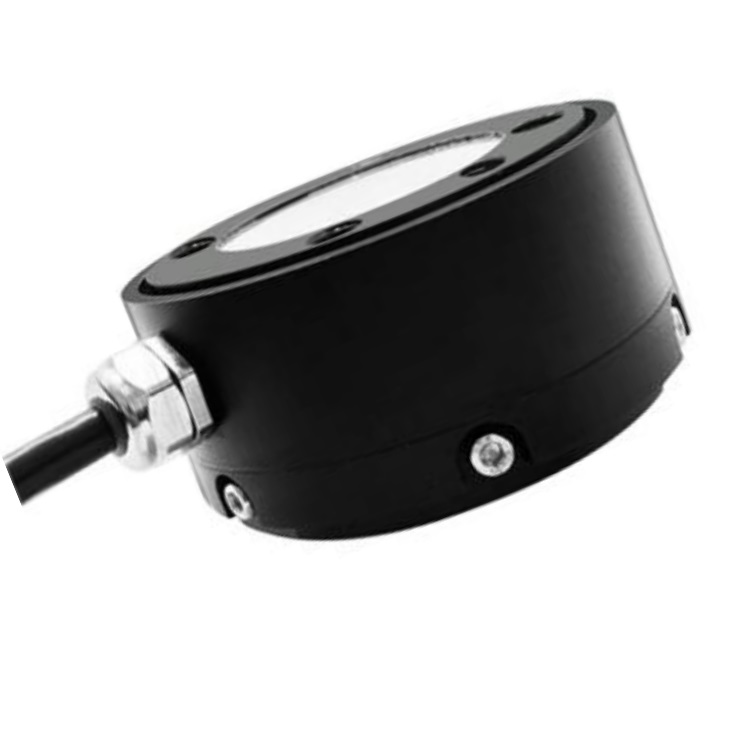

LCX6010
SAINTBOND
Product Introduction:
◎Aluminum alloy material, epoxy treatment;
◎Accuracy≤0.2% F.S;
◎Accuracy≤0.5% F.S;
◎Independent research and development, high cost performance;
◎Analog output, which can be used with collector;
◎Structural decoupling design, small coupling between dimensions;
◎Support 485 / can / USB / Ethernet / EtherCAT;
◎Widely used in industrial robots, cooperative robots, medical robots and industrial automation measurement;
Dimension:
Technical Parameter：
Parameter | Reference Value | Parameter | Reference Value |
Capacity: Fx/Fy/Fz Mx/My/Mz | 200/200/400N 7/7/7Nm | Reference voltage | 10V |
Temp. Effect On Zero | 0.3%of Cn/10K | Operating voltage range | 0...12V |
Sensitivity: Fx/Fy/Fz Mx/My/Mz | 0.49mV/V;0.524mV/V 1.2912mV/V;1.9992mV/V 2.856mV/V;2.99451mV/V | Insulation resistance | ＞2GΩ/50V |
Sensitivity error | ±5% | Rated temp. range | -20～+80℃ |
Effect of temp. on sensitivity | 0.5%of Cn/10K | Operating temp. range | -20～+80℃ |
Nonlinear error | 0.5%of Cn | Storage temp. range | -20～+70℃ |
Lag error | 0.3%of Cn | Safe bearing | 120%of Emax |
Zero Balance | ±0.25mV/V | Safe Overload | 120%of Emax |
Input Resistance | 83±20Ω | Material Science | Aluminium Alloy |
Output Resistance Fx/Fy/Fz/Mx/My/Mz | 356±20/356±20/705±20Ω 361±20/353±20/705±20Ω | Protection Level | IP65 |
| Product name | LCX6010 Multi Axis Load Cell Suppliers Strain Gauge Six-axis Force And Torque Sensors |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
