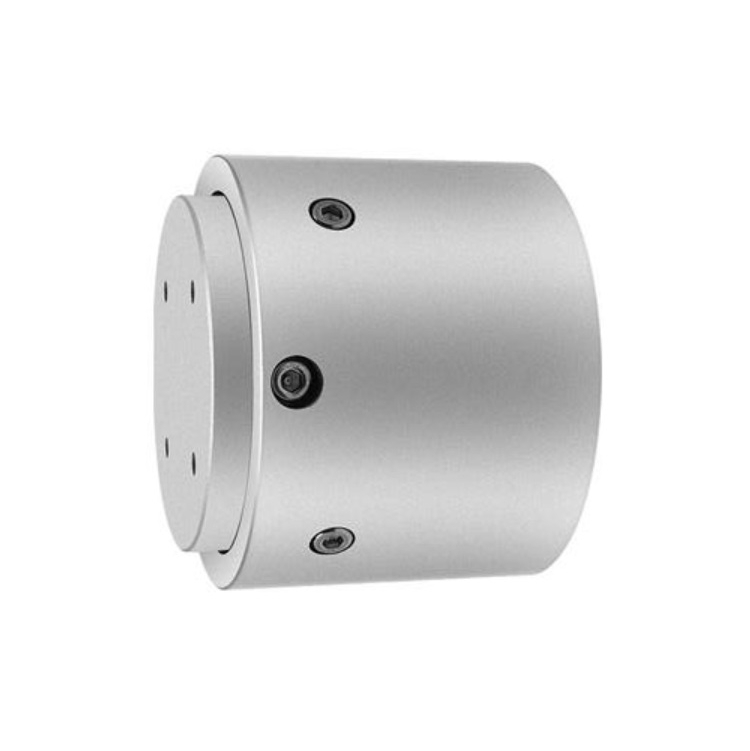

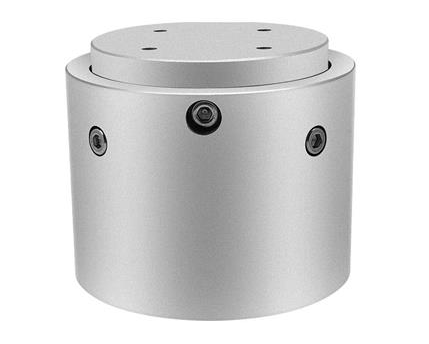

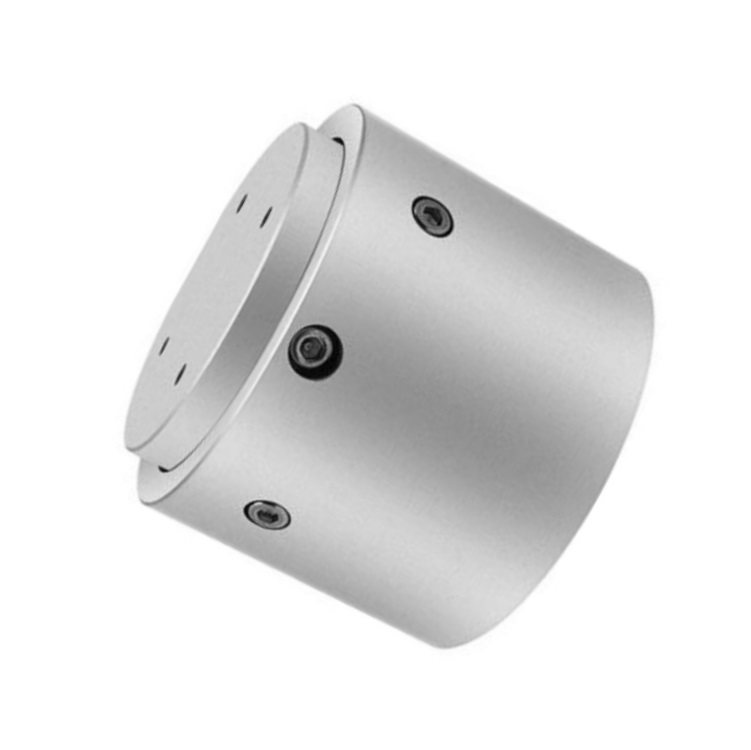

LCX6009
SAINTBOND
Product Introduction:
◎7075 aluminum alloy, nickel oxide treatment;
◎High precision and sensitivity;
◎Small volume and strong ability to resist eccentric load;
◎Independent research and development, high cost performance;
◎Analog output, which can be used with collector;
◎Structural decoupling design, small coupling between dimensions;
◎Support 485 / can / USB / Ethernet / EtherCAT;
◎Widely used in industrial robots, cooperative robots, medical robots and industrial automation measurement;
Dimension:
Technical Parameter：
Parameter | Reference Value | Parameter | Reference Value |
Capacity: Fx/Fy/Fz Mx/My/Mz | 100～500N 1～20Nm | Insulation Resistance | ＞2000MG/100VDC |
Sensitivity Fx/Fy/Fz Mx/My/Mz | 0.5-2.0mV/V | Excitation Voltage | 3-10V |
Comprehensive accuracy | 0.1-0.5%F.S | Temp. Compensation range | -10-+70℃ |
Nonlinear | 0.3%F.S | Operating Temp. range | -20-+80℃ |
Lagging | 0.3%F.S | Safety Load | 120%F.S |
Repeatability | 0.3%F.S | Ultimate Overload | 150%F.S |
Creep (30Minutes) | 0.02%F.S/10℃ | Degree of Protection | IP65 |
Temp. Sensitivity Drift | 0.03%F.S/10℃ | Material Science | Aluminium Alloy |
Zero Temp. Drift | 0.03%F.S/10℃ | Cable size | Φ6×3000mm |
Input Impedance | 350/700±5Ω | Dimension | Φ60×42mm |
Output Impedance | 350/700±5Ω |
| Product name | LCX6009 Multi-component Force Sensors Six-axis Force And Torque Sensors |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
