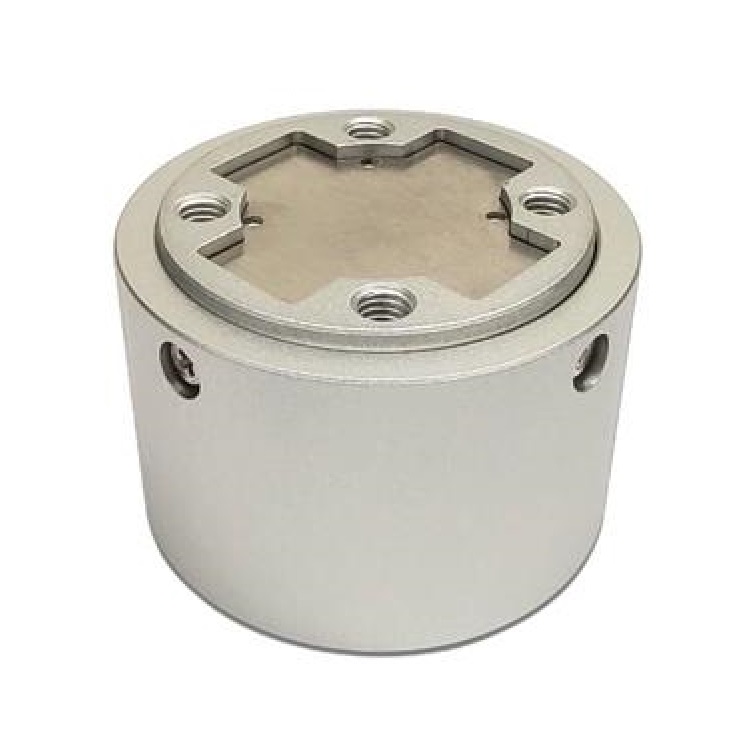

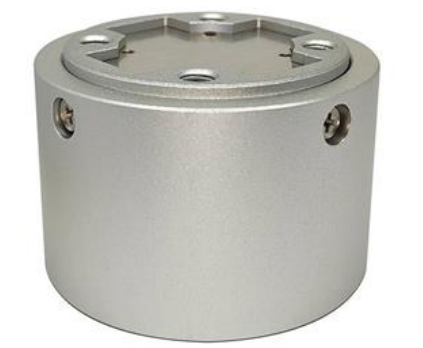

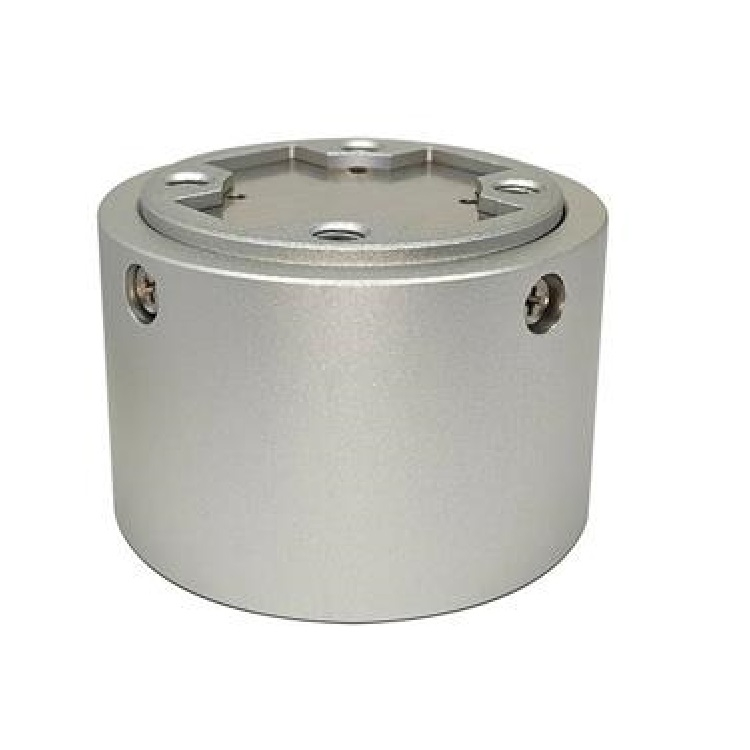

LCX6008
SAINTBOND
Product Introduction:
◎Aluminum alloy, sand blasting;
◎Accuracy≤0.2% F.S;
◎Accuracy≤0.5% F.S;
◎Independent research and development, high cost performance;
◎Analog output, which can be used with collector;
◎Structural decoupling design, small coupling between dimensions;
◎Support 485 / can / USB / Ethernet / EtherCAT;
◎Widely used in industrial robots, cooperative robots, medical robots and industrial automation measurement;
Dimension:
Technical Parameter：
Parameter | Reference Value | Parameter | Reference Value | |
Cap. | Fx/Fy/Fz | 100～500N | Output Impedance | 350/700±5Ω |
Mx/My/Mz | 1～20Nm | Insulation Resistance | ＞2000MG/100VDC | |
Sensitivity | Fx/Fy/Fz | 0.5-2.0mV/V | Excitation Voltage | 3-10V |
Mx/My/Mz | Temp. compensation Range | -10-+70℃ | ||
Comprehensive accuracy | 0.1-0.5%F.S | Operating temp. Range | -20-+80℃ | |
Nonlinear | 0.3%F.S | Safety Load | 120%F.S | |
Lagging | 0.3%F.S | Ultimate Overload | 150%F.S | |
Repeatability | 0.3%F.S | Degree of Protection | 65IP | |
Creep(30min) | 0.02%F.S/10℃ | Material Science | Aluminium Alloy | |
Temp. sensitivity Drift | 0.03%F.S/10℃ | Cable Size | Φ6×3000mm | |
Zero temp. Drift | 0.03%F.S/10℃ | Dimension | Φ60×42mm | |
Input Impedance | 350±5Ω | |||
| Product name | LCX6008 Multi Axis Load Cell Sensors 6 Axis Force Torque Sensors 6 Axis Load Cells |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
