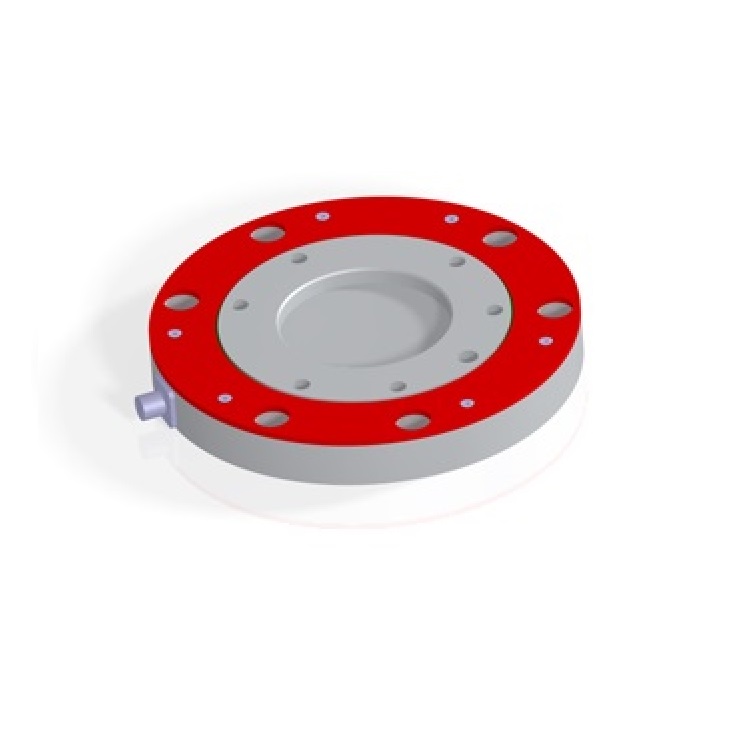

LCX6007
SAINTBOND

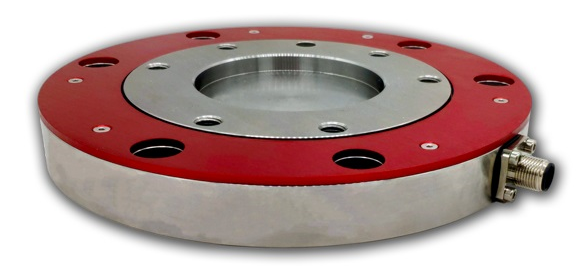

Product Introduction:
◎Based on the principle of strain electrical measurement;
◎Embedded high-precision data acquisition and processing circuit;
◎Directly output the force and torque after decoupling;
◎Derived from aerospace testing technology;
◎Accuracy is better than 0.5% FS;
◎It can be applied to small industrial robots, grinding robots, etc;

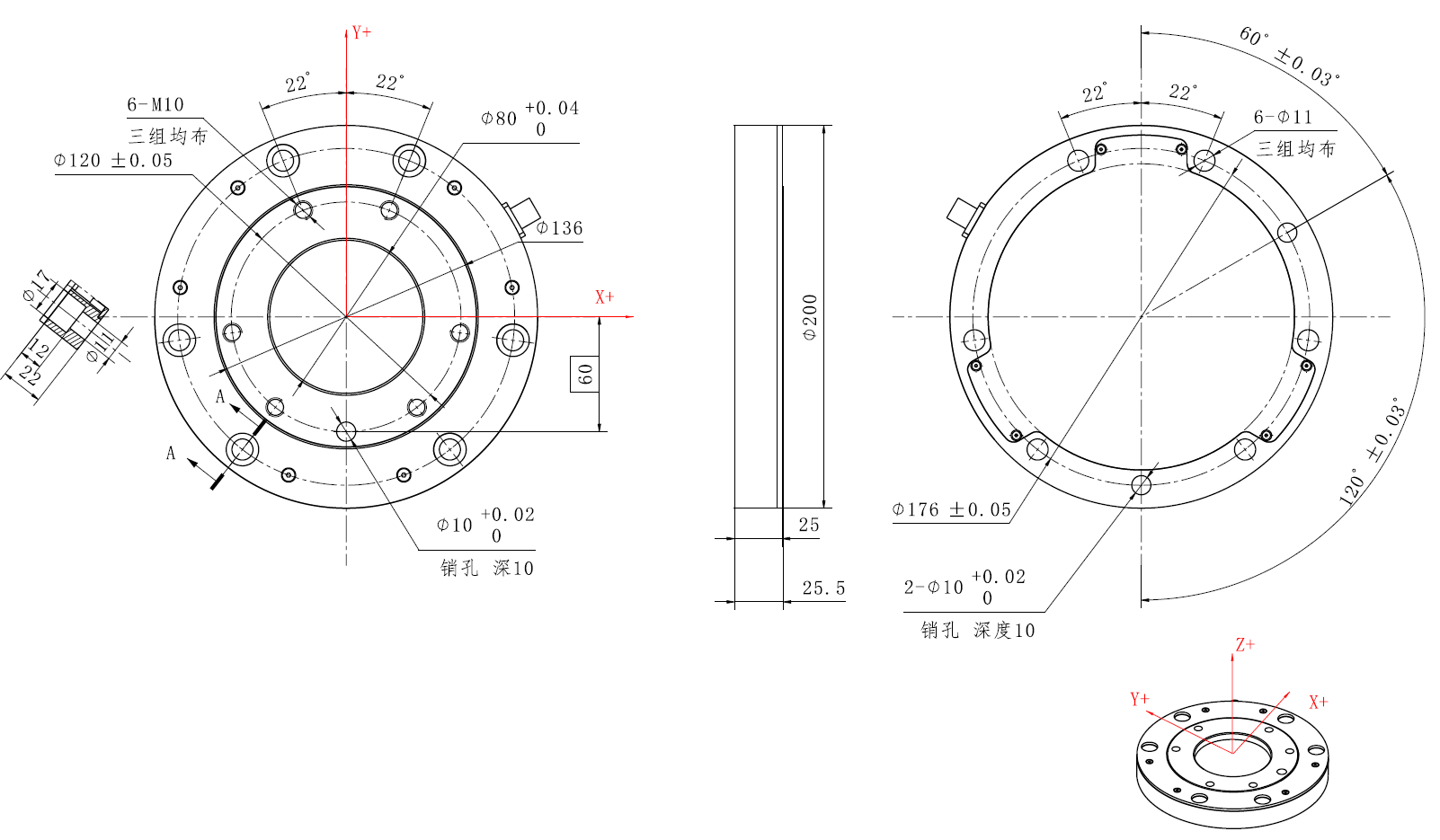

Dimension:
Technical Parameter：
Type | LCX6007A | LCX6007B | LCX6007C | LCX6007D |
Fx,Fy(N) | 800 | 500 | 300 | 1000 |
Fz(N) | 800 | 500 | 300 | 1000 |
Mx,My(Nm) | 850 | 500 | 200 | 150 |
Mz(Nm) | 850 | 500 | 200 | 150 |
Dia.(mm) | 280 | 240 | 240 | 200 |
Height(mm) | 29 | 32 | 32 | 25.5 |
Material | Alloy Steel | Alloy Steel | Alloy Steel | Alloy Steel |
Overload level (% FS) | 300 | 300 | 300 | 300 |
Precision (% FS)** | 0.1 | 0.1 | 0.1 | 0.1 |
Accuracy (% FS)* | 0.5 | 0.5 | 0.5 | 0.5 |
Weight (kg) | 3.8 | 3.8 | 3.8 | 3.8 |
Supply voltage (VDC) | 9~24 | 9~24 | 9~24 | 9~24 |
Operating temp. (℃) | 0~80 | 0~80 | 0~80 | 0~80 |
Sampling resolution (bit) | 24 | 24 | 24 | 24 |
Sampling frequency (Hz) | 1000 | 1000 | 1000 | 1000 |
Degree of protection | IP64 | IP64 | IP64 | IP64 |
Communication interface | RS422/RS485/MODBUS/CAN/EtherCAT/EtherNET/USB/Analog quantity | |||
*Accuracy: deviation from the theoretical true value;
**Accuracy: repeatability deviation;
***Support multiple lead modes and interface forms;
| Product name | LCX6007 Multi-Axis Load & Torque Cells 6 Axis Force Torque Sensor For Industrial |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
