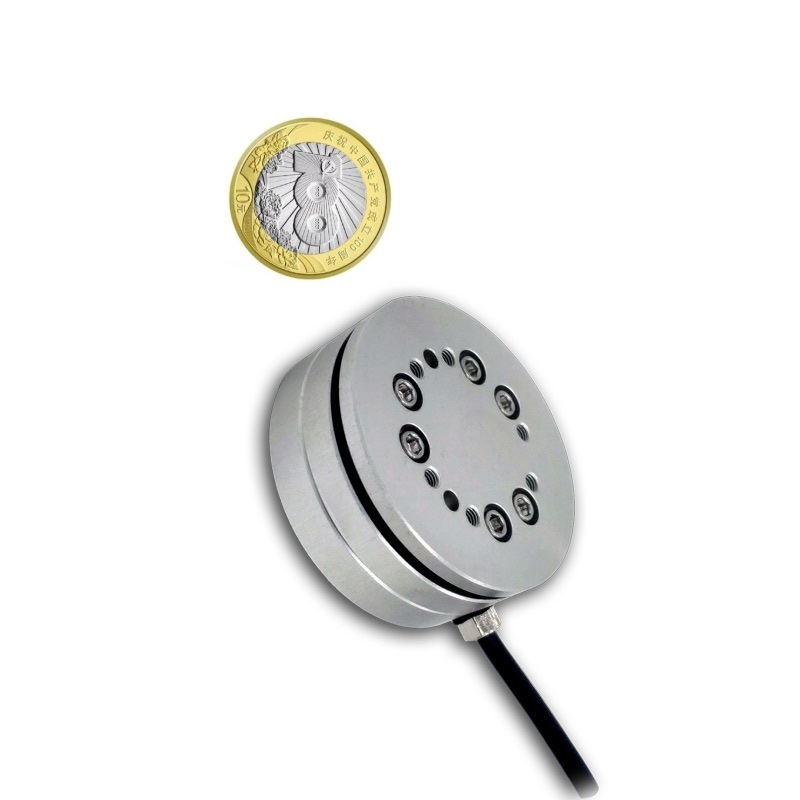

LCX6003
SAINTBOND
Product Introduction:
◎Based on the principle of strain electrical measurement;
◎Embedded high-precision data acquisition and processing circuit;
◎Directly output the force and torque after decoupling;
◎Derived from aerospace testing technology;
◎Accuracy is better than 0.5% FS;
◎It can be applied to small industrial robots, cooperative robots, service robots and medical robots;
Dimension:
Technical Parameter:
Type | LCX6003A | LCX6003B | LCX6003C | LCX6003D |
Fx,Fy (N) | 50 | 150 | 200 | 300 |
Fz (N) | 50 | 150 | 200 | 300 |
Mx,My(Nm) | 2 | 5 | 6.5 | 8 |
Mz(Nm) | 2 | 5 | 6.5 | 8 |
Diameter (mm) | 46 | 46 | 46 | 46 |
Height (mm) | 19.4 | 19.4 | 19.4 | 19.4 |
Overload level (% FS) | 300 | 300 | 300 | 300 |
Accuracy (% FS)* | 0.5 | 0.5 | 0.5 | 0.5 |
Precision (% FS)** | 0.2 | 0.2 | 0.2 | 0.2 |
Sampling resolution (bit) | 24 | 24 | 24 | 24 |
Weight (kg) | 0.06 | 0.07 | 0.08 | 0.09 |
Degree of protection | IP64 | IP64 | IP64 | IP64 |
Operating temperature (℃) | 5~80 | 5~80 | 5~80 | 5~80 |
Sampling frequency (Hz) | 1000 | 1000 | 1000 | 1000 |
Supply voltage (VDC) | 9~24 | 9~24 | 9~24 | 9~24 |
Communication interface | RS422/RS485/CAN/EtherCAT/USB | RS422/RS485/CAN/EtherCAT/USB |
*Accuracy; Deviation from theoretical truth value;
**Accuracy; Repeatability deviation;
Product name | LCX6003 Multi-component Force Sensors Six Dimensional Force Sensor Six-axis Force And Torque Sensors |
Brand | SAINTBOND |
Market | All over the world |
Features | High precision and stable performance |
Advantage | 0EM/ODM |
Sample Lead Time | 5~ 40Days |
Sample price | The price is different according to product capacity |
Custom Design | Welcome |
Form of sale | Factory supply |
