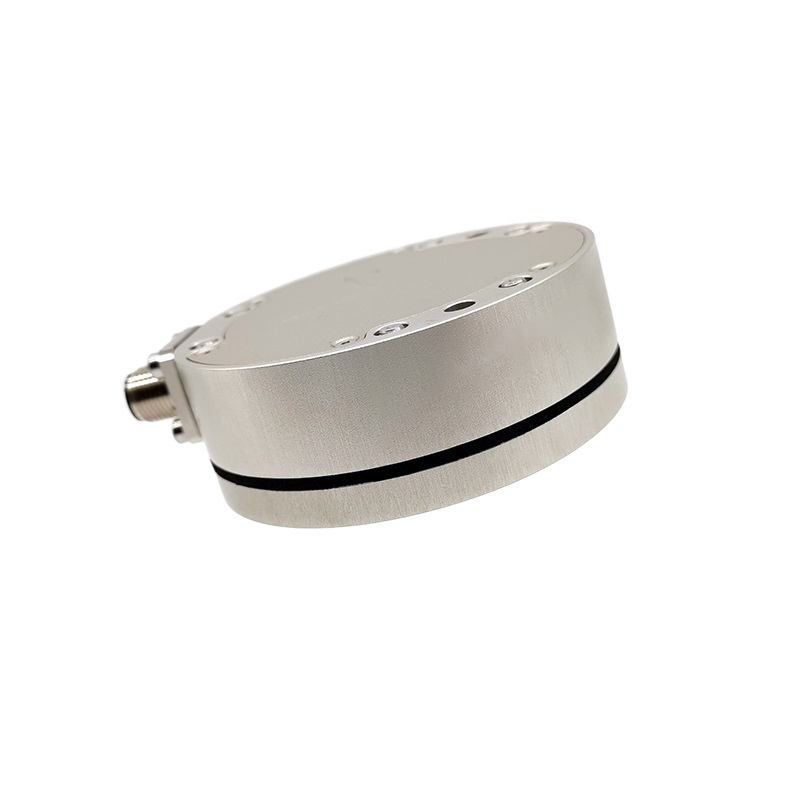

LCX6002
SAINTBOND
Product Introduction:
◎Based on the principle of strain electrical measurement;
◎Embedded high-precision data acquisition and processing circuit;
◎Directly output the force and torque after decoupling;
◎Derived from aerospace testing technology;
◎Accuracy is better than 0.5% FS;
◎It can be applied to small industrial robots, cooperative robots, service robots and medical robots;
Dimension:
Technical Parameter：
Type | Unit | MX6001A | MX6001B | MX6001C | MX6001D | MX6001E |
Fx,Fy | (N) | 50 | 200 | 400 | 500 | 30 |
Fz | (N) | 50 | 200 | 500 | 700 | 30 |
Mx,My | (Nm) | 2 | 8 | 12 | 18 | 1.5 |
Mz | (Nm) | 2 | 8 | 12 | 18 | 1.5 |
Diameter | (mm) | 82 | 82 | 82 | 82 | 82 |
Height | (mm) | 29.5 | 29.5 | 29.5 | 29.5 | 29.5 |
Overload level | (%FS) | 300 | 300 | 300 | 300 | 300 |
Accuracy | (%FS)* | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Accuracy | (%FS)** | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
Sampling resolution | (Bit) | 24 | 24 | 24 | 24 | 24 |
Weight | (kg) | 0.26 | 0.28 | 0.32 | 0.36 | 0.26 |
Protection | IP64 | IP64 | IP64 | IP64 | IP64 | |
Working temp. | (℃) | 5~80 | 5~80 | 5~80 | 5~80 | 5~80 |
Sampling frequency | (Hz) | 1000 | 1000 | 1000 | 1000 | 1000 |
Supply voltage | (VDC) | 9~24 | 9~24 | 9~24 | 9~24 | 9~24 |
Communication interface | RS422/ RS485/EtherCAT/CAN/USB | |||||
*Accuracy; Deviation from theoretical truth value;
**Accuracy; Repeatability deviation;
| Product name | LCX6002 Multidimensional Force Sensor Six Dimensional Force Sensor Six Dimensional Force Sensor |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
