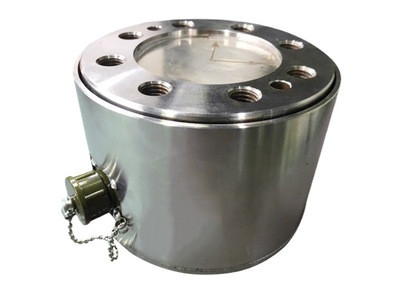

LCX3033
SAINTBOND
Product Introduction:
◎Material: stainless steel;
◎Measuring range fxy: 30KN; Fz:60kN
◎Unidirectional accuracy:≤0.3% FS;
◎Comprehensive accuracy:1% FS;
◎Output signal: 1.0mV/V;

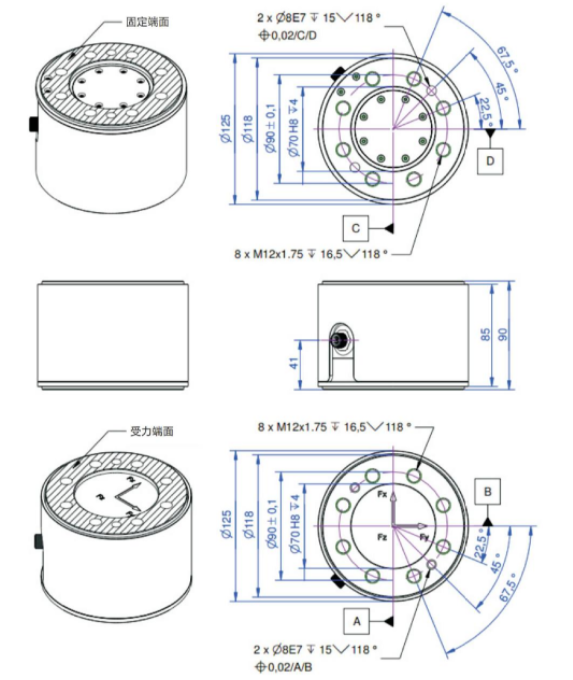

Dimension:
Technical Parameter：
Parameter | Reference Value | Parameter | Reference Value |
Material | Stainless Steel | Insulation Resistance | >5×109Ω |
Diameter× height | Φ125×90mm | Cable length | 3m |
Range x-y-axis | 30kN | Accuracy class | 1.0%FS |
Range z-axis | 60kN | Linear error | 0.3%FS |
Safety overload | 150%FS | Repeatability | 0.2%FS |
Damage overload | 300%FS | Zero temp. shift | 0.1%FS/K |
Sensitivity output | 1.0mV/V | Sensitivity temp. shift | 0.1%RD/K |
Zero output | <±0.1mV/V | Creep within 30 minutes | 0.2%FS |
Excitation voltage Max | 10V | Temp. compensation range | -10...+70℃ |
Input resistance | 350±5Ω | Operating temp. range | -20...+85℃ |
Output resistance | 350±5Ω |
| Product name | LCX3033 Three Axis Forces Load Cell Three-component Quartz Force Ring Sensors |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
