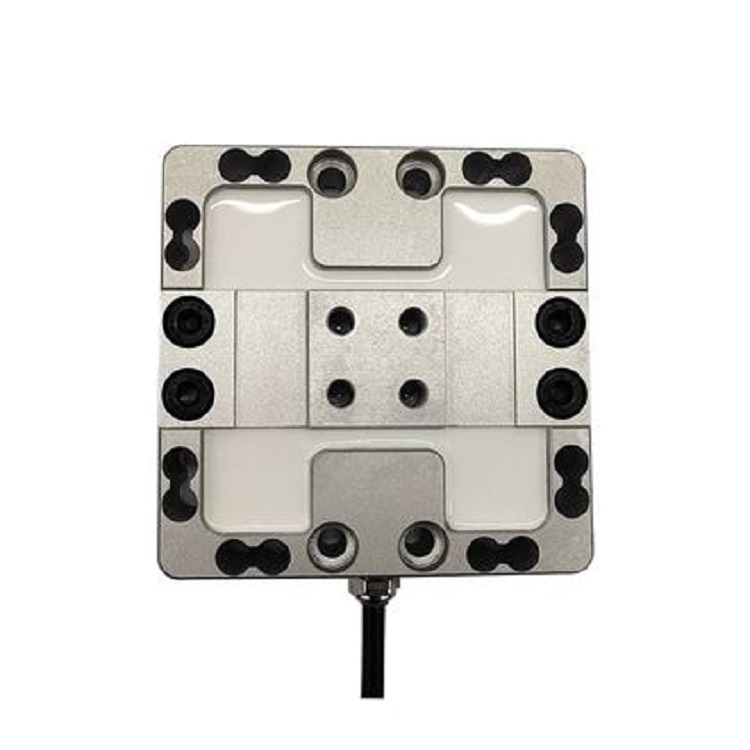

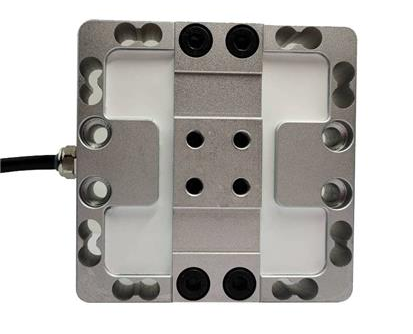

LCX3028 Three Directional Load Cell Transducers Three Dimensional Force Sensor

Availability:
Quantity:
  • LCX3028
  • SAINTBOND

3


Product introduction:

Aluminum alloy, anodized;

High precision and sensitivity;

Small volume and strong anti eccentric load capacity;

Independent research and development, high cost performance;

Structural decoupling design, small coupling between dimensions;

Analog output, which can be used with collector;

Support 485 / can / USB / Ethernet / EtherCAT;

Widely used in precision control of robot arm, surface grinding and polishing, precision carving processing of machining center and precision testing of medical equipment;

Dimension:


Technical Parameter

Parameter

Reference Value

Parameter

Reference Value

Capacity: Fz=Fy=Fx

100500KG

Insulation resistance

2000MG/100VDC

Output sensitivity

0.52.0mV/V

Excitation voltage

310V

Comprehensive accuracy

0.10.5%F.S

Temp. compensation range

-10+40

Nonlinear

0.3%F.S

Operating temp. range

-20+80

Lagging

0.3%F.S

Safe bearing

120%F.S

Repeatability

0.3%F.S

Safe Overload

150%F.S

Creep (30min)

0.05%F.S/10

Protection level

IP65

Temp. sensitivity drift

0.05%F.S/10

Material

Aluminium alloy

Zero temp. drift

0.05%F.S/10

Cable

Φ5×3000mm

Input resistance

350±5Ω

Dimension

120×120×30mm

Output resistance

350±5Ω



圣邦网站1详情页_05

Product name LCX3028 Three Directional Load Cell Transducers Three Dimensional Force Sensor
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply

圣邦网站2详情页-1000_03
