LCX3023
SAINTBOND

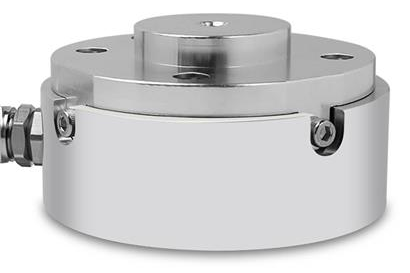

Product Description:
◎Aluminum alloy, anodized;
◎Accuracy ≤0.2% F.S;
◎Accuracy ≤0.5% F.S;
◎Independent research and development, high cost performance;
◎Analog output, which can be used with collector;
◎Structural decoupling design, small coupling between dimensions;
◎Support 485 / can / USB / Ethernet / EtherCAT;
◎Widely used in industrial robots, cooperative robots, medical robots and industrial automation measurement;
Dimension:
Technical Parameter：
Parameter | Reference Value | Parameter | Reference Value |
Capacity: Fx=Fy=Fz | 200N | Insulation resistance | ＞2000MG/100VDC |
Output sensitivity | 0.5～2.0mV/V | Excitation voltage | 3～10V |
Comprehensive accuracy | 0.1～0.5%F.S | Temp. compensation range | -10～+70℃ |
Nonlinear | 0.3%F.S | Operating temp. range | -10～+80℃ |
Lagging | 0.3%F.S | Safe bearing | 120%F.S |
Repeatability | 0.3%F.S | Safe Overload | 150%F.S |
Creep (30min) | 0.02%F.S/10℃ | Protection level | IP65 |
Temp. sensitivity drift | 0.03%F.S/10℃ | Material | Aluminium alloy |
Zero temp. drift | 0.03%F.S/10℃ | Cable | Φ5×3000mm |
Input resistance | 350±5Ω | Dimension | Φ70×37mm |
Output resistance | 350±5Ω |

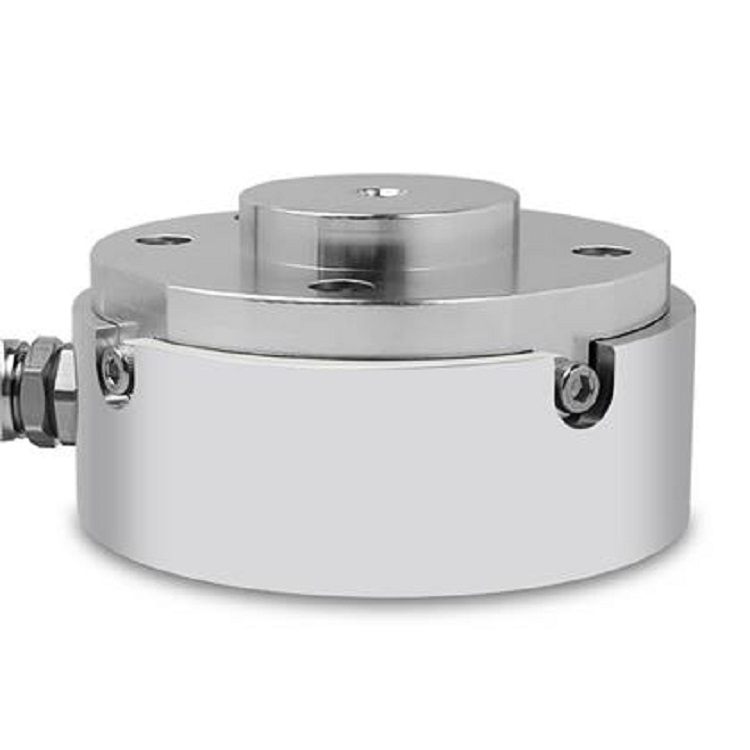

| Product name | LCX3023 Three Component Force Transducers Three Dimensional Force Sensor |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
