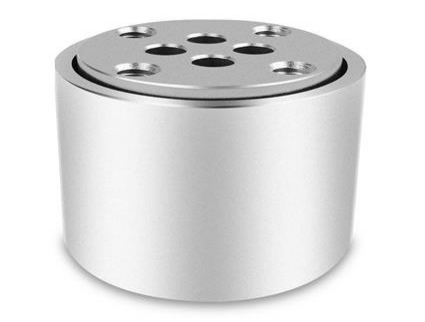

LCX3022 Multi-dimensional Force Sensor Multi-Axis Force Load Cell

Availability:
Quantity:
  • LCX3022
  • SAINTBOND

3


Product introduction:

Aluminum alloy, anodized;

High precision and sensitivity;

Small volume and strong anti eccentric load capacity;

Independent research and development, high cost performance;

Structural decoupling design, small coupling between dimensions;

Analog output, which can be used with collector;

Support 485 / can / USB / Ethernet / EtherCAT;

Widely used in precision control of robot arm, surface grinding and polishing, precision carving processing of machining center and precision testing of medical equipment;

Dimension:


Technical Parameter

Parameter

Reference Value

Parameter

Reference Value

Capacity: Fx=Fy=Fz

550KG

Insulation resistance

2000MG/100VDC

Output sensitivity

0.52.0mV/V

Excitation voltage

3-10V

Comprehensive accuracy

0.1-0.5%F.S

Temp. compensation range

-20+80

Nonlinear

0.2%F.S

Operating temp. range

-10+70

Lagging

0.2%F.S

Safe bearing

120%F.S

Repeatability

0.1%F.S

Safe Overload

150%F.S

Creep (30min)

0.05%F.S/10

Protection level

IP65

Temp. sensitivity drift

0.05%F.S/10

Material

Aluminium alloy

Zero temp. drift

0.05%F.S/10

Cable

Φ5×3000mm

Input resistance

350±5Ω

Dimension

Φ60×40mm

Output resistance

350±5Ω



圣邦网站1详情页_05

Product name LCX3022 Multi-dimensional Force Sensor Multi-Axis Force Load Cell
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply

圣邦网站2详情页-1000_03
