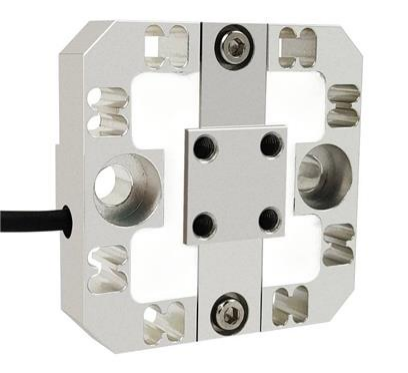

LCX3021
SAINTBOND
Product introduction:
◎Aluminum alloy, anodized;
◎High precision and sensitivity;
◎Small volume and strong anti eccentric load capacity;
◎Independent research and development, high cost performance;
◎Structural decoupling design, small coupling between dimensions;
◎Analog output, which can be used with collector;
◎Support 485 / can / USB / Ethernet / EtherCAT;
◎Widely used in precision control of robot arm, surface grinding and polishing, precision carving processing of machining center and precision testing of medical equipment;
Dimension:
Technical Parameter:
Parameter | Reference Value | Parameter | Reference Value | |
Capacity | Fxy | 200N | Insulation resistance | >2MG/100VDC |
Fz | 500N | |||
Output sensitivity | 0.5-2.0mV/V | Excitation voltage | 3-5V | |
Comprehensive accuracy | 0.1-0.5%F.S | Temp. compensation range | -10~+70℃ | |
Nonlinear | 0.1%F.S | Operating temp. range | -20~+80℃ | |
Lagging | 0.2%F.S | Safe bearing | 120%F.S | |
Repeatability | 0.1%F.S | Safe Overload | 150%F.S | |
Creep (30min) | 0.05%F.S/10℃ | Protection level | IP65 | |
Temp. sensitivity drift | 0.05%F.S/10℃ | Material | Aluminium alloy | |
Zero temp. drift | 0.05%F.S/10℃ | Cable | Φ5×3000mm | |
Input resistance | 350±5Ω | Dimension | 50×50×15mm | |
Output resistance | 350±5Ω |
Product name | LCX3021 Multi-Axis Torque Load Cell Multi-Axis Torque Load Cell |
Brand | SAINTBOND |
Market | All over the world |
Features | High precision and stable performance |
Advantage | 0EM/ODM |
Sample Lead Time | 5~ 40Days |
Sample price | The price is different according to product capacity |
Custom Design | Welcome |
Form of sale | Factory supply |
