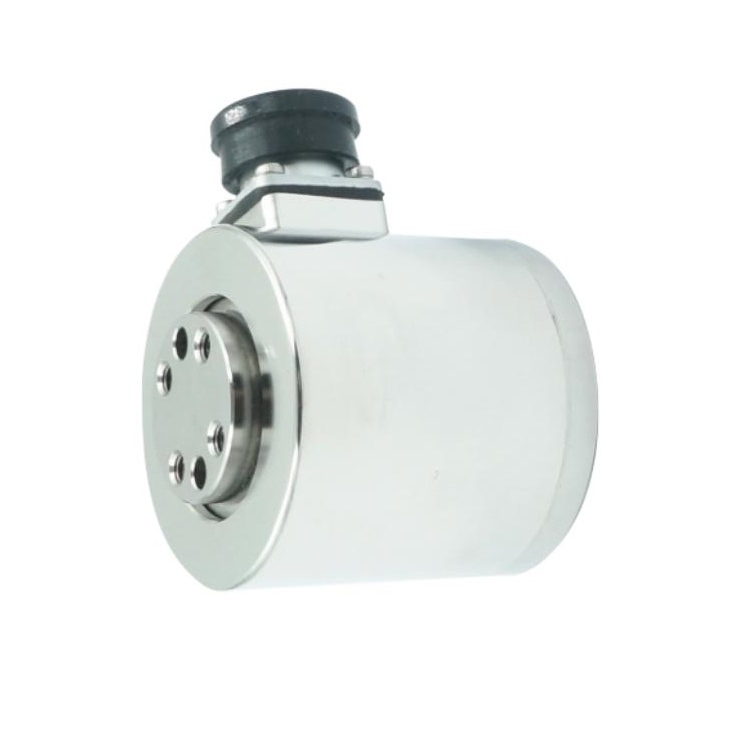

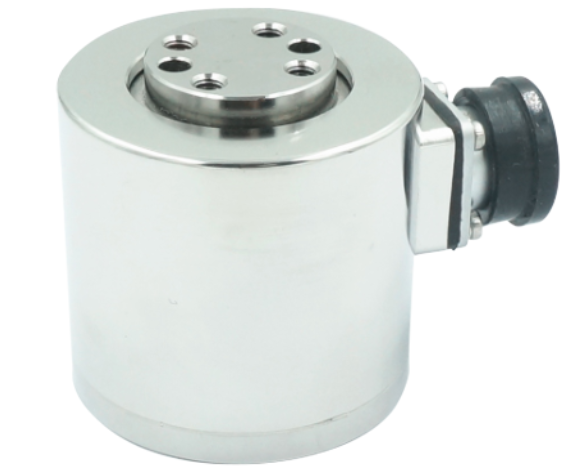

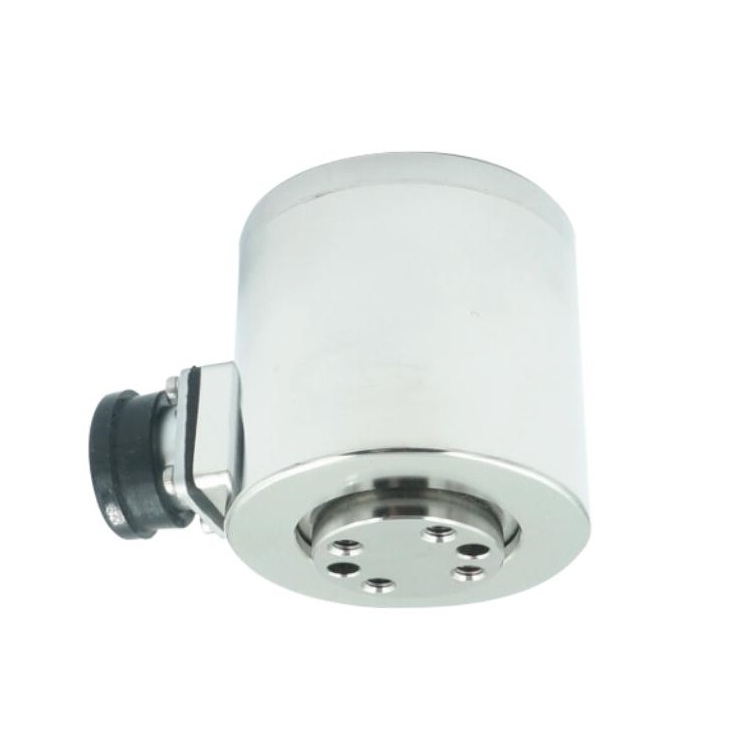

LCX3017
SAINTBOND

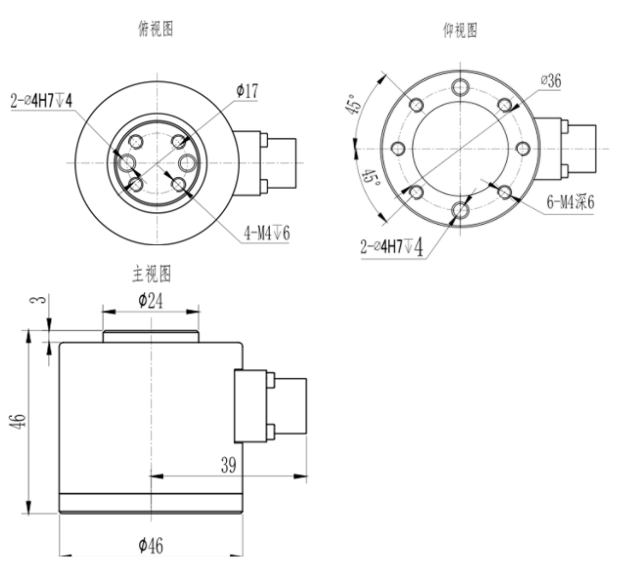

Dimension:
Production Description:
◎High accuracy, high side load tolerance;
◎Easy to install, IP65 protection;
◎Accept custom;
◎Precision control of mechanical arm, grinding and polishing for spherical, carved processing of machining center, precision testing of medical equipment;

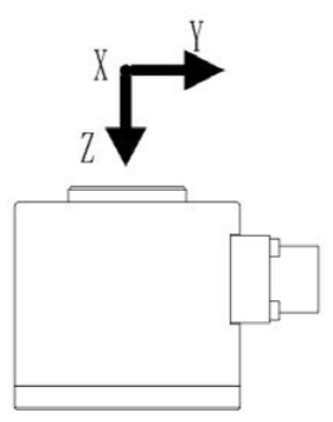

Load Direction:
Technical Parameter:
Capacity(N) | X: 50/100/200/300/500N Y: 50/100/200/300/500N Z:50/100/200/300/500/1000N | Insulation | ≥5000MΩ/100VDC |
Rated output | ≈1.0mV/V | Recommended excitation | 5~12V |
Zero balance | ±2%F.S. | Maximum excitation | 15V |
Non-linearity | 0.3%F.S. | Compensated temp range | -10~40℃ |
Hysteresis | 0.2%F.S. | Operation temp range | -20~75℃ |
Repeatability | 0.2%F.S. | Safe overload | 150%F.S. |
Creep(30min) | 0.5%F.S. | Ultimate overload | 300%F.S. |
Temp.effect on output | 0.1%F.S./10℃ | Cable size | Φ5×4000mm |
Temp.effect on zero | 0.1%F.S./10℃ | Weight approx. | 0.4kg |
Input impedance | 350±10Ω | Material | Alloy/ Stainless Steel |
Output impedance | 350±10Ω | IP Class | IP66 |
| Product name | LCX3017 Multi Axis Load Cell Manufacturers Suppliers Three Dimensional Force Sensor |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
