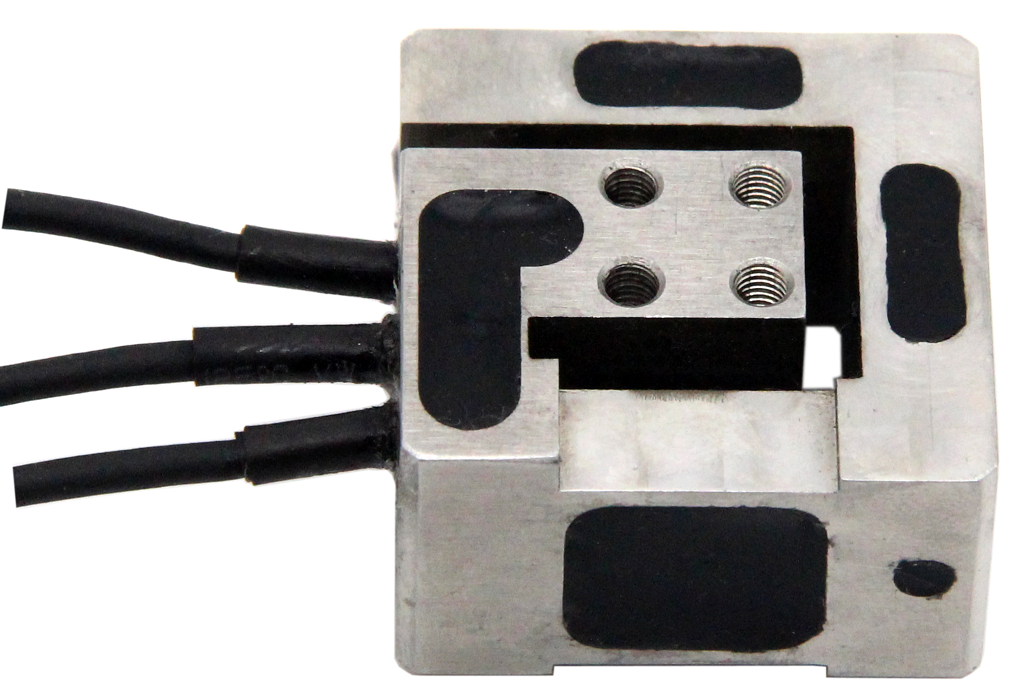

LCX3014
SAINTBOND
Dimension:
Product introduction:
●Aluminum alloy or stainless steel is used to measure the force in three directions of three-dimensional space at the same time; It has the characteristics of small range, stable performance and small volume.
●It is suitable for robot manufacturing, automation equipment, intelligent automation control equipment, intelligent robot, polishing equipment, material stress state analysis, parts working process stress analysis and other fields.
Specification:
Capacity With Aluminum material: | X/Y:1kg-5kg Z:2~10kg | |||
Capacity With stainless steel: | X/Y:5kg-30kg Z:60kg | |||
Rated Output: | 1.0V/V | Safe Temp. Range: | -20ºC to + 70ºC | |
Zero Balance: | ±1% of rated output | Temp. Compensated: | -20ºC to + 40ºC | |
Creep After 30 Minutes: | ±0.3% of rated output | Safe Overload: | 150% | |
Nonlinearity: | ±0.3% of rated output | Input Impedance: | 380±30Ω/730±30Ω | |
Repeatability: | ±0.3% of rated output | Output Impedance: | 350±2Ω/700±3Ω | |
Temp. Effect On Output: | ≤0.03% of applied output/ºC | Rated Excitation: | 12V DC/AC | |
Temp. Effect On Zero: | ≤0.03% of applied output/ºC | Maximum Excitation: | 15V DC/AC | |
| Product name | LCX3014 Multi Component Load Cells Multi-dimensional Force Sensor Multi-Axis Load Cell |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
