| Quantity: | |
|---|---|

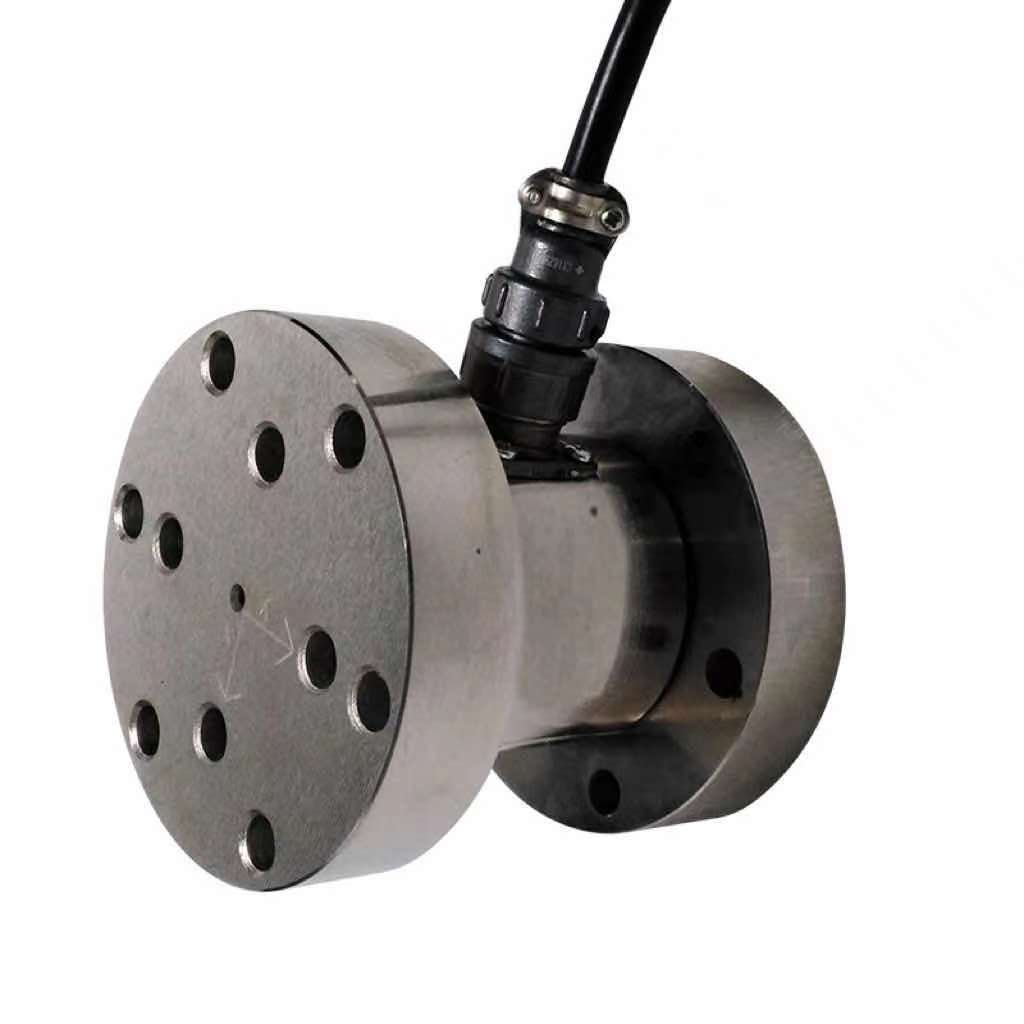

LCX3003
SAINTBOND
Dimension:
Capacity | ΦA | ΦB | N-ΦC | L | H |
X.Y.:100kg~1000kg Z.:200kg-2000kg | 96 | 80 | 6-Φ9 | 100 | 22 |
X.Y.:1500kg~3000kg Z.:3000kg-6000kg | 135 | 108 | 8-Φ13 | 135 | 30 |
Features:
◎Three axis force sensor can be used to measure the force of three directions.
◎The series of sensors have three optional load (per channel)
◎The sensor is made of high quality alloy steel. These materials combined with a variety of weather sealed design, providing a high degree of erosion resistance
◎Based on the principle of resistance strain, can real-time measure the static and dynamic state of the object in three directions of X/Y/Z.
Specification:
Capacity: | X/Y:200kg～3t Z:400kg～6t | ||
Rated Output: | 1.0～1.5mV/V | Safe Temp. Range: | -10ºC to + 70ºC |
Zero Balance: | ±2% of rated output | Temp. Compensated: | -10ºC to + 40ºC |
Creep After 30 Minutes: | ±0.5% of rated output | Safe Overload: | 150% |
Nonlinearity: | ±0.5% of rated output | Input Impedance: | 380±30Ω/730±30Ω |
Repeatability: | ±0.5% of rated output | Output Impedance: | 350±2Ω/700±3Ω |
Temp. Effect On Output: | ≤0.02% of applied output/ºC | Rated Excitation: | 12V DC/AC |
Temp. Effect On Zero: | ≤0.02% of applied output/ºC | Maximum Excitation: | 15V DC/AC |
| Product name | LCX3003 3 Axis Load Cell A Three-Axis Force Fingertip Sensor |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
