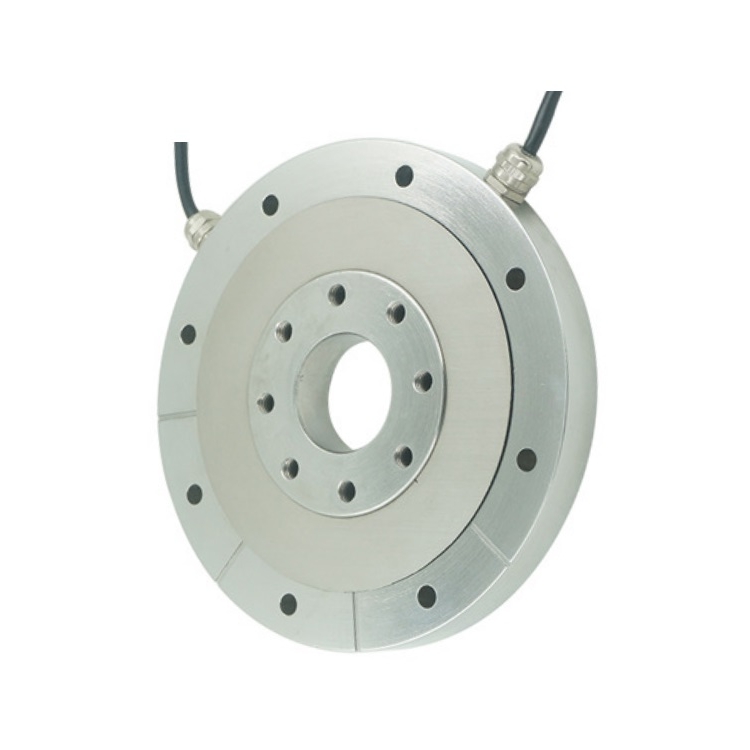

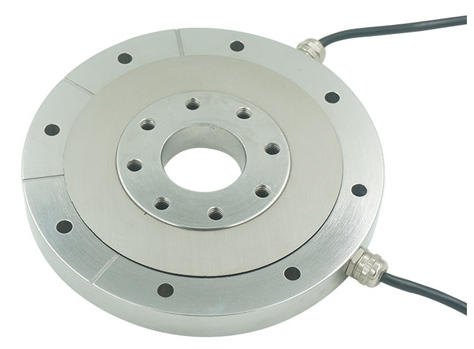

LCX2005
SAINTBOND
◎Compression & Torque Biaxial Sensor;
◎Interference errors of each signal is small;
◎Low profile,easy to install;
◎Dimension could be Customized;

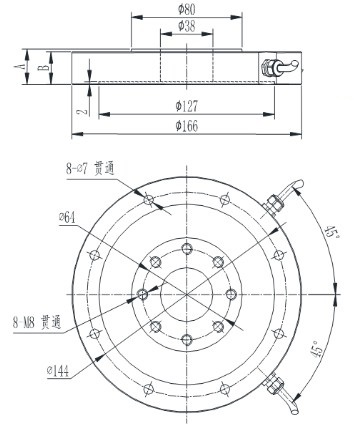

Dimension:
Cap.(kN/N.m) | A | B |
10/300,20/500, 30/700 | 25 | 23 |
50/1000 | 30 | 28 |

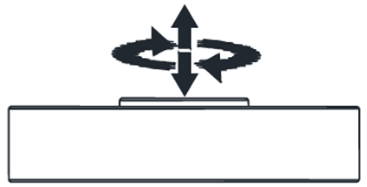

Load Direction:
Technical Parameter:
Rated Load(N/N.m): | F: 10/20/30/50kN | ||
Rated output: | 1.0±10%mV/V | Output impedance: | 700±10Ω |
Zero balance: | ±2%F.S. | Insulation: | ≥5000MΩ/100VDC |
Non-linearity: | 0.1%F.S. | Recommended excitation: | 5~15V |
Hysteresis: | 0.1%F.S. | Maximum excitation: | 20V |
Repeatability: | 0.1%F.S. | Compensated temp range: | -10~40℃ |
Creep(30min): | 0.2%F.S. | Operation temp range: | -20~75℃ |
Temp.effect on output: | 0.05%F.S. | Safe overload: | 150%F.S. |
Temp.effect on zero: | 0.05%F.S./10℃ | Ultimate overload: | 200%F.S. |
Input impedance: | 780±20Ω | Weight approx. | 0.6kg |
| Product name | LCX2005 Multi-axis Torque Sensor Force Dual-axis Sensors Torque Dual-axis Sensors |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
