LCX2003
SAINTBOND

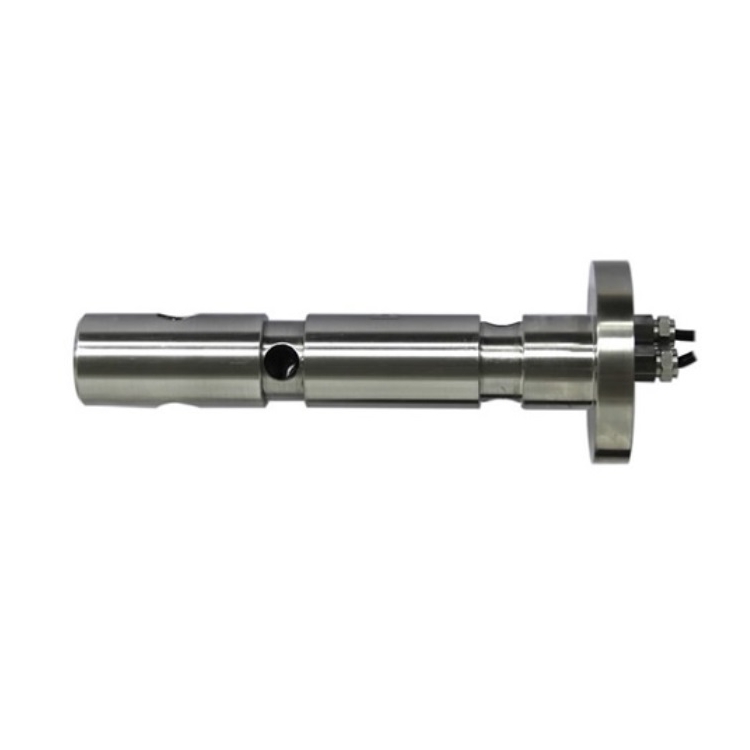

The pivot pin design structure is adopted, and the force values in two directions are measured at the same time. The installation is simple and can directly replace the installation of shaft pin. It is widely used in the force value detection of connecting mechanisms in the fields of aerospace, robot, lifting equipment, automobile and mechanical automation.
Integrated standard signal output can be selected, three wire system or four wire system, with output of 0 ~ 5V, 0 ~ 10V, or 4 ~ 20mA. Power supply: 12V or 24V.
Dimension:
The overall dimensions can be designed and customized according to customer requirements.
Technical Parameter：
Capacity | X:50kg～2t | Zero Temp. drift: | ≤±0.03％F.S/10℃ |
Y:50kg～2t | Sensitivity Temp. drift: | ≤±0.03％F.S/10℃ | |
Zero output: | ≤±1%F.S | Operating Temp. range: | -20℃～+60℃ |
Sensitivity: | 1.0～1.5mV/V | Input impedance: | 380±30Ω/730±30Ω |
Nonlinear: | ≤±0.3%F.S. | Output impedance: | 350±3Ω/700±3Ω |
Lagging: | ≤±0.2%F.S | Insulation resistance: | ≥5000MΩ/100VDC |
Repeatability: | ≤±0.3%F.S | Safety overload: | 120％F.S |
Creep: | ≤±0.3%F.S/30min | Supply bridge voltage: | 5～12VDC(Recommend10VDC) |
Mutual interference: | ≤±2.5%F.S | Material: | Alloy/ Stainless Steel |
| Product name | LCX2003 Multi-Axis Torque Load Cell 2-axis Load Cell Two Axis Torque Force Sensor |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |

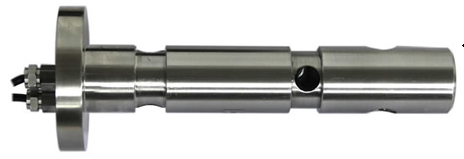

The pivot pin design structure is adopted, and the force values in two directions are measured at the same time. The installation is simple and can directly replace the installation of shaft pin. It is widely used in the force value detection of connecting mechanisms in the fields of aerospace, robot, lifting equipment, automobile and mechanical automation.
