LCT323
SAINTBOND
Description:

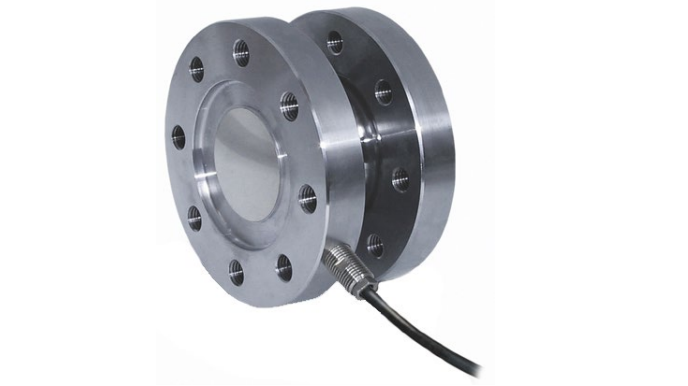

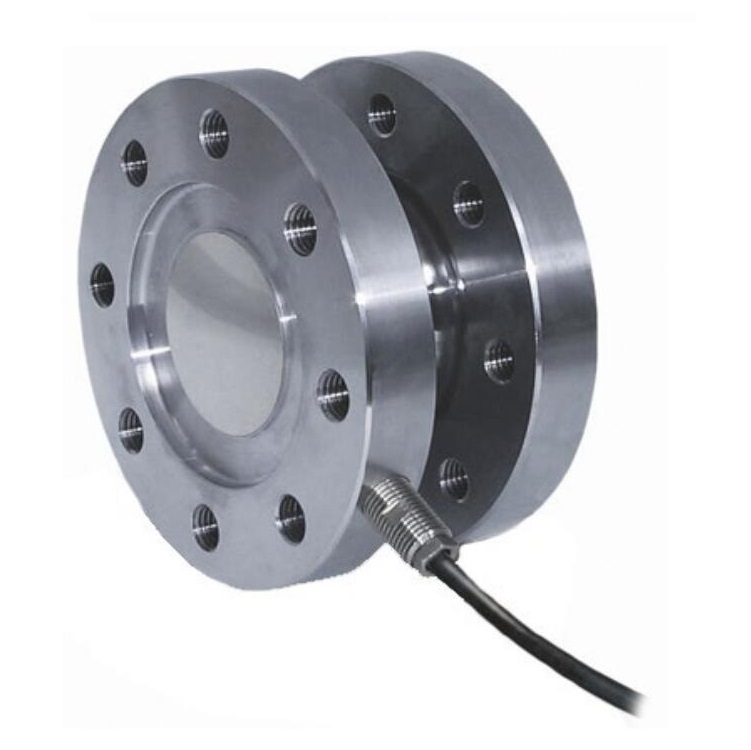

The LCT323 is a flange mount static torque transducer designed to perform torque measurements in clockwise and anticlockwise directions with high precision. The unit is produced from stainless steel and sealed to IP67.
Laser welded ensuring measurement stability even in hard and wet environments. The monolithic body, made entirely of alloy or stainless steel, guarantees high resistance to dynamic stresses which can occur in both directions of measurement. The LCT323 is made in three specific structures to be able to cover a very large range up to 5000Nm.
The main sectors of application vary from industrial such as test benches and material testing machines, to metrological sectors as a reference standard for testing and calibration laboratories, research institutions, etc.
Applications:
●Test machines;
●Process control;

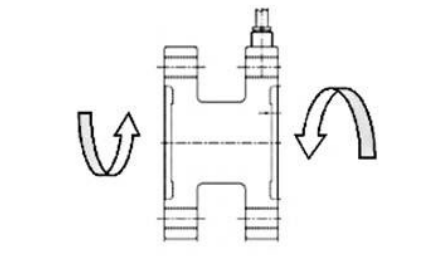

Loading Mode:

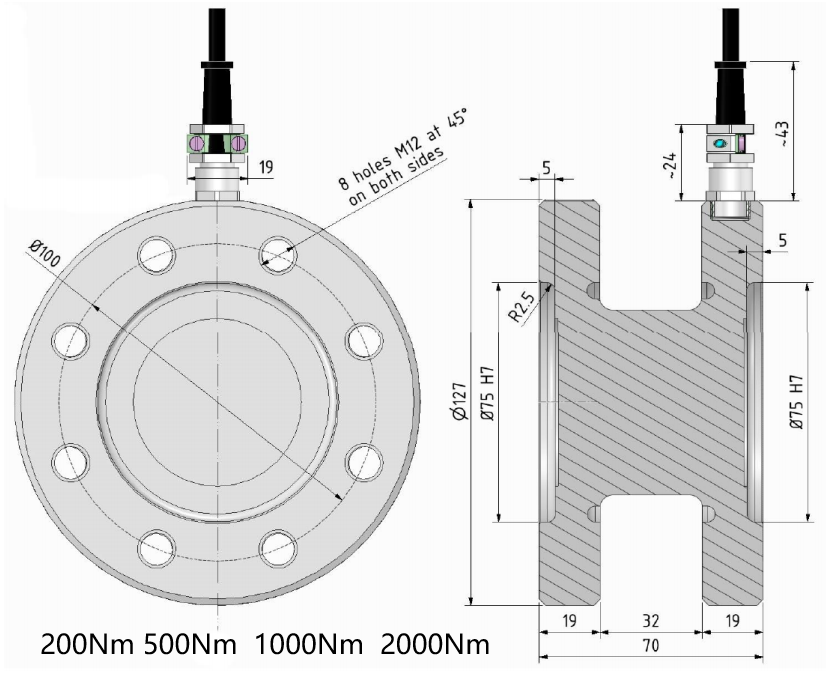

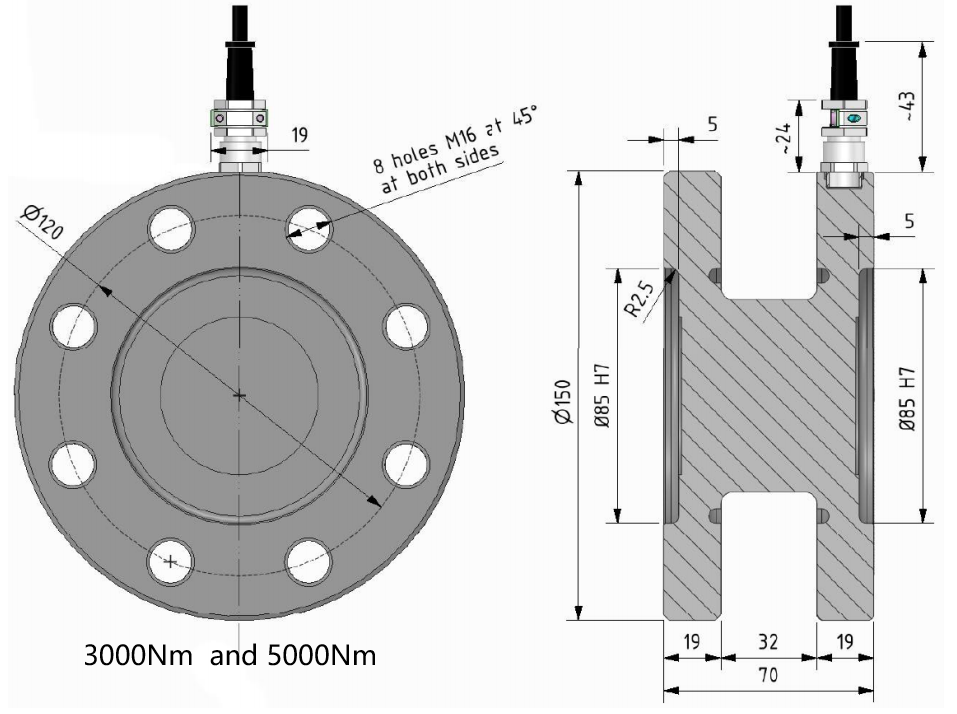

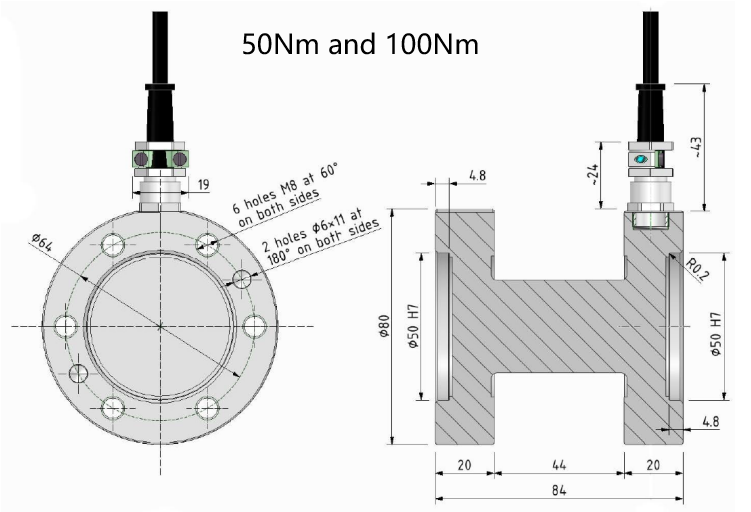

Dimension:
Capacity | 50Nm | 100Nm | 200Nm | 500Nm | 1000Nm | 2000Nm | 3000Nm | 5000Nm |
Max. Axial Permissible Load | 19kN | 19kN | 31kN | 56kN | 83kN | 124kN | 124kN | 124kN |
Max.Lateral Permissible Load | 1.8kN | 1.8kN | 4kN | 8kN | 15kN | 20kN | 20kN | 20kN |
Weight (About) | 1.5kg | 1.5kg | 3kg | 3kg | 3kg | 3kg | 4.5kg | 4.5kg |
Fixing Screw Dia. | M8 | M8 | M12 | M12 | M12 | M12 | M16 | M16 |
Fixing screw Resistance Class | 12.9 | 12.9 | 12.9 | 12.9 | 12.9 | 12.9 | 12.9 | 12.9 |
Fixing Screw Tightening torque | 40Nm | 140Nm | 368Nm | |||||
Technical Parameter：
Capacity | 50/100/200/500/1000/2000/3000/5000Nm | ||
Zero output | ≤±1%F.S | Sensitivity temp. drift | ≤±0.05％F·S/10℃ |
Sensitivity | 1.0～2.0mV/V | Operating temp.range | -20℃～+60℃ |
Nonlinear | ≤±0.5%F.S | Input impedance | 380±30Ω/730±30Ω |
Lagging | ≤±0.5%F.S | Output impedance | 350±2Ω/700±3Ω |
Repeatability | ≤±0.5%F.S | Insulation resistance | ≥5000MΩ/100VDC |
Creep | ≤±0.5%F.S/30min | Safety overload | 120％F·S |
Zero temp. drift | ≤±0.05％F·S/10℃ | Supply bridge voltage | 5～12VDC(recommend10VDC) |
Texture of material | Alloy / Stainless Steel | ||
| Product name | LCT323 Low Capacity Torque Transducers Reaction Torque Sensor Miniature Reaction Torque Sensor |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
