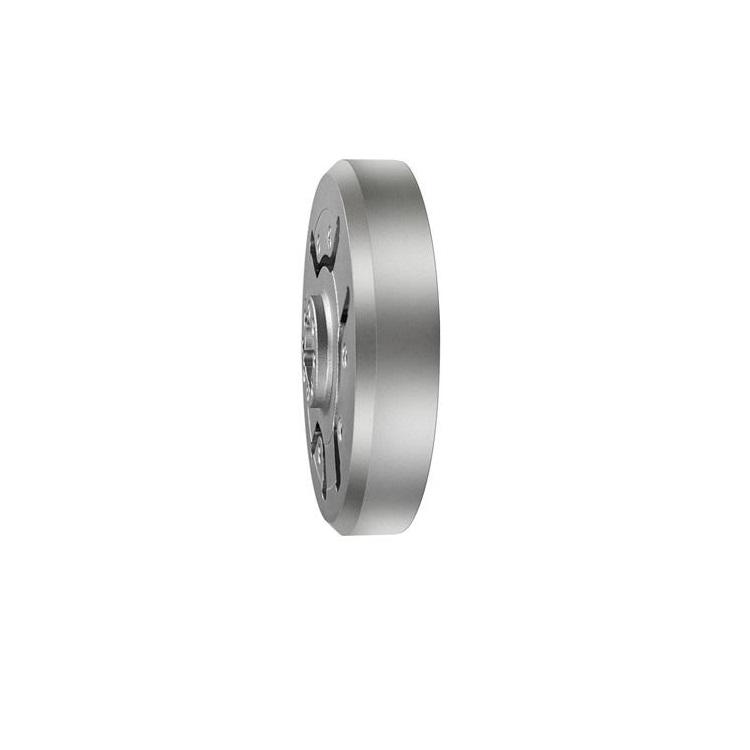

LCT314
SAINTBOND

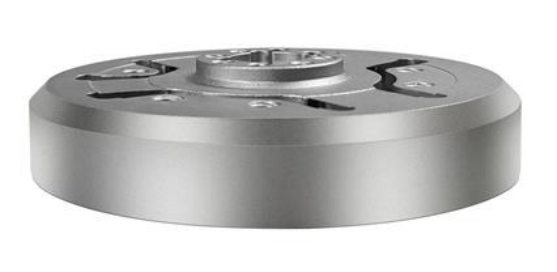

Product Introduction:
◎Aluminum alloy material, sand blasting process;
◎High precision and light weight;
◎Strong overload resistance;
◎Independent research and development, high cost performance;
◎Snalog output, which can be used with collector;
◎Support 485 / can / USB / Ethernet / EtherCAT;
◎Widely used in cooperative robots and medical rehabilitation robots;
Dimension:
Technical Parameter：
Parameter | Numerical Value | Parameter | Numerical Value |
Component range MZ | 70Nm | Insulation Resistance | ＞2000MG/100VDC |
Output sensitivity | 0.5～2.0mV/V | Excitation voltage | 5-10V |
Comprehensive accuracy | 0.1～0.5%F.S | Temp. compensation range | -10～+70℃ |
Nonlinear | 0.05%F.S | Operating temp. range | -20～+80℃ |
Lagging | 0.03%F.S | Safety Load | 120%F.S |
Repeatability | 0.02%F.S | Ultimate Overload | 150%F.S |
Creep (30min) | 0.02%F.S/10℃ | Degree of Protection | IP65 |
Temp. sensitivity Drift | 0.03%F.S/10℃ | Material Science | Aluminium alloy |
Zero temp. Drift | 0.03%F.S/10℃ | Cable size | Φ4×3000mm |
Input Impedance | 350±5Ω | Dimension | Φ85×18mm |
Output Impedance | 350±5Ω |
| Product name | LCT314 Frictional Torque Sensor System Non-rotating Torque Sensors Reaction Static Torque Sensor |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
