LCT311
SAINTBOND
Product Introduction:
◎Based on the principle of strain electrical measurement;
◎Embedded data processing integrated circuit;
◎Derived from aerospace testing technology;
◎High precision, high reliability and high sampling rate;
◎Applicable to robot industry, machining industry and other related industrial automation fields;

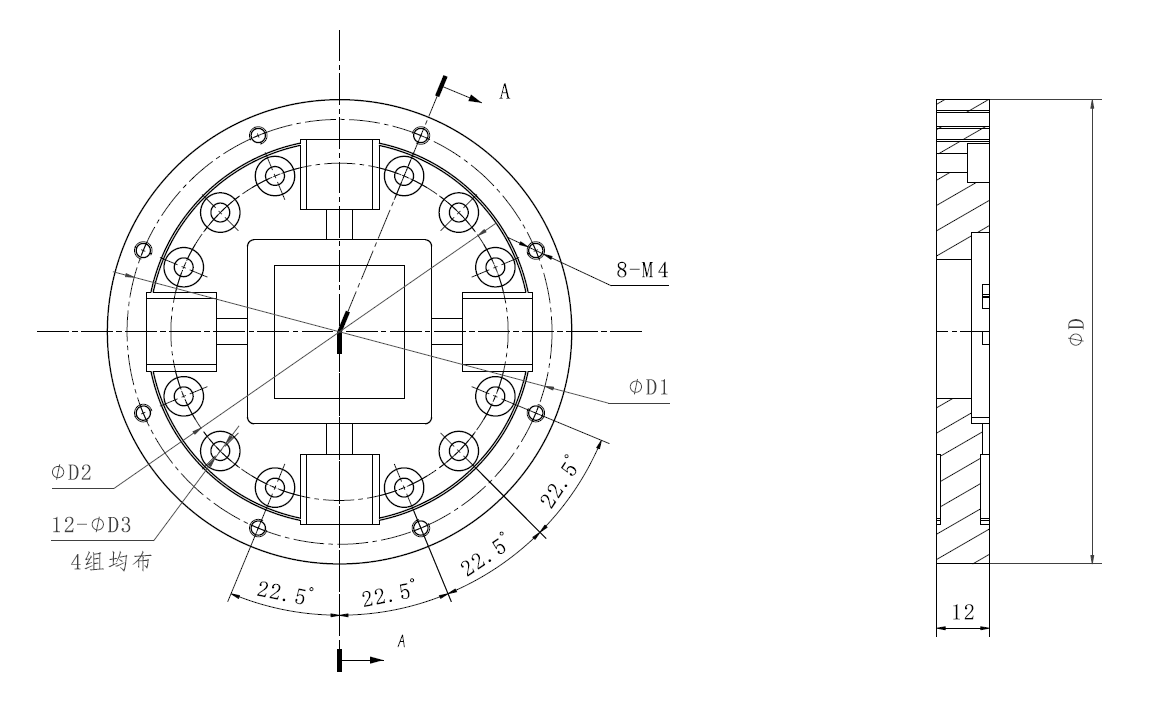

Dimension:
Technical Parameter：
Type | LC311-30 | LC311-80 | LC311-150 | |
Capacity(Nm) | 30 | 80 | 150 | |
Specification(mm) | D | 70 | 86 | 106 |
D1 | 64 | 79 | 97 | |
D2 | 44 | 62 | 77 | |
D3 | 3.2 | 3.2 | 4.3 | |
Material | Alloy Steel | Alloy Steel | Alloy Steel | |
Overload level (% FS) | 200 | 200 | 200 | |
Precision (% FS) | 0.3 | 0.3 | 0.3 | |
Weight (kg) | 0.24 | 0.45 | 0.63 | |
Sampling resolution (bit) | 24 | 24 | 24 | |
Operating temp.(℃) | 5~80 | 5~80 | 5~80 | |
Sampling frequency (Hz) | 1000 | 1000 | 1000 | |
Supply voltage (VDC) | 6.5~12 | 6.5~12 | 6.5~12 | |
Communication Interface | RS485 | RS485 | RS485 | |
| Product name | LCT311 Torque Sensors Sensing Systems Rotary Torque Sensor Reactive Or Static Torque Transducers |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
