LCT307
SAINTBOND

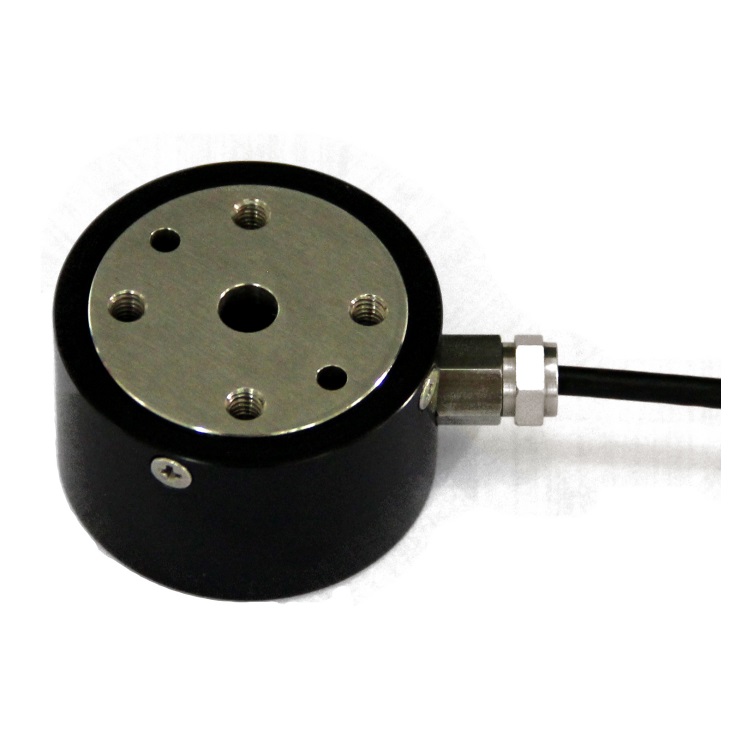

Product Description:
The double flange static torque sensor is small in size and made of stainless steel, which has the characteristics of high precision, good stability, strong anti-interference ability and convenient installation; It is suitable for small range torque measurement of static and discontinuous rotation.
It is widely used in static torque measurement fields such as various torque testers and torque wrenches.

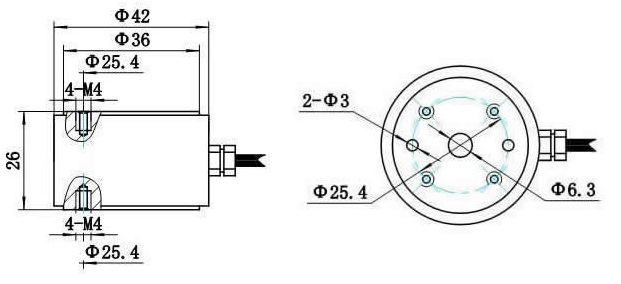

Dimension:
◎The overall dimensions can be designed and customized according to customer requirements.
Technical Parameter:
Capacity | 0～100N.m | Sensitivity Temp. Drift | ≤±0.05％F·S/10℃ |
Zero Balance | ≤±1%F.S | Operating Temp. Range | -20℃～+60℃ |
Rated Output | 1.0～2.0mV/V | Input Impedance | 380±30Ω/730±30Ω |
Nonlinearity | ≤±0.3%F.S | Output Impedance | 350±2Ω/700±3Ω |
Hysteresis | ≤±0.3%F.S | Insulation Resistance | ≥5000MΩ/100VDC |
Repeatability | ≤±0.3%F.S | Safe Overload | 120％F·S |
Creep (30 Minutes) | ≤±0.3%F.S/30min | Supply bridge voltage | 5～12VDC(Recommend10VDC) |
Zero Temp. Drift: | ≤±0.05％F·S/10℃ | Material | Alloy / Stainless steel |
| Product name | LCT307 Wheel Torque Sensors Torque Sensors And Transducers Mininature Static Torque Sensor |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |

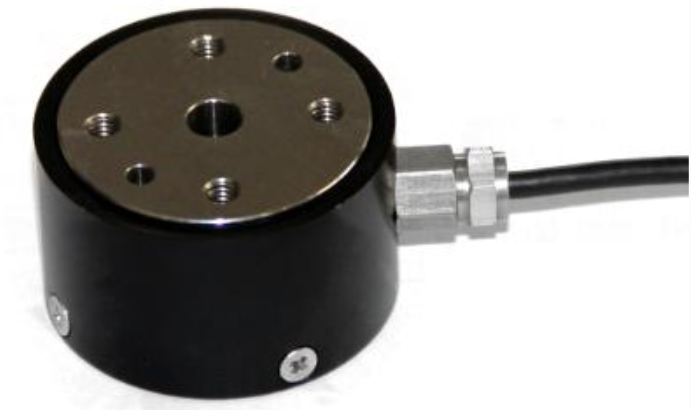

Product Description:
