| Quantity: | |
|---|---|

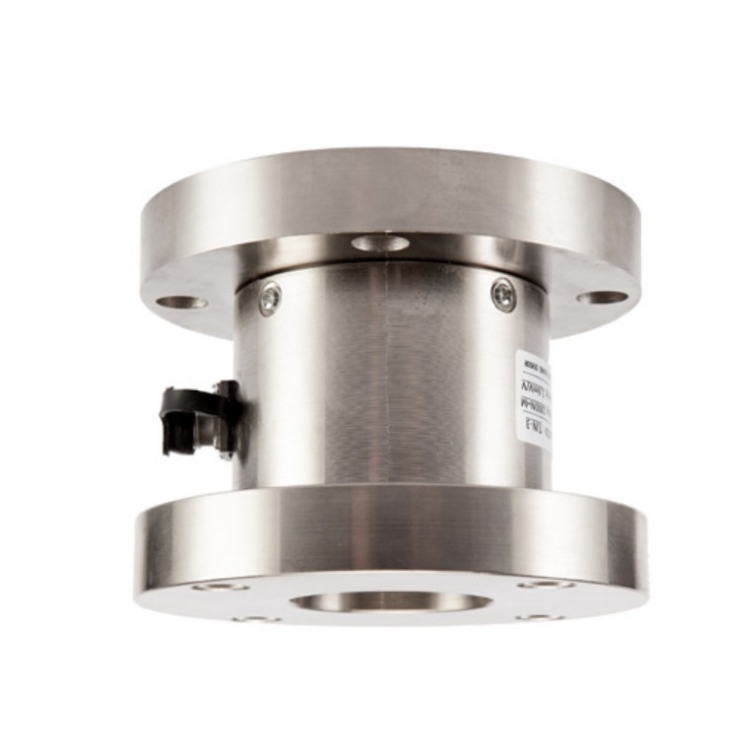

LCT304
SAINTBOND
Capacity:1000/2000/3000/5000N.m
Features:
◎Measuring static torque;
◎High detection precision, good stability;
◎Has the advantages of small volume, light weight, easy to install;
◎Anti-jamming;
Dimensions:
Technical Parameter:
Capacity | 1000N.m～5000N.m | Sensitivity temp. drift | ≤±0.05％F·S/10℃ |
Zero output | ≤±1%F.S | Operating temp.range | -20℃～+60℃ |
sensitivity | 1.0～2.0mV/V | Input impedance | 380±30Ω/730±30Ω |
Nonlinear | ≤±0.5%F.S | Output impedance | 350±2Ω/700±3Ω |
Lagging | ≤±0.5%F.S | Insulation resistance | ≥5000MΩ/100VDC |
Repeatability | ≤±0.5%F.S | Safety overload | 120％F·S |
Creep | ≤±0.5%F.S/30min | Supply bridge voltage | 5～12VDC(recommend10VDC) |
Zero temp. drift | ≤±0.05％F·S/10℃ | texture of material | Alloy / Stainless Steel |
Detailed Details of the Product:
| Product name | LCT304 Torque Measurement Static Vs Dynamic Torque Sensor Torque Transducers |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
