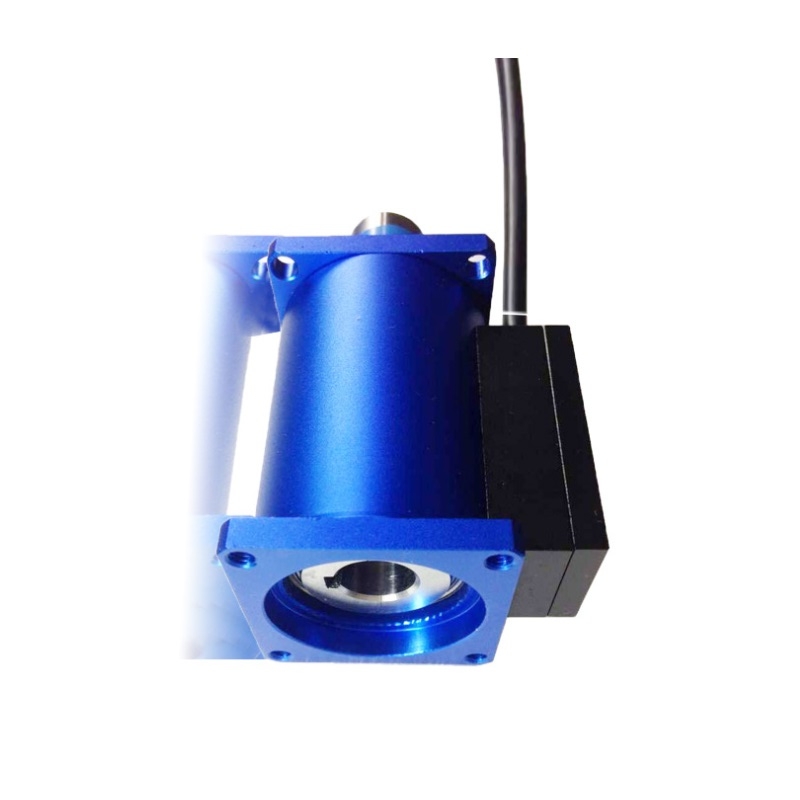

LCT020 Rotary Transformer Torque Sensors Dynamic Flange To Flange Torque Sensor

Product Introduction:

◎Material: stainless steel;

◎Measuring range: 0 ~ 3,5,10,20,30,50100nm;

◎Accuracy: 0.1/0.3% FS;

◎Resistance strain is an integrated product composed of sensitive elements and integrated circuits;

◎Realize power supply and signal output through brush;

◎Middle and low range torque measurement, which can measure the torque values in both positive and negative directions;

◎Both ends are connected by shaft keys, which is convenient for installation and use;

◎The maximum speed of type B shall not exceed 1800rpm;

◎It is widely used in pulling and pulling force tester, rivet machine, welding machine, cold and hot pressing film pasting machine, keyboard button hand sensitivity tester and other tension and pressure testing instruments;

Dimension:

Cap.Nm	A	B	C	D	E	F	G	I	H	J	K	L	M	N
0-50	42	50	35	5	26	73	42	14.5	18	13	4	14.8	63	93
100	62	70	50	7	39	91	62	14.5	18	16	6	18.3	72	122



Technical Parameter：

Parameter	Reference Value	Parameter	Reference Value
Cap.	0~3,5,10,20,30,50,100Nm
Response frequency	100μS	Zero Temp. Drift	0.03%FS/10℃
Texture of material	Stainless Steel	Input Resistance	350,750±10Ω
Sensitivity	1.0±1.5mV/V	Output Resistance	350,700±5Ω
Zero output	±1%FS	Insulation Resistance	≥5000MΩ/100VDC
Nonlinear	±0.1,0.3%FS	Service Voltage	5~10V
Lagging	≤±0.05%FS	Maximum Voltage	12V
Repeatability	≤±0.05%FS	Temp. compensation range	-10~+60℃
Creep(30min)	≤±0.03%FS	Working Temp.	-20~+65℃
Sensitivity temp. Drift	0.03%FS/10℃	Safe Overload	150%
Zero temp. Drift	0.03%FS/10℃	Ultimate overload	200%
Sensitivity temp. Drift	0.03%FS/10℃	Cable Size	φ5.2×3m

Product name	LCT020 Rotary Transformer Torque Sensors Dynamic Flange To Flange Torque Sensor
Brand	SAINTBOND
Market	All over the world
Features	High precision and stable performance
Advantage	0EM/ODM
Sample Lead Time	5~ 40Days
Sample price	The price is different according to product capacity
Custom Design	Welcome
Form of sale	Factory supply
