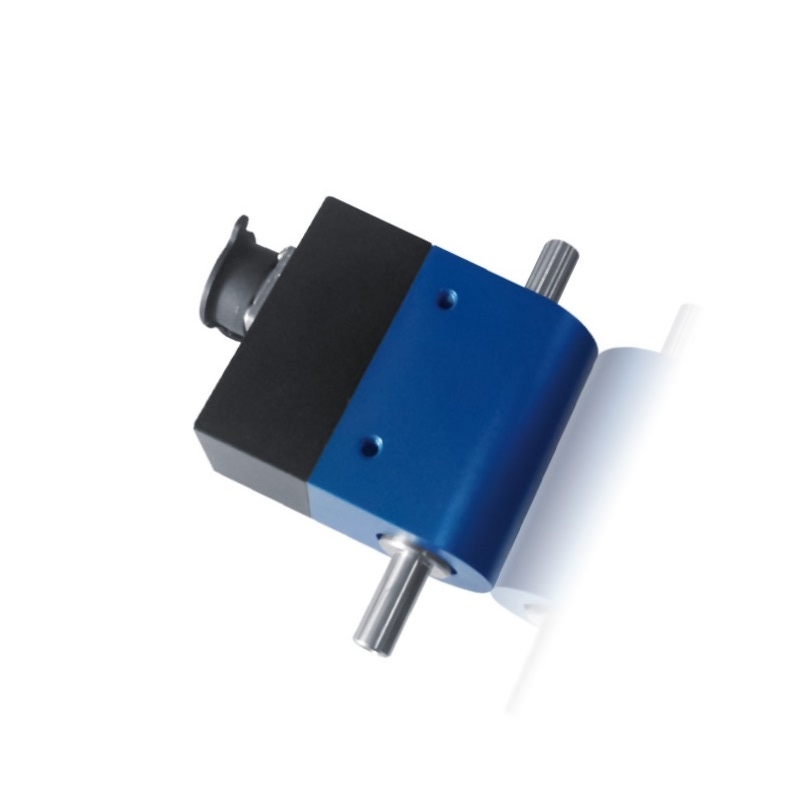

LCT019 Dynamic Torque Sensor Manufacturer And Supplier Dynamic Torque Sensor

Availability:
Quantity:
  • LCT019

  • SAINTBOND

圣邦网站2详情页-1000_01 - 副本


Product Introduction:

Material: stainless steel or alloy steel;

Measuring range: 0.1,0.2,0.3,0.5,1~5nm;

Accuracy: 0.1 / 0.3% FS;

Resistance strain is an integrated product composed of sensitive elements and integrated circuits;

High precision, stable and reliable performance;

Output forward and reverse torque signals, with both ends connected by keys;

There are no wear parts such as collector ring, which can run at high speed for a long time;

The maximum speed shall not exceed 1800 rpm;

It is widely used in pull pressure testing instruments such as plug-in force tester, rivet machine, welding machine, cold and hot press film pasting machine, keyboard button hand sensitivity tester, as well as automation equipment and testing field;

Dimension:


Technical Parameter

Parameter

Reference Value

Parameter

Reference Value

Capacity

0.1,0.2,0.3,0.5,1~5Nm

Response Frequency

100μS

Input resistance

350±10Ω

Material

Alloy/Stainless Steel

Output resistance

350±5Ω

Sensitivity

1.0~1.5mV/V

Insulation resistance

≥5000MΩ/100VDC

Zero Output

±1%FS

Service voltage

10V

Nonlinear

±0.1,0.3%FS

Maximum voltage

12V

Lagging

≤±0.05%FS

Temp. compensation range

-10~+60℃

Repeatability

≤±0.05%FS

Working temperature

-20~+65℃

Creep(30min)

≤±0.03%FS

Safe Overload

150%

Sensitivity temp. Drift

0.03%FS/10℃

Ultimate overload

200%

Zero Temp. Drift

0.03%FS/10℃

Cable size

φ5.2×3m

圣邦网站1详情页_05

Product name LCT019 Dynamic Torque Sensor Manufacturer And Supplier Dynamic Torque Sensor
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply

圣邦网站2详情页-1000_03
