LCT015
SAINTBOND
Product Introduction:
◎Measuring range: fxy = 10kN, 25kn, customizable; Fz=40kN,50kN； Mz=100Nm,200Nm；
◎Accuracy: 0.1% FS / 0.2% FS;
◎Shaft type dynamic torque sensor;

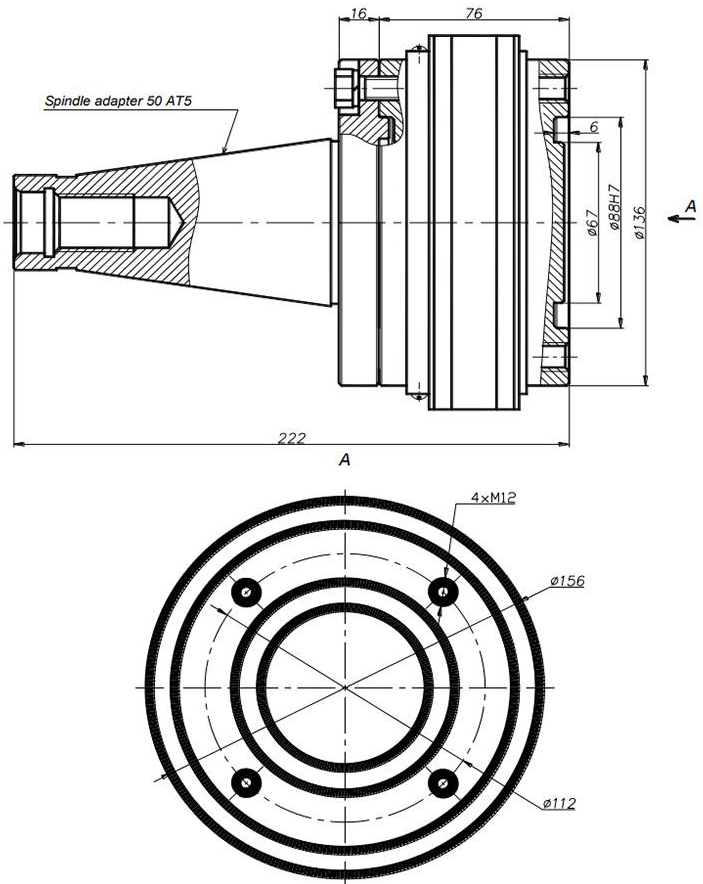

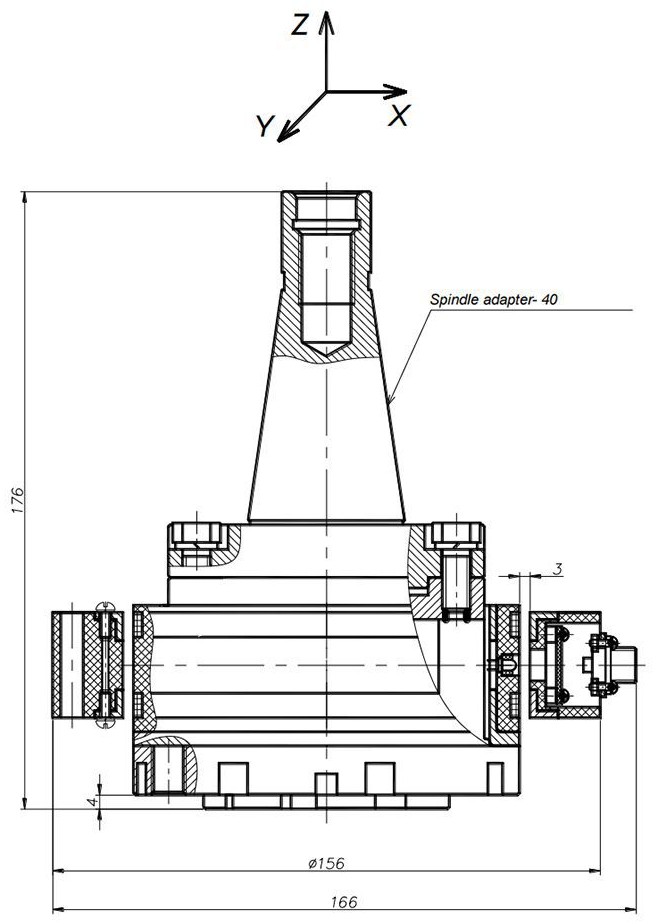

Dimension:
Technical Parameter：
Product Description | |||
Force, Torque | Spindle adapter type Sensor type | Reference Value | Capacity |
Fx | Spindle Adapter-40 | 10000N | 10000N |
Fy | 10000N | 10000N | |
Fz | 40000N | 40000N | |
Mz | 100Nm | 100Nm | |
Fx | Spindle Adapter-45 | 25000N | 25000N |
Fy | 25000N | 25000N | |
Fz | 50000N | 50000N | |
Mz | 200Nm | 200Nm | |
Parameter | Reference Value | ||
Nonlinear | ≧±1.0% | ||
Axial force zero temperature drift | ≧±0.2%/10℃ | ||
Crosstalk | ≧±5.0% | ||
Measurement frequency range | ≦0...100(-1.5dB)Hz | ||
Excitation voltage | 12...30V (DC) | ||
Power waste | ≧5W | ||
Interface | USB2.0 | ||
Data transfer rate | 100Kbps | ||
Input output isolation ionization | 2kHz | ||
Power waste | + | ||
Speed measurement system | 0...+60℃ | ||
Degree of protection | IP40 | ||
Force limit FX, FY, FZ | 120% | ||
Bending moment limit MX, my | 1500Nm | ||
Torque limit M2 | 500Nm | ||
| Product name | LCT015 Dynamic Torque Sensors Rotating Torque Meters Rotational Torque Sensors |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
