Availability: | |
---|---|
Quantity: | |
LCT001
SAINTBOND
Product Description:
1.Dynamic torque sensor type;
2.Non-contact;
3.Range: 5-100000N.m;
4.Application: Test of torque and power in many different fields;
Specifications:
Torque accuracy | <±0.5 % F·S, <±0.25 % F·S, <±0.1 % F·S(Optional) |
Frequency response | 100μs |
The nonlinear | <±0.1 % F·S |
Repeatability | <±0.1% F·S |
Return difference | <0.1 % F·S |
Zero time drift | <0.2 % F·S |
Zero temperature drift | <0.2 % F·S /10℃ |
Using temperature | -10 ~ 50℃ |
Storage temperature | -40 ~ 70℃ |

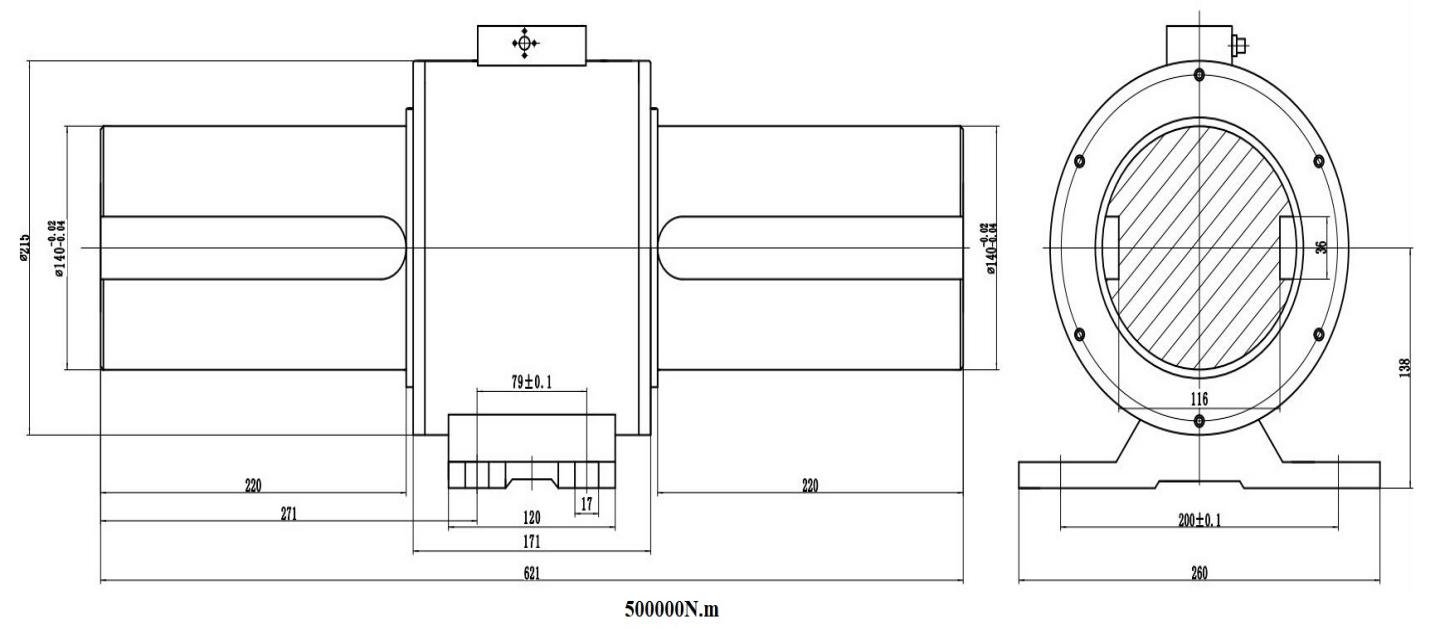

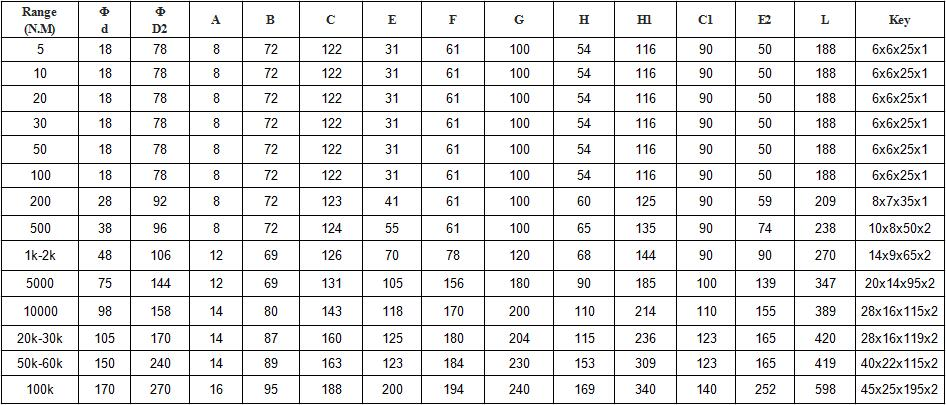

Dimension:
Application:
1.Test of torque and power of motor, engine, internal combustion engine and other rotary force equipment;
2.Test of torque and power of fan, water pump, gear box, torque wrench;
3.Test of torque and power of railway locomotive, automobile, tractor, airplane, ship, mining machinery;
4.It can be used to detect the torque and power in the sewage treatment system;
5.It can be used to make viscosimeter;
6.It can be used in process industry;

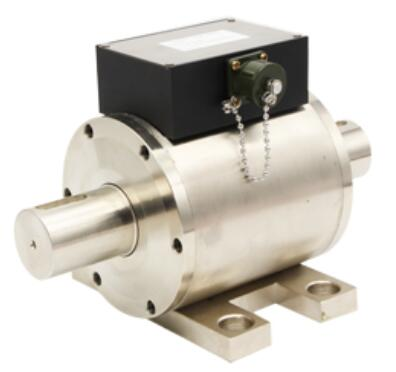

Product name | LCT001 Dynamic Rotary Torque Sensor Rotary Torque Sensors Rotary Torque Transducer |
Brand | SAINTBOND |
Market | All over the world |
Features | High precision and stable performance |
Advantage | 0EM/ODM |
Sample Lead Time | 5~ 40Days |
Sample price | The price is different according to product capacity |
Custom Design | Welcome |
Form of sale | Factory supply |
Product Description:
1.Dynamic torque sensor type;
2.Non-contact;
3.Range: 5-100000N.m;
4.Application: Test of torque and power in many different fields;
Specifications:
Torque accuracy | <±0.5 % F·S, <±0.25 % F·S, <±0.1 % F·S(Optional) |
Frequency response | 100μs |
The nonlinear | <±0.1 % F·S |
Repeatability | <±0.1% F·S |
Return difference | <0.1 % F·S |
Zero time drift | <0.2 % F·S |
Zero temperature drift | <0.2 % F·S /10℃ |
Using temperature | -10 ~ 50℃ |
Storage temperature | -40 ~ 70℃ |
Dimension:
Application:
1.Test of torque and power of motor, engine, internal combustion engine and other rotary force equipment;
2.Test of torque and power of fan, water pump, gear box, torque wrench;
3.Test of torque and power of railway locomotive, automobile, tractor, airplane, ship, mining machinery;
4.It can be used to detect the torque and power in the sewage treatment system;
5.It can be used to make viscosimeter;
6.It can be used in process industry;
Product name | LCT001 Dynamic Rotary Torque Sensor Rotary Torque Sensors Rotary Torque Transducer |
Brand | SAINTBOND |
Market | All over the world |
Features | High precision and stable performance |
Advantage | 0EM/ODM |
Sample Lead Time | 5~ 40Days |
Sample price | The price is different according to product capacity |
Custom Design | Welcome |
Form of sale | Factory supply |
