LCSW10W
SAINTBOND

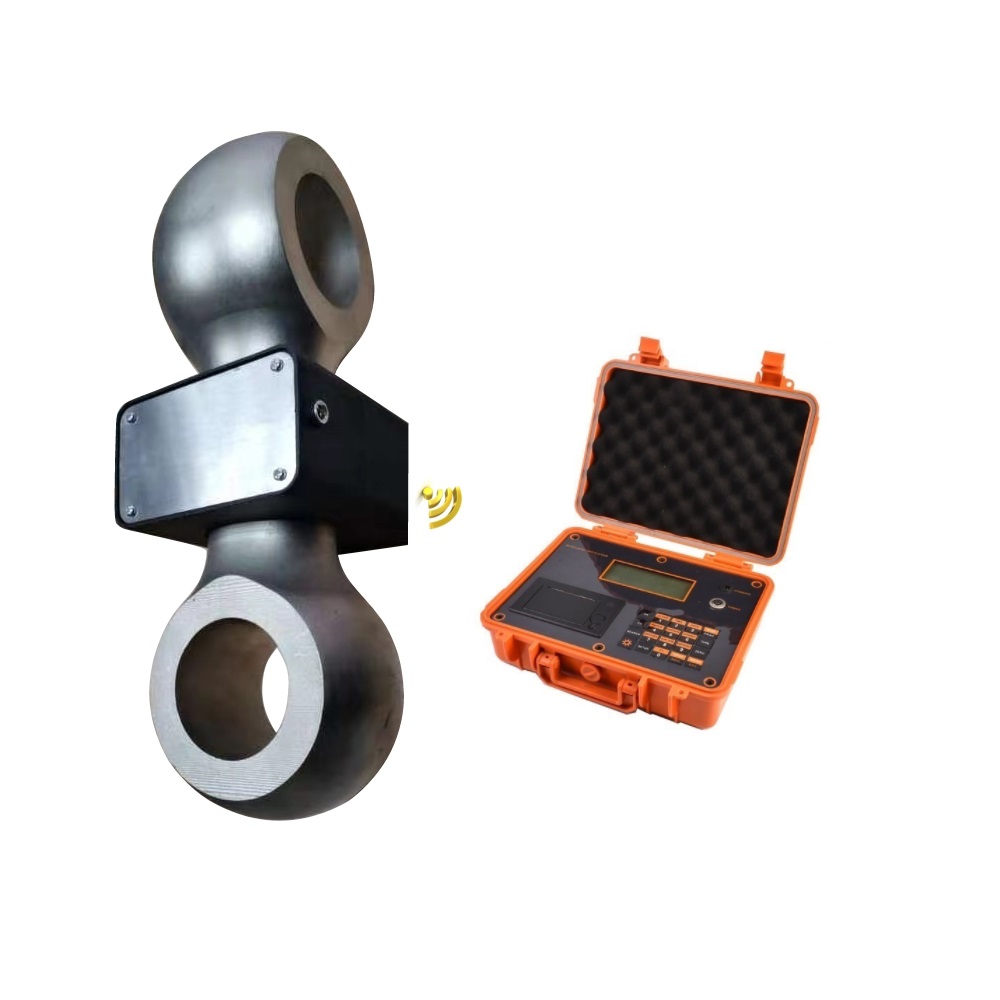

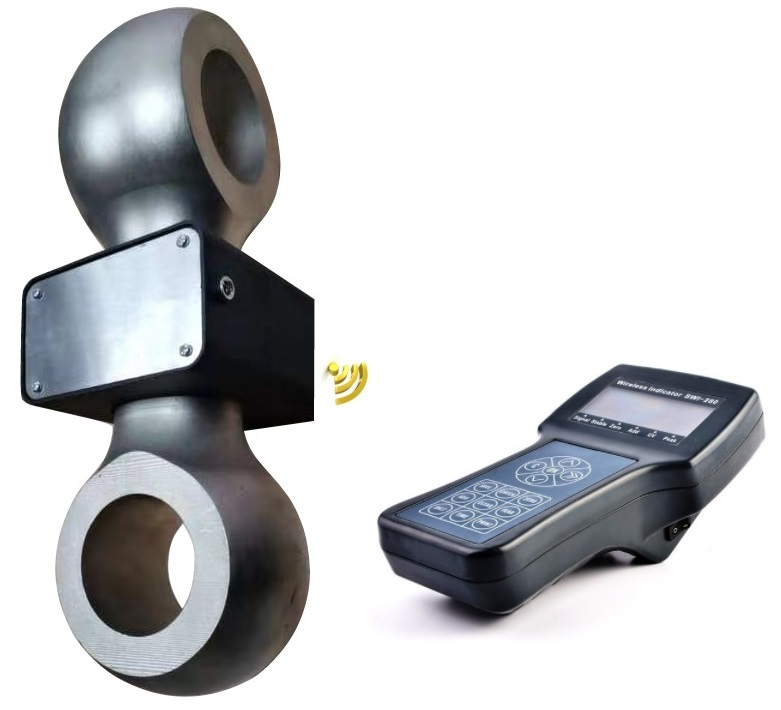

When headroom restrictions come into play, Saintbond Low Headroom Link is the perfect solution for accurate measurement of loads. Made with high strength alloy steel and rigorously tested, it works with industry standard shackles i.e. Crosby, Standard shackle etc. for applications such as weighing, load monitoring and lifting. It features a wireless technology range of 100m~500m and can lift loads of up to 30t.
Features and Benfeits:
lLow height;
lRange from 1t to 30t;
lHigh accuracy;
lLightweight and portable;
lAccepts standard shackles;
lConstructed from high strength alloy steel;;
Applications:
lEntertainment;
lRigging;
lLow headroom applications;
lHigh accuracy suspended weighing;

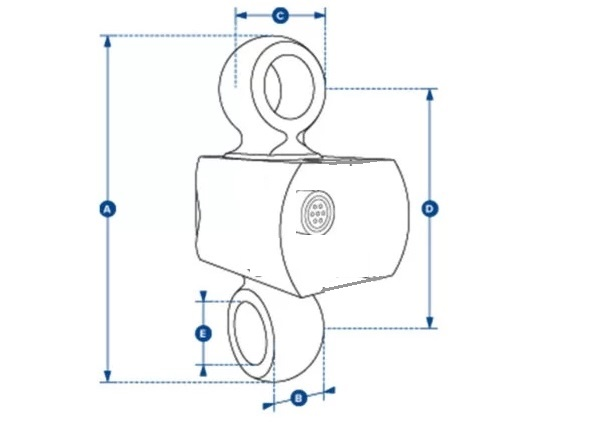

Dimensions:Unit: mm
Cap. | Resolution | A | B | C | D | ΦE | Weight |
(Ton) | (kg) | (mm) | (kg) | ||||
1t | 0.5 | 110 | 18 | 33 | 74 | 18 | 1 |
3t | 1 | 129 | 25 | 35 | 88 | 21 | 1.2 |
5t | 1 | 165 | 33 | 50 | 111 | 27 | 2 |
10t | 2 | 205 | 41 | 63 | 135 | 37 | 2.5 |
20t | 5 | 249 | 66 | 90 | 153 | 53 | 4 |
30t | 5 | 248 | 58 | 87 | 150 | 44 | 6.2 |
Technical Parameter：
Rated Load: | 1/3/5/10/20/30t | ||
Sensitivity: | (1.5±0.1%) m V/V | Operating Temp. Range | -30~+70℃ |
Combined Error: | ±0.02% F.S | Max.Safe Over Load: | 150%F.S |
Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 200%F.S |
Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
Input Resistance: | 750±5Ω | Element Material: | A:Alloy Steel, SS:Stainless Steel |
Output Resistance: | 702±2Ω | Cable: | Length=L:1m |
Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |

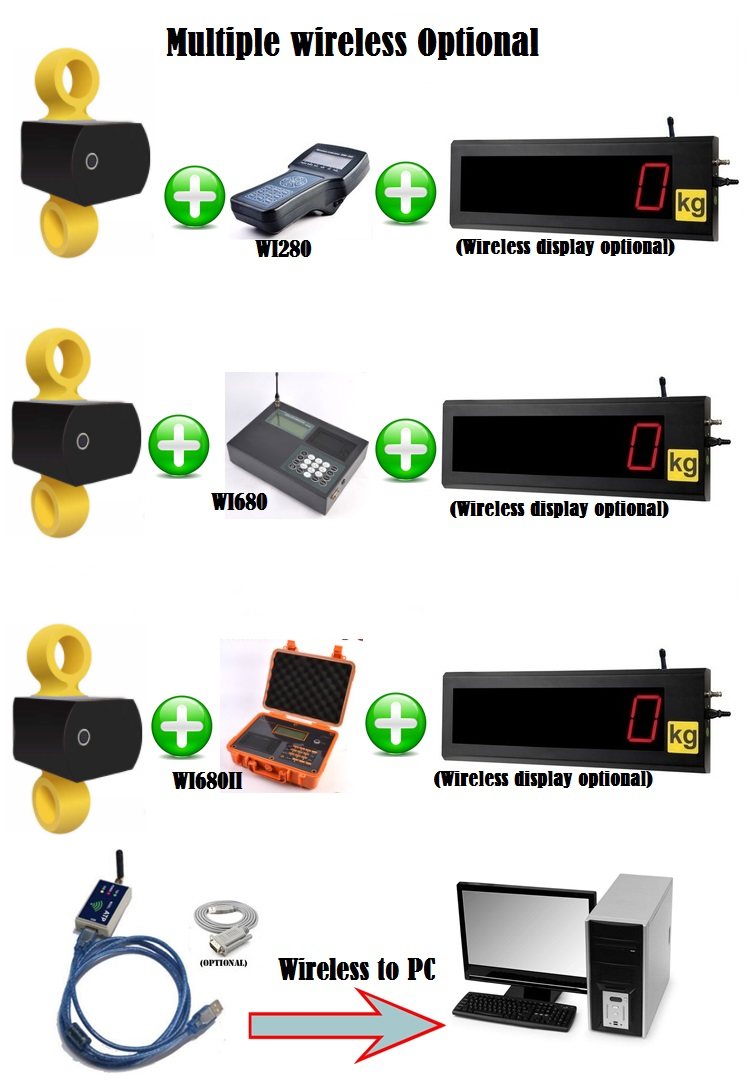

Wireless Load Links Typical Specifications:
Rate Load: | 1/3/5/10/20/30t | ||
Battery Type: | 18650 rechargeable batteries or polymer batteries (7.4v 2000 Mah) | ||
Proof Load: | 150% of rate load | Max. Safety Load: | 125% F.S. |
Ultimate Load: | 400% F.S. | Battery Life: | ≥40 hours |
Power On Zero Range: | 20% F.S. | Operating Temp.: | - 10℃ ~ + 40℃ |
Manual Zero Range: | 4% F.S. | Operating Humidity: | ≤85% RH under 20℃ |
Tare Range: | 20% F.S. | Remote Controller Distance: | Min.15m |
Stable Time: | ≤10seconds; | System Range: | 100~500m |
Overload Indication: | 100% F.S. + 9e | Telemetry Frequency: | 470mhz |

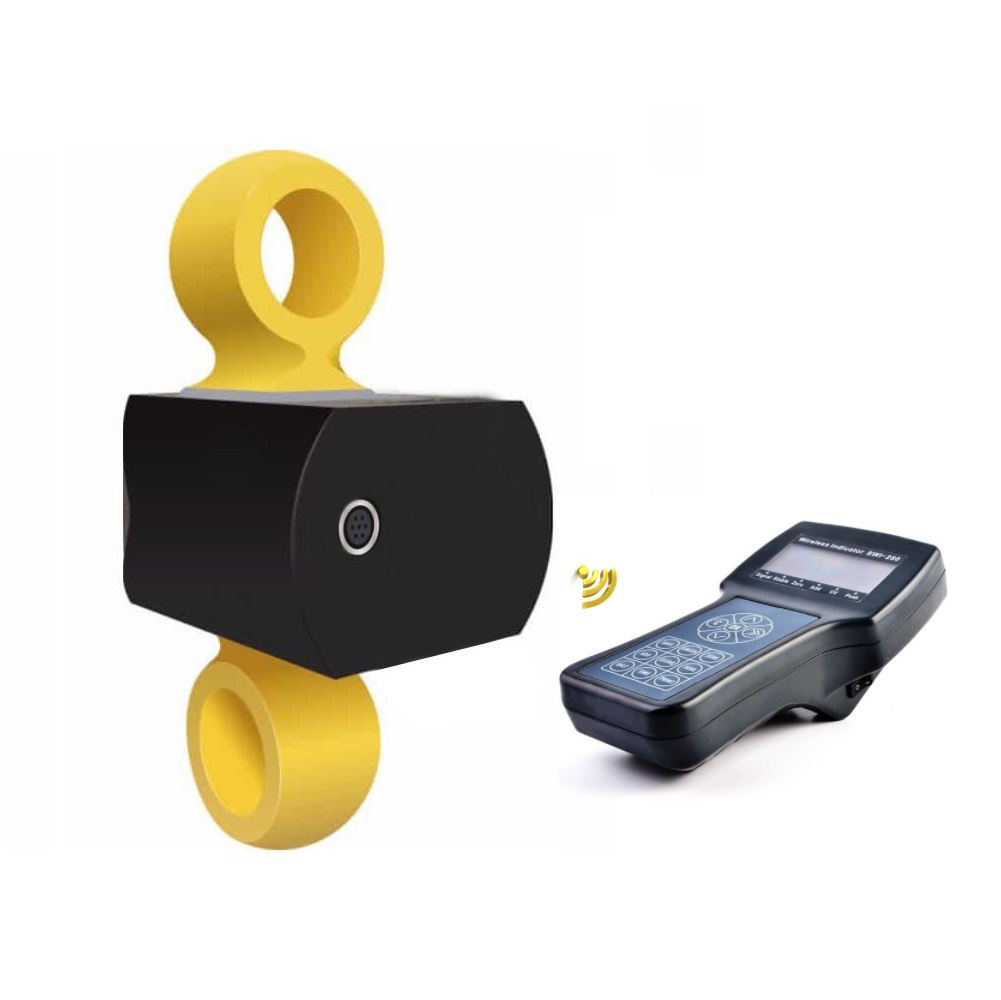

| Product name | LCSW10W Wireless Low Headroom Link Wireless Tension Link Load Cell with Display |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
