LC786
SAINTBOND
Product Description:

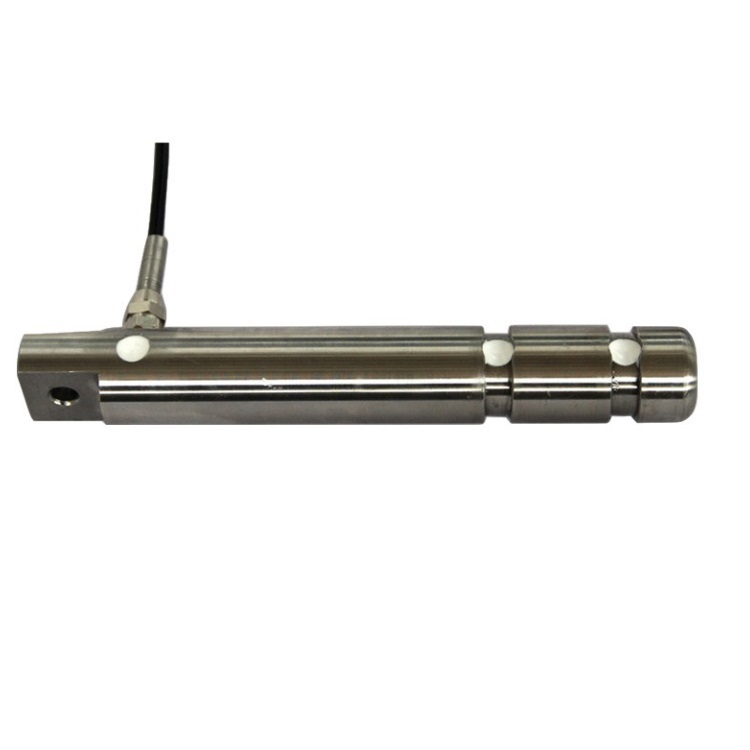

The LC786 pin load cell is made of stainless steel and offers maximum resistance to impacts and overloads. The operation of the LC786 load cell is double-ended shear beam. The LC786 cell is insensitive to side loads and it has been designed for shooting, weighing or anti-overhead systems for overhead cranes. The LC783 pin load cell can be customized.

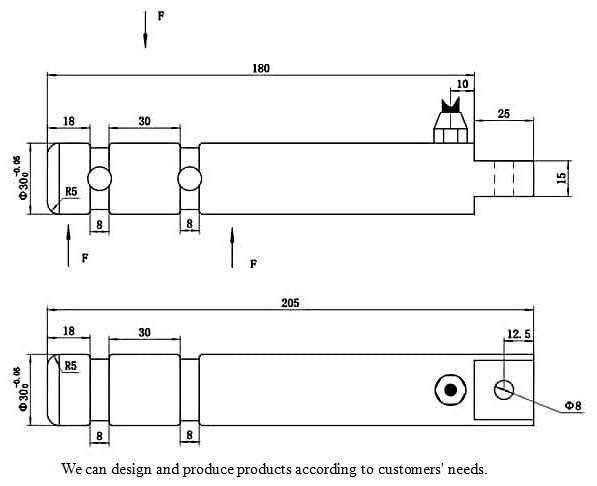

Dimension:in mm
Technical Parameter:
Rated Load: | 1~5t | ||
Operating Modes: | Tension/Compression / Tension & Compression | ||
Sensitivity: | 1.0~1.5mV/V±0.1 % | ||
Combined Error: | ±0.5% F.S | Operating Temp. Range: | -10~+70℃ |
Creep Error(30min): | ±0.05% F.S | Maximum Safe Over Load: | 120%F.S |
Zero Balance: | ±2% F.S | Ultimate Over Load:: | 200%F.S |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Recommend Excitation Vol.: | 10~12V DC |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
Input Resistance: | 380±30Ω/730±30Ω | Sealing Class: | IP67/68 |
Output Resistance: | 350±2Ω/700±3Ω | Element Material: | Alloy /Stainless Steel |
Insulation Resistance: | ≥5000MΩ | Cable: | Length=L:3m |
| Product name | LC786 Weight Plate Loading Pin Shaft Load Cell Pin Weight |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
