LC784
SAINTBOND
Product Description:

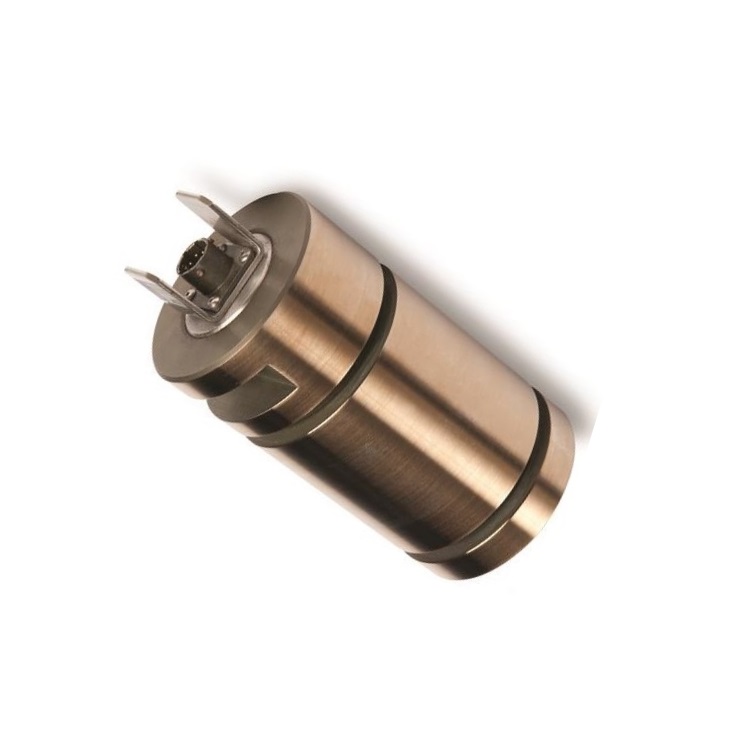

The LC784Series is an extremely rugged, high performance load pin. The LC784 Series load pins are designed to accurately measure compression and tension loads in capacities ranging from 0-2,000 lbs. to 0-500,000 lbs. The robust Dual Shear Beam design readily tolerates angular, end loading and side loading effects, with minimal sensitivity to these anomalies. Proprietary, axial “gun-bore” gauging techniques produce the benefits of relatively compact size and enhanced environmental sealing. The LC784 Series is Harsh Environment Sealed (IP67-Limited Immersion) by virtue of proprietary, multi-redundant barriers uniquely integrated to protect all internal components. The load pins are fitted with durable MS connectors. Companion cable/connector assemblies are available in a variety of lengths. The LC784Series offers unique mounting capabilities to address application-specific requirements. The attributes of the LC784 Series make it ideal for crane/lift/winch loading, mooring line tension monitoring, sprocket/pulley force measurements, specialty applications such as web tension and steel coil weighing, as well as for O.E.M. situations where a versatile, rugged and high performance solution is needed. The LC784 Series reliability produces exceptional performance yields under extraordinary conditions in aerospace, automotive, steel processing, off-shore, power generation, mining, material handling, wood/pulp/paper,
petrochemical and similarly demanding applications.
Dimension:in inch
Cap. | H | L1 | L2 | L3 | L4 | L5 | L6 | L7 | D | Weigh |
lbs | Dimensions (Inch) | lbs | ||||||||
3K | 0.25 | 4.5 | 2.00 | 0.31 | 1.00 | 0.91 | 0.60 | 0.20 | 0.75 | 2.0 |
10K | 0.25 | 4.75 | 2.00 | 0.31 | 1.00 | 1.13 | 0.63 | 0.20 | 1.00 | 2.5 |
15K | 0.25 | 5.63 | 2.00 | 0.38 | 1.38 | 1.44 | 0.81 | 0.27 | 1.25 | 3.0 |
25K | 0.25 | 6.13 | 2.00 | 0.50 | 1.63 | 1.56 | 0.94 | 0.27 | 1.50 | 3.7 |
50K | 0.38 | 6.63 | 2.00 | 0.56 | 2.00 | 1.63 | 1.00 | 0.27 | 2.00 | 5.7 |
75K | 0.50 | 7.63 | 2.00 | 0.63 | 2.50 | 1.88 | 1.25 | 0.27 | 2.50 | 10.5 |
100K | 0.50 | 8.38 | 2.00 | 0.69 | 2.69 | 2.22 | 1.47 | 0.40 | 2.75 | 13.8 |
125K | 0.63 | 8.75 | 2.00 | 0.69 | 3.00 | 2.31 | 1.44 | 0.40 | 3.00 | 17.2 |
160K | 0.63 | 10.00 | 2.00 | 0.88 | 3.50 | 2.75 | 1.75 | 0.53 | 3.50 | 26.7 |
200K | 0.75 | 11.75 | 2.00 | 1.00 | 4.00 | 3.50 | 2.25 | 0.53 | 4.00 | 41.0 |
300K | 1.00 | 15.25 | 2.25 | 1.13 | 5.00 | 4.75 | 3.25 | 0.78 | 5.00 | 83.2 |
400K | 1.13 | 17.75 | 2.25 | 1.38 | 6.00 | 5.63 | 3.88 | 0.78 | 6.00 | 140.0 |
Technical Parameter:
Rated Load: | 3/10/15/25/50/75/100/125/160/200/300/400Klb | ||
Operating Modes: | Tension/Compression / Tension & Compression | ||
Sensitivity: | 2mV/V±0.1 % | ||
Combined Error: | ±0.5% F.S | Operating Temp. Range: | -10~+70℃ |
Creep Error(30min): | ±0.05% F.S | Maximum Safe Over Load: | 150%F.S |
Zero Balance: | ±2% F.S | Ultimate Over Load:: | 300%F.S |
Temp. Effect On Zero: | ±0.02% F.S/10℃ | Recommend Excitation Vol.: | 10~12V DC |
Temp. Effect On Span: | ±0.02% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
Input Resistance: | 350±5Ω | Sealing Class: | IP67/68 |
Output Resistance: | 350±3Ω | Element Material: | Alloy /Stainless Steel |
Insulation Resistance: | ≥5000MΩ | Cable: | Length=L:3m |
| Product name | LC784 Wireless Shaft Load Cell Pin Shackles 500kg Pin Type Load Cells |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
