LC779
SAINTBOND
Product Description:

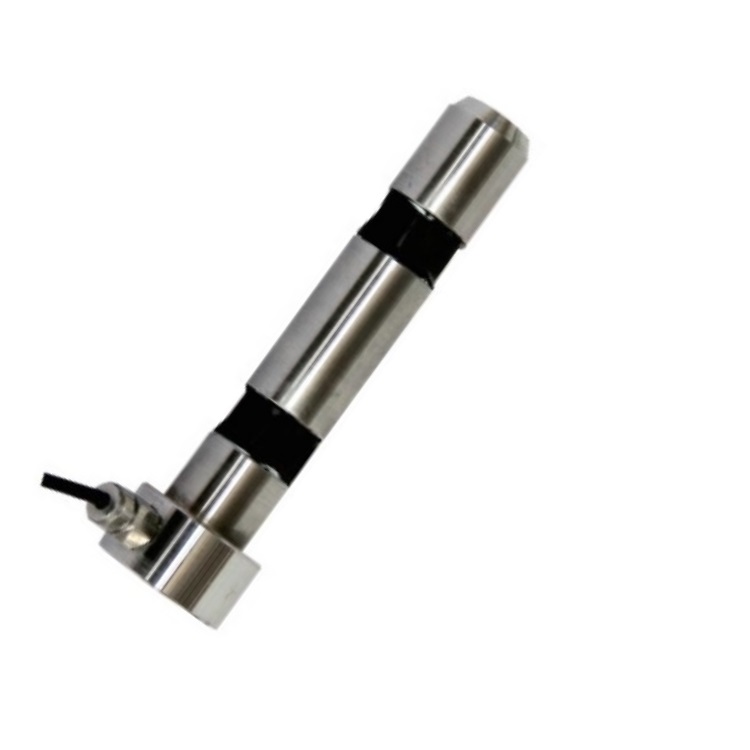

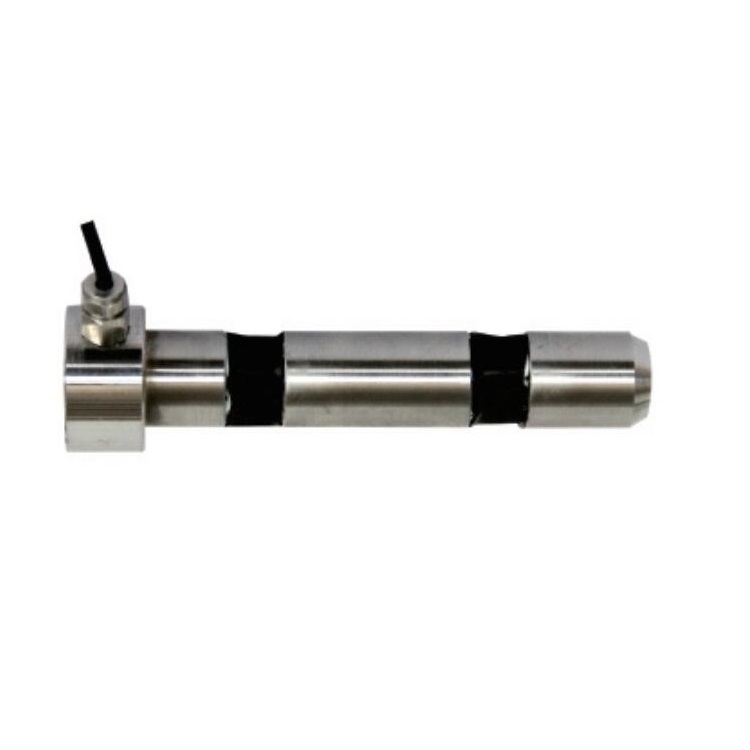

The pin shape double shear beam structure can replace the original pin shaft. It has the characteristics of high precision, anti-eccentric load and high long-term stability. It is widely used in all kinds of vehicles, hoisting mechanism, traction equipment and industrial automation measurement and control system.

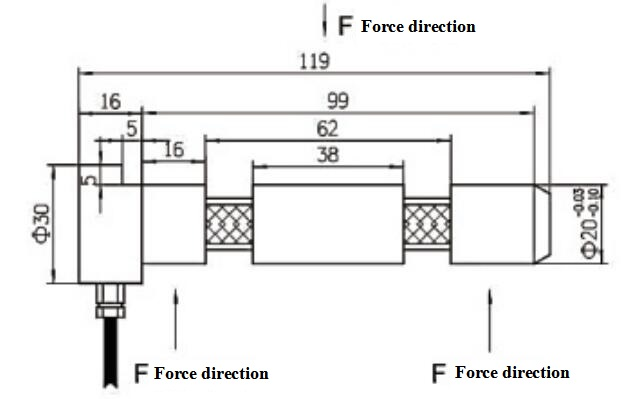

Dimension:
Specification:
Rated Load: | 50kg~200kg | Operating Temp.Range: | -30~+70℃ |
Sensitivity: | 1.0~1.5 m V/V | Max. Safe Over Load: | 150%F.S |
Combined Error: | ±0.5% F.S | Ultimate Over Load: | 400%F.S |
Creep Error(30min): | ±0.05% F.S | Recommend Excitation Vol.: | 10~12V DC |
Zero Balance: | ±1% F.S | Max. Excitation Vol.: | 15V DC |
Temp. Effect On Zero: | ±0.05% F.S/10℃ | Sealing Class: | IP67 |
Temp. Effect On Span: | ±0.05% F.S/10℃ | Element Material: | Alloy / Stainless Steel |
Input Resistance: | 730Ω±30Ω/350±30Ω | Cable: | Length=L:0.5m |
Output Resistance: | 700Ω±3Ω/350±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+), Black(Input-),White(Output-) |
| Product name | LC779 Customized Shear Pin Load Cell Design Load Measuring Pin |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
