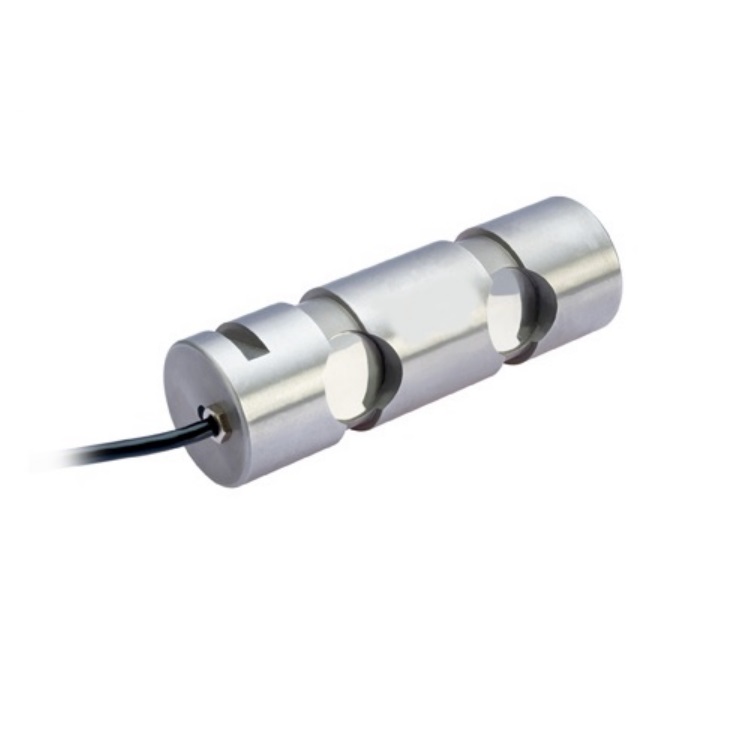

LC775 Load Pin Calibration Wireless Load Pin Sensor 2/3t

Availability:
Quantity:
  • LC775
  • SAINTBOND

Load Cell

LC775-4

Product Description:

Stainless steel material, high strength, good load tolerance, suitable for severe environment. Temperature compensation technique ensures the high accuracy in different environment. Custom design to meet different applications. Well sealed for most industrial environments. Used as replacement for exiting shafts. The protection class is IP67, it can be used in harsh environment. Used for crane load monitoring; Hydraulic cylinder force measuring; Anti-tilting at forklift trucks; Tool monitoring for CNC machines; Load measuring and monitoring at sailing boat; Overload protection for transmission parts in elevators, cranes, hoisting gears, winches, vehicles, forklifts and other construction machinery etc.

Application:

Crane load monitoring; Hydraulic cylinder force measuring;

Anti-tilting at forklift trucks;

Tool monitoring for CNC machines;

Load measuring and monitoring at sailing boat

Overload protection for transmission parts in elevators, cranes, hoisting gears, winches, vehicles, forklifts and other construction machinery etc.

Dimension:

LC775

Specification:

Rated Load:

2/3t

Operating Temp.Range:

-30~+70℃

Sensitivity:

(1.0±0.1%) m V/V

Maximum Safe Over Load:

150%F.S

Combined Error:

±0.5% F.S

Ultimate Over Load:

400%F.S

Creep Error(30min):

±0.05% F.S

Recommend Excitation Vol.:

10~12V DC

Zero Balance:

±1% F.S

Maximum Excitation Vol.:

15V DC

Temp. Effect On Zero:

±0.05% F.S/10℃

Sealing Class:

IP67

Temp. Effect On Span:

±0.05% F.S/10℃

Element Material:

Alloy / Stainless Steel

Input Resistance:

750Ω±20Ω

Cable:

Length=L:5m~16m

Output Resistance:

700Ω±3Ω

Citation:

GB/T7551-2008/ OIML R60

Insulation Resistance:

≥5000MΩ

Mode Of Connection:

Red(Input+),Green(Output+),

Black(Input-),White(Output-)


圣邦网站1详情页_05

Product name LC775 Load Pin Calibration Wireless Load Pin Sensor
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
