LC772
SAINTBOND

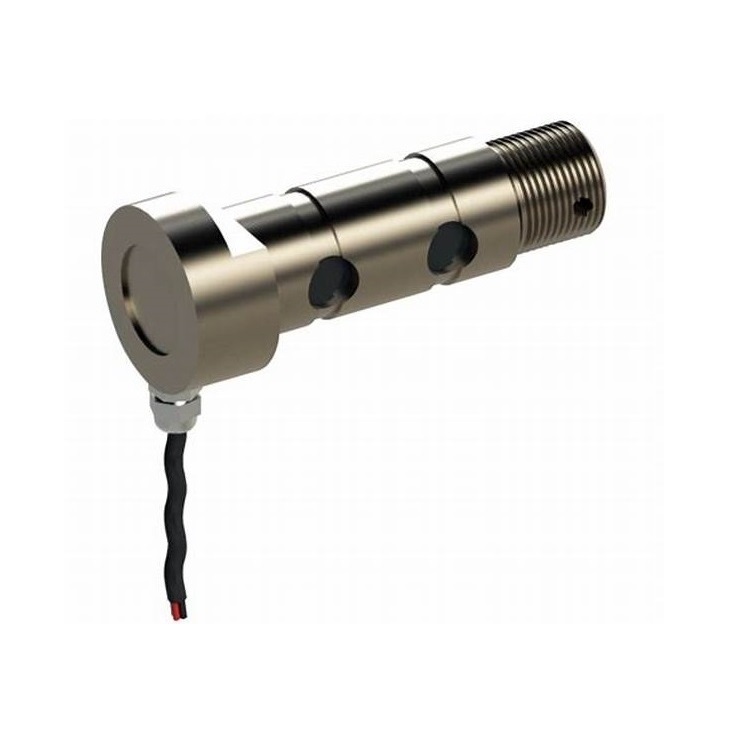

Product Description:
LC772 Load Pin is a high accuracy cylindrical shape stainless steel or alloy steel double shear beam load cell,applications in crane scale,conveyors,high capacity storage bins and mobile weighing. Production of desired sizes and capacity,Standart Output is mV/V , Option:4-20mA ,0-10V , RS485 output and Wireless Load Pin and force sensor measurement systems manufactured are renowned for measurement that achieves high accuracy, and is safe, reliable and stable.

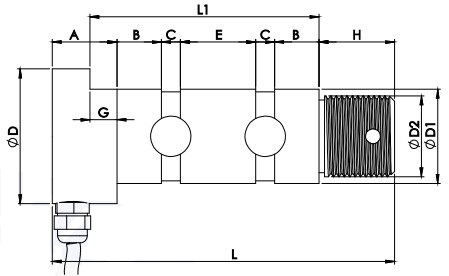

Dimension:
Cap. | L | L1 | D | D1 | D2 | A | B | C | E | G | H |
2t | 99 | 62 | 35 | 25 | M22 | 24 | 13 | 6 | 14 | 10 | 23 |
3t | 113 | 75 | 40 | 30 | M27 | 24 | 13 | 6 | 27 | 10 | 24 |
5t | 127 | 85 | 50 | 35 | M30 | 24 | 16.5 | 7 | 28 | 10 | 28 |
7.5t | 134 | 98 | 50 | 41 | M30 | 16 | 20 | 8 | 32 | 10 | 30 |
Specification:
Rated Load: | 1~200t | Operating Temp.Range: | -30~+70℃ |
Sensitivity: | (1.0±0.1%) m V/V | Maximum Safe Over Load: | 150%F.S |
Combined Error: | ±0.5% F.S | Ultimate Over Load: | 400%F.S |
Creep Error(30min): | ±0.05% F.S | Recommend Excitation Vol.: | 10~12V DC |
Zero Balance: | ±1% F.S | Maximum Excitation Vol.: | 15V DC |
Temp. Effect On Zero: | ±0.05% F.S/10℃ | Sealing Class: | IP67 |
Temp. Effect On Span: | ±0.05% F.S/10℃ | Element Material: | Alloy / Stainless Steel |
Input Resistance: | 400Ω±20Ω | Cable: | Length=L:5m~16m |
Output Resistance: | 350Ω±3Ω | Citation: | GB/T7551-2008/ OIML R60 |
Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+), Black(Input-),White(Output-) |
Product name | LC772 Shear Pin Type Load Cell Appliations Shackle Load Pin for Sheaves |
Brand | SAINTBOND |
Market | All over the world |
Features | High precision and stable performance |
Advantage | 0EM/ODM |
Sample Lead Time | 5~ 40Days |
Sample price | The price is different according to product capacity |
Custom Design | Welcome |
Form of sale | Factory supply |
