LC771
SAINTBOND
Load pins are widely used for overload protection in hoisting equipment,mooring devices, winches, coupling devices, construction machinery, etc.They are interchangeable with shaft pins,thus can be easily integrated into existing system and get measuring job done. Custom design service makes sure our load pins will fit your applications perfectly.
Dimensions：Unit:mm
Cap.(t) | A | B | Dia.C | Dia.D | E | F |
0.5/1/2 | 13.5 | 31 | 44 | 25 | 4.5 | 6.5 |
3/5 | 18 | 47 | 44 | 35 | 6 | 6.5 |
10 | 27 | 66 | 50 | 50 | 7 | 8.5 |
20 | 32.5 | 90 | 65 | 65 | 9.5 | 8.5 |
30 | 40 | 100 | 75 | 75 | 10.5 | 10.5 |
50 | 49 | 117 | 85 | 85 | 12.5 | 10.5 |
Technical Parameter:
Rated Load: | 0.5~50t | Operating Temp.Range: | -30~+70℃ |
Sensitivity: | (1.0±0.1%) m V/V | Maximum Safe Over Load: | 150%F.S |
Combined Error: | ±0.5% F.S | Ultimate Over Load: | 400%F.S |
Creep Error(30min): | ±0.05% F.S | Recommend Excitation Vol.: | 10~12V DC |
Zero Balance: | ±1% F.S | Maximum Excitation Vol.: | 15V DC |
Temp. Effect On Zero: | ±0.05% F.S/10℃ | Sealing Class: | IP67 |
Temp. Effect On Span: | ±0.05% F.S/10℃ | Element Material: | Alloy / Stainless Steel |
Input Resistance: | 400Ω±20Ω | Cable: | Length=L:5m~16m |
Output Resistance: | 350Ω±3Ω | Citation: | GB/T7551-2008/ OIML R60 |
Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+), Black(Input-),White(Output-) |
Note:load cells are available with optional 0~5Vdc to 0~10Vdc or 4 mA to 20 mA output.

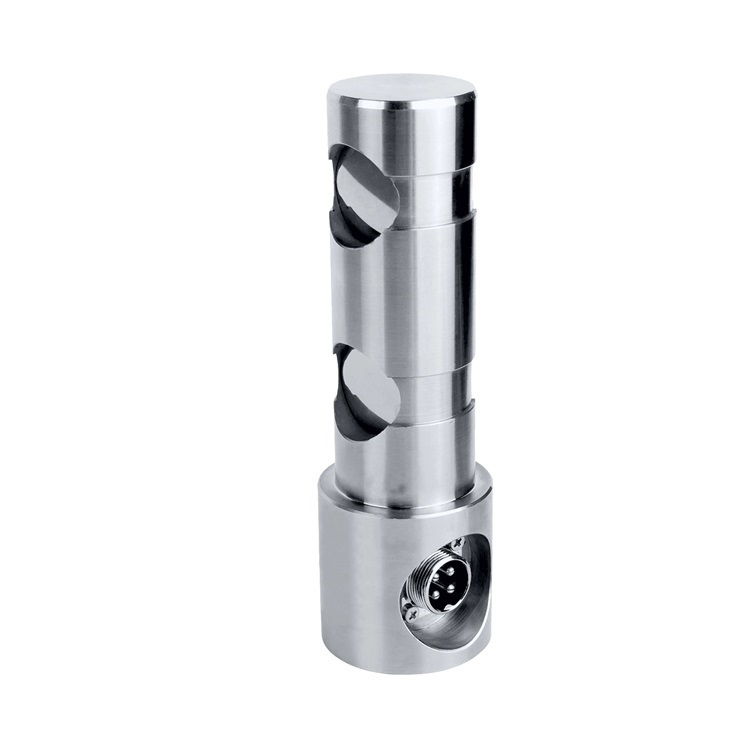

| Product name | LC771 Load Pin Application Load Pin Cell Application for Pulleys |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
