LC770
SAINTBOND

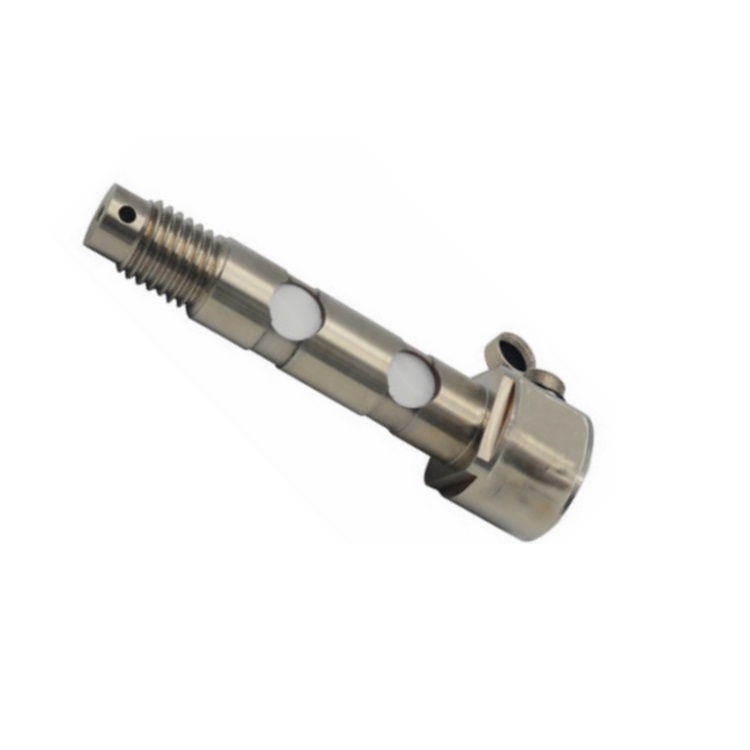

Load pin load cell LPG is made of stainless steel based on strain gauge technology,model LPG is available in 4t / 10t / 20t / 30t capacities with unamplified mV/V output from the wheatstone bridge.Pin type force sensors are widely used for overload protection in hoisting equipment,mooring devices, winches, coupling devices, construction machinery, etc.They are interchangeable with shaft pins,thus can be easily integrated into existing system and get the measurement done. Tailor-made service is available at we to meet requirements of different applications.

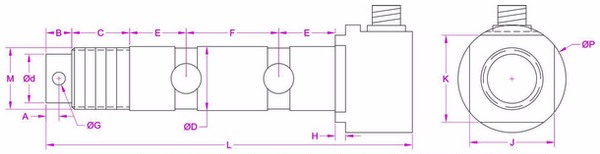

Dimensions：Unit:mm
Cap. | A | B | C | D | E | F | G | H | J | K | L | M | d | P |
(Ton) | (mm) | |||||||||||||
1~4 | 5 | 10 | 22 | 30 | 22 | 36 | 5 | 4 | 33 | 34 | 143 | M26 | 19 | 42 |
10 | 7.5 | 15 | 32 | 45 | 32 | 51 | 8 | 4 | 41 | 42 | 192 | M42 | 25 | 52 |
20 | 10 | 20 | 46 | 55 | 46 | 73 | 11 | 6 | 54 | 55 | 266 | M52 | 42 | 63 |
30 | 12.5 | 25 | 63 | 70 | 65 | 105 | 15 | 6 | 74 | 76 | 358 | M68 | 62 | 88 |
Contact us for other capacity or design according to your requirement; | ||||||||||||||
Technical Parameter:
Rated Load: | 1/2/3/4/10/20/30t | Operating Temp.Range: | -30~+70℃ |
Sensitivity: | (1.0±0.1%) m V/V | Maximum Safe Over Load: | 150%F.S |
Combined Error: | ±0.5% F.S | Ultimate Over Load: | 400%F.S |
Creep Error(30min): | ±0.05% F.S | Recommend Excitation Vol.: | 10~12V DC |
Zero Balance: | ±1% F.S | Maximum Excitation Vol.: | 15V DC |
Temp. Effect On Zero: | ±0.05% F.S/10℃ | Sealing Class: | IP67 |
Temp. Effect On Span: | ±0.05% F.S/10℃ | Element Material: | Alloy / Stainless Steel |
Input Resistance: | 400Ω±20Ω | Cable: | Length=L:5m~16m |
Output Resistance: | 350Ω±3Ω | Citation: | GB/T7551-2008/ OIML R60 |
Insulation Resistance: | ≥5000MΩ | Mode Of Connection: | Red(Input+),Green(Output+), Black(Input-),White(Output-) |
| Product name | LC770 Cabled Or Wireless Standard Loadpin Custom Made Loading Load Pin |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
