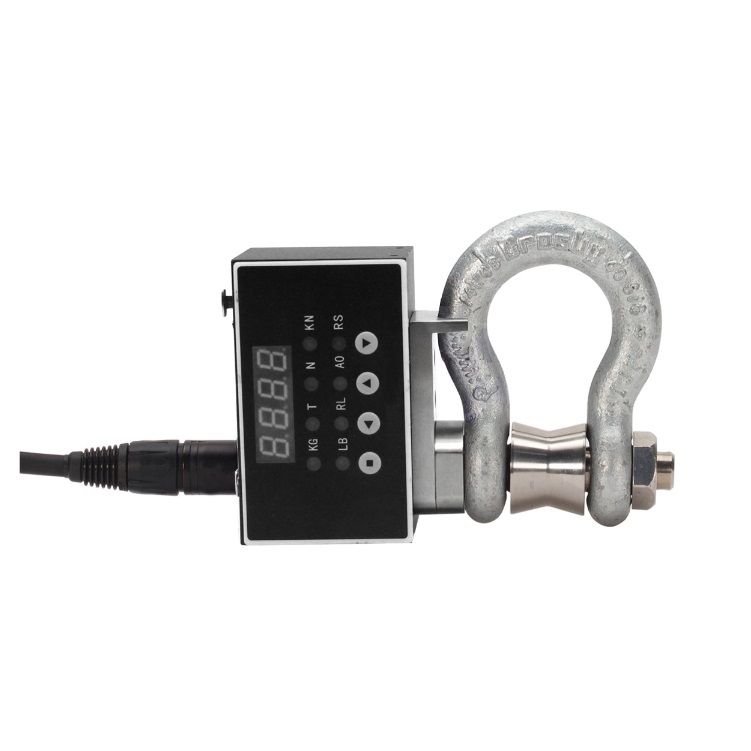

LC7501E
SAINTBOND
(With normal shackle version)
(With crosby shackle version)
Product Description:
The shackle pin load cell, it’s innovative design means there is no loss of headroom as the load cell is built right into the shackle, a direct replacement for the famous ‘red pin’.
SAINTBOND’s Loadshackle (WLS) provides the perfect solution to limited headroom or super heavy lift projects. Available from stock in capacities from 3.25t to 1200t.
Features:
◎Shackle design means no loss of headroom;
◎On board load readout in a variety of display units are available;
◎The Shackle Pin Load Cell shall have 4:1,5:1,6:1,8:1 various safety factors are available;
Dimension:in mm
Shackle Pin Load Cell,3.25 Metric Ton:
Shackle Pin Load Cell, 4.75 Metric Ton:
Note:
lAll the above dimensions are for reference only. The real dimensions are subject to the actual products!
lAll capacity dimension subject to the actual delivery size;
Load Links Typical Specifications:
Rate Load: | 0.5t-1250t | Tare Range: | 20% F.S. |
Sensitity: | 1.0mV/V | Overload Indication: | 100% F.S.+9e |
Proof Load: | 150% of rate load | Max. Safety Load: | 125% F.S. |
Ultimate Load: | 400% F.S. | Stable Time: | ≤10seconds; |
Power On Zero Range: | 20% F.S. | Operating Temp.: | - 10℃~+ 40℃ |
Manual Zero Range: | 4% F.S. | Operating Humidity: | ≤85% RH under 20℃ |
| Product name | LC7501E Load Pins Load Cell Shackle Pin Load Cell 0.5t-1250t |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |

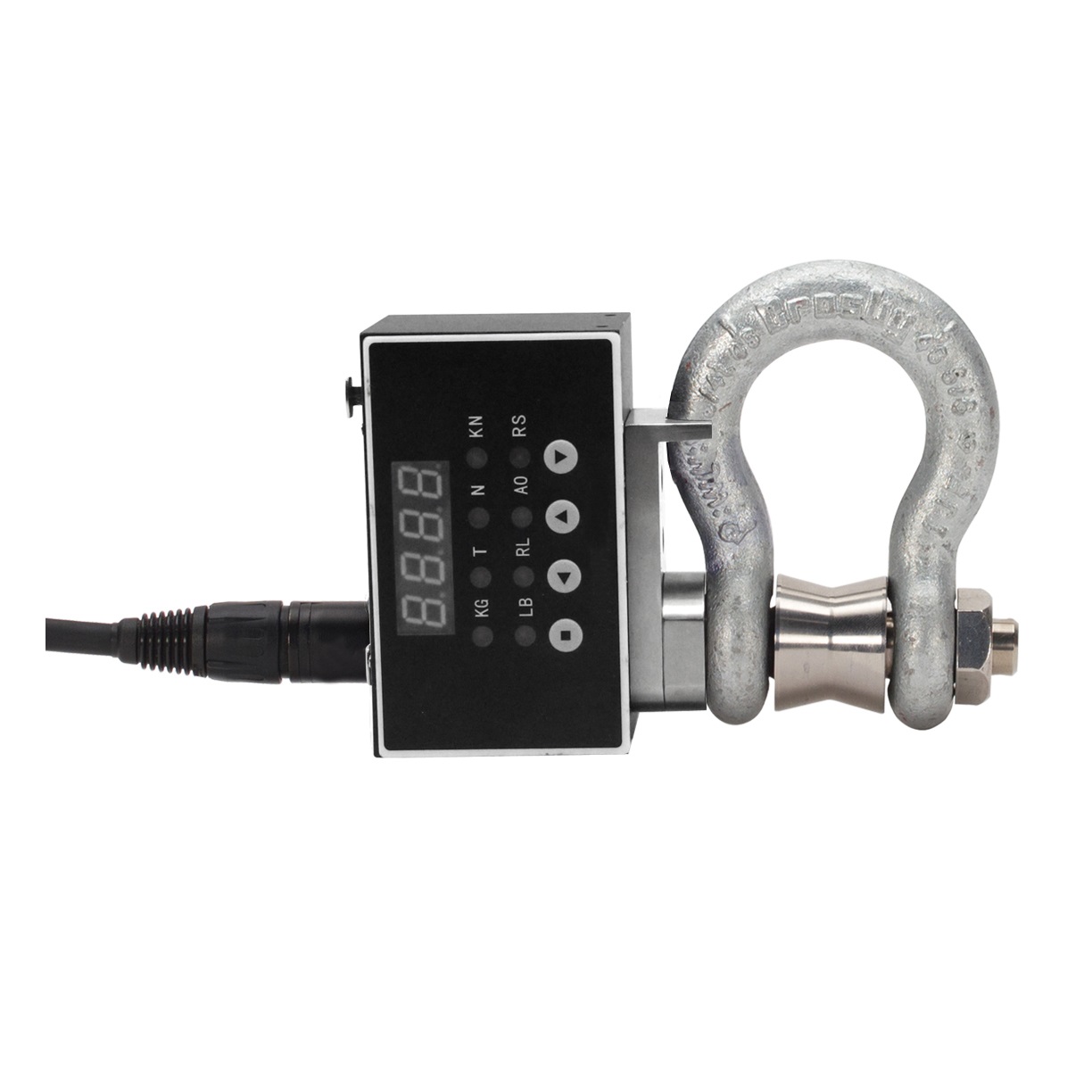

(With normal shackle version)
